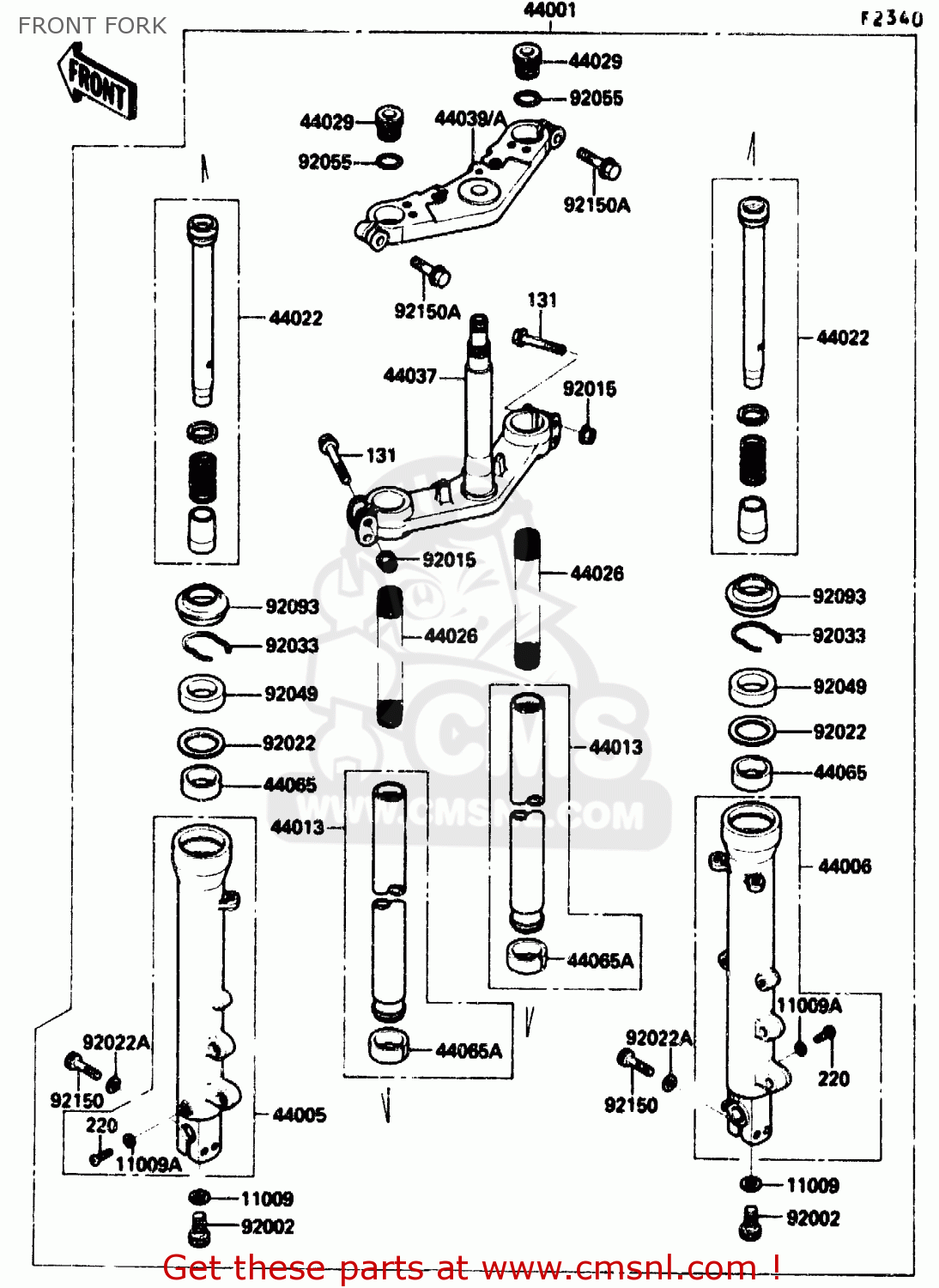

FRONT FORK

ref

part #

description

quantity

11009

110091553
ref: 11009

GASKET,FORK DRAIN PLU (NAS)

€ 3.00

11009A

44045002
ref: 11009A

GASKET,FORK DRAIN PLU (NAS)

€ 3.00

44001

44001168810
ref: 44001

FORK-FRONT,BLACK

€ 3,241.50

44005

44005128310
ref: 44005

PIPE-LEFT FORK OUTER,

€ 190.00

44006

44006128010
ref: 44006

PIPE-RIGHT FORK OUTER

€ 169.00

44013

440131281
ref: 44013

PIPE-FORK INNER

€ 186.00

44022

440221231
ref: 44022

CYLINDER-FORK

€ 37.00

44026

440261400
ref: 44026

SPRING-FRONT FORK

€ 52.00

44029

440291133
ref: 44029

SEAT-FORK SPRING

€ 40.00

44037

440371233
ref: 44037

HOLDER-FORK UNDER

€ 340.00

44039A

4403911741A
ref: 44039A

HOLDER-FORK UPPER,M.B

€ 114.50

44065

440651085
ref: 44065

BUSHING-FRONT FORK

€ 21.00

44065A

440651086
ref: 44065A

BUSHING-FRONT FORK,IN

€ 21.00

92002

920021650
ref: 92002

BOLT,FORK DRAIN

€ 10.00

92015

920151485
ref: 92015

NUT,FLANGED,8MM

€ 3.50

92022

920221298
ref: 92022

WASHER,FORK OUTER TUB

€ 5.50

92022A

920221598
ref: 92022A

WASHER

€ 4.50

92033

920331036
ref: 92033

CIRCLIP

€ 4.00

92049

920491273
ref: 92049

SEAL-OIL,FORK OUTER

€ 13.00

92055

920551321
ref: 92055

RING-O

€ 1.00

92093

920931232
ref: 92093

SEAL,FORK OUTER TUBE

€ 14.00

92150

921501194
ref: 92150

BOLT,SOCKET,8X40

€ 2.00

92150A

921501210
ref: 92150A

BOLT,FLANGED,10X45

€ 6.00

131

131G0850
ref: 131

BOLT-FLANGED

€ 1.00

220

220E0408
ref: 220

SCREW-PAN HEAD,4X8

€ 2.50
