RADIATOR
ZX1000B1 1988 EUROPE UK FR AR GR IT NR SD

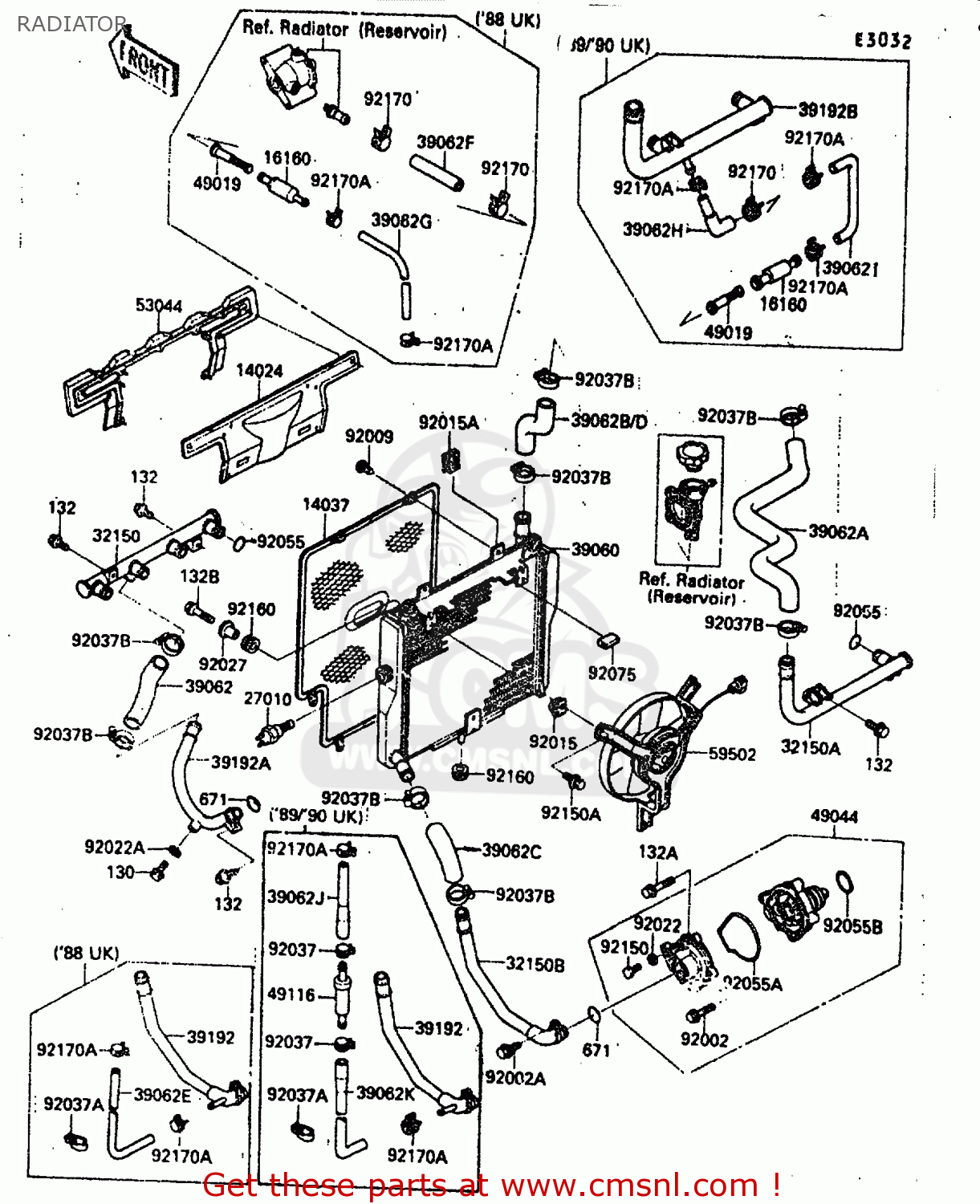

Radiator diagram ZX1000B1 1988 EUROPE UK FR AR GR IT NR SD
RADIATOR ZX1000B1 1988 EUROPE UK FR AR GR IT NR SD
×
prices are in EUR
ref
part #
description
quantity
14024
140241627
ref: 14024
COVER,HEAT
€ 26.50
14037
140371101
ref: 14037
SCREEN
€ 52.50
16160
161601151
ref: 16160
UK
BODY,FILTER
€ 6.50
27010
270101202
ref: 27010
SWITCH,FAN
€ 74.00
32150
321021919
ref: 32150
PIPE,CYLINDER
€ 82.00
32150A
321021920
ref: 32150A
PIPE,HEAD
€ 69.50
32150A
321021920
ref: 32150A
PIPE,HEAD
€ 69.50
32150B
321021921
ref: 32150B
AR, EU, FR, GR, IT,
PIPE,RADIATOR-PUMP
€ 56.00
39060
390601081
ref: 39060
RADIATOR
€ 656.00
39062
390621276
ref: 39062
HOSE-COOLING,PUMP-CYL
€ 24.50
39062A
390621277
ref: 39062A
HOSE-COOLING,HEAD-THE
€ 46.50
39062B
390621278
ref: 39062B
AR, EU, FR, GR, IT,
HOSE-COOLING,THERMO-R
€ 12.50
39062C
390621279
ref: 39062C
HOSE-COOLING,RADIATOR
€ 14.50
39062D
390621294
ref: 39062D
UK
HOSE-COOLING
€ 12.50
39062E
390621295
ref: 39062E
UK
HOSE-COOLING
€ 8.50
39062F
390621297
ref: 39062F
UK
HOSE-COOLING
€ 4.00
39062G
390621298
ref: 39062G
UK
HOSE-COOLING
€ 5.50
39192
391921001
ref: 39192
UK
PIPE-WATER
€ 69.50
39192A
391921011
ref: 39192A
PIPE-WATER,PUMP-CYLIN
€ 56.00
49019
490191068
ref: 49019
UK
FILTER-FUEL
€ 4.00
49044
490441062
ref: 49044
PUMP-WATER
€ 252.50
53044
530441201
ref: 53044
TRIM
€ 31.50
59502
595021067
ref: 59502
FAN-ASSY
€ 558.50
92002
920021392
ref: 92002
BOLT,6X22
€ 3.00
92002A
920021571
ref: 92002A
BOLT,6X16
€ 4.00
92009
920091261
ref: 92009
SCREW,TAPPING,6MM
€ 2.00
92015
920151487
ref: 92015
NUT
€ 3.00
92015A
920151758
ref: 92015A
NUT
€ 4.50
92022
920221976
ref: 92022
WASHER,6.2X6.2X1.0
€ 4.00
92022A
92022304
ref: 92022A
WASHER,PLAIN
€ 2.50
92027
920271134
ref: 92027
COLLAR,FUEL TANK FITT
€ 7.00
92037A
920371608
ref: 92037A
UK
CLAMP
€ 5.50
92037B
920371985
ref: 92037B
CLAMP,COOLING HOSE
€ 7.50
92055
920551282
ref: 92055
RING-O
€ 3.00
92055A
920551423
ref: 92055A
RING-O,WATER PUMP INS
€ 6.00
92055B
920551424
ref: 92055B
RING-O,33.2X2.4
€ 4.00
92075
920751446
ref: 92075
DAMPER,SIDE COVER
€ 3.00
92150
920021391
ref: 92150
BOLT,6X10
€ 2.50
92150A
921501186
ref: 92150A
BOLT
€ 3.00
92160
921601007
ref: 92160
DAMPER
€ 3.50
92170
921701118
ref: 92170
UK
CLAMP
€ 5.00
92170A
921702042
ref: 92170A
UK
CLAMP
€ 1.00
130
130J0616
ref: 130
BOLT-FLANGED,6X16
€ 1.50
132
132J0612
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
132A
132J0640
ref: 132A
BOLT-FLANGED-SMALL
€ 3.00
132B
132J0825
ref: 132B
BOLT-FLANGED-SMALL
€ 2.50
671
671B2525
ref: 671
O RING,25MM
€ 3.00
