SEAT

ZG1200B2 VOYAGER XII 1988 USA CALIFORNIA CANADA

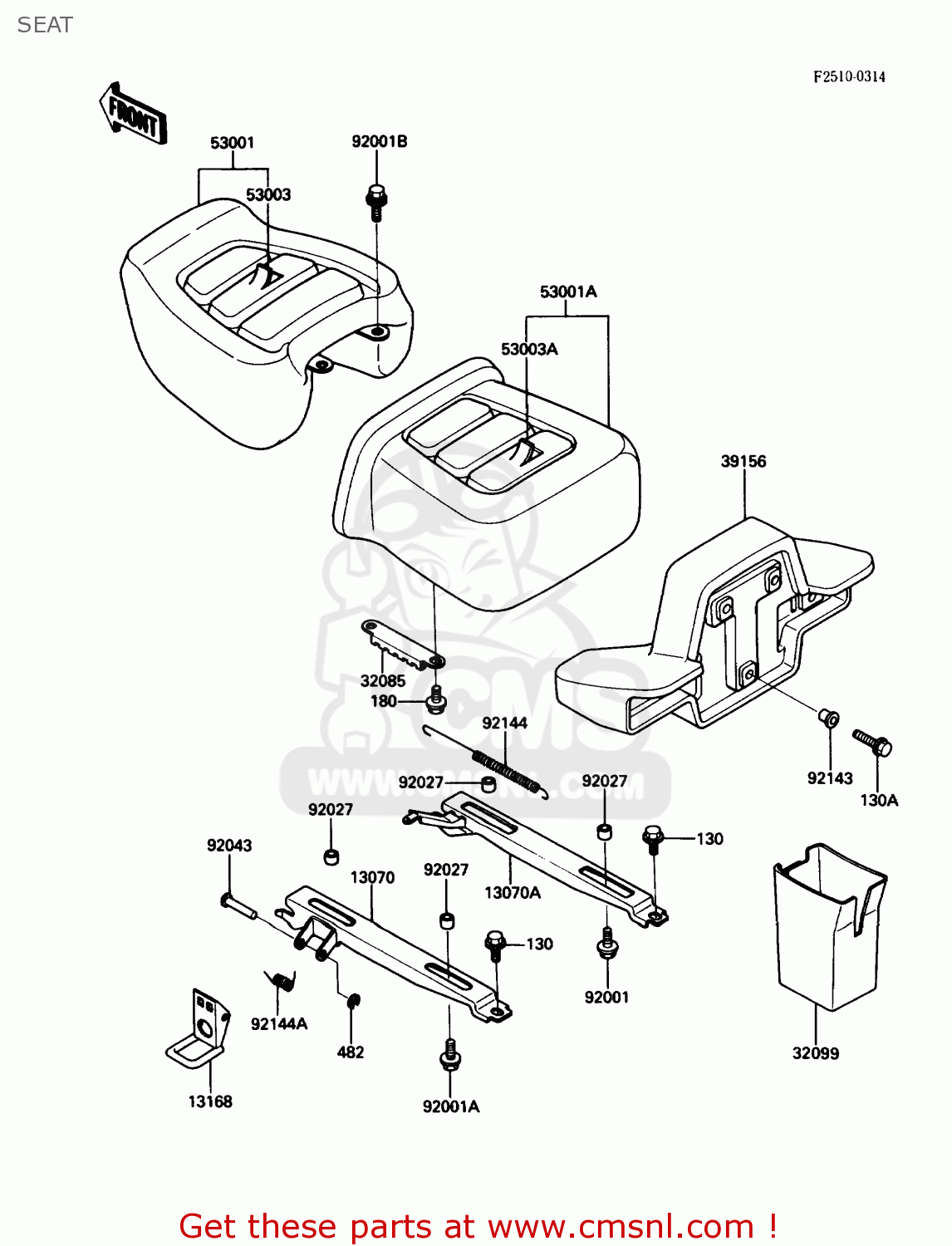

Seat diagram ZG1200B2 VOYAGER XII 1988 USA CALIFORNIA CANADA

SEAT ZG1200B2 VOYAGER XII 1988 USA CALIFORNIA CANADA
SEAT ZG1200B2 VOYAGER XII 1988 USA CALIFORNIA CANADA
SEAT ZG1200B2 VOYAGER XII 1988 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130B0610
ref: 130
BOLT,FLANGED,6X10
130B0610
€ 0.50
130A
130C0620
ref: 130A
BOLT-FLANGED,6X20
€ 2.50
180
180B0612
ref: 180
BOLT-UPSET-WS,6X12
€ 2.50
482
482L5000
ref: 482
CIRCLIP-TYPE-E,5MM
482L5000
€ 1.00
13070
130701147
ref: 13070
REAR SEAT GUIDE,LH
€ 23.50
13070A
130701148
ref: 13070A
REAR SEAT GUIDE,RH
€ 23.50
13168
131681302
ref: 13168
REAR SEAT LEVER
€ 10.00
32085
320851248
ref: 32085
SEAT STOPPER
€ 6.00
32099
320991091
ref: 32099
CASE,REAR AUDIO CONTR
€ 69.50
39156
391561061
ref: 39156
PAD
€ 222.00
53001
530011447
ref: 53001
SEAT ASSEMBLY,FRONT
€ 206.00
53001A
530011489
ref: 53001A
SEAT ASSEMBLY,REAR
€ 302.50
53003
530031153
ref: 53003
FRONT SEAT,LEATHER
€ 206.00
53003A
530031154
ref: 53003A
REAR SEAT,LEATHER
€ 206.00
92001
920011826
ref: 92001
BOLT,6X20
920011826
€ 2.50
92001A
920011860
ref: 92001A
BOLT,W/P,6X16
920011860
€ 2.50
92001B
920011862
ref: 92001B
BOLT,W/SP,6X14
920011862
€ 2.50
92027
92027164
ref: 92027
COLLAR,6.3X10X5
92027164
€ 3.50
92043
920431109
ref: 92043
PIN
€ 3.50
92143
921431025
ref: 92143
COLLAR,L=6.5
921431025
€ 4.00
92144
920811950
ref: 92144
SEAT RETURN SPRING
€ 6.00
92144A
921441038
ref: 92144A
SEAT LEVER SPRING
€ 2.50
