CYLINDER/PISTON

ZG1200B2 VOYAGER XII 1988 USA CALIFORNIA CANADA

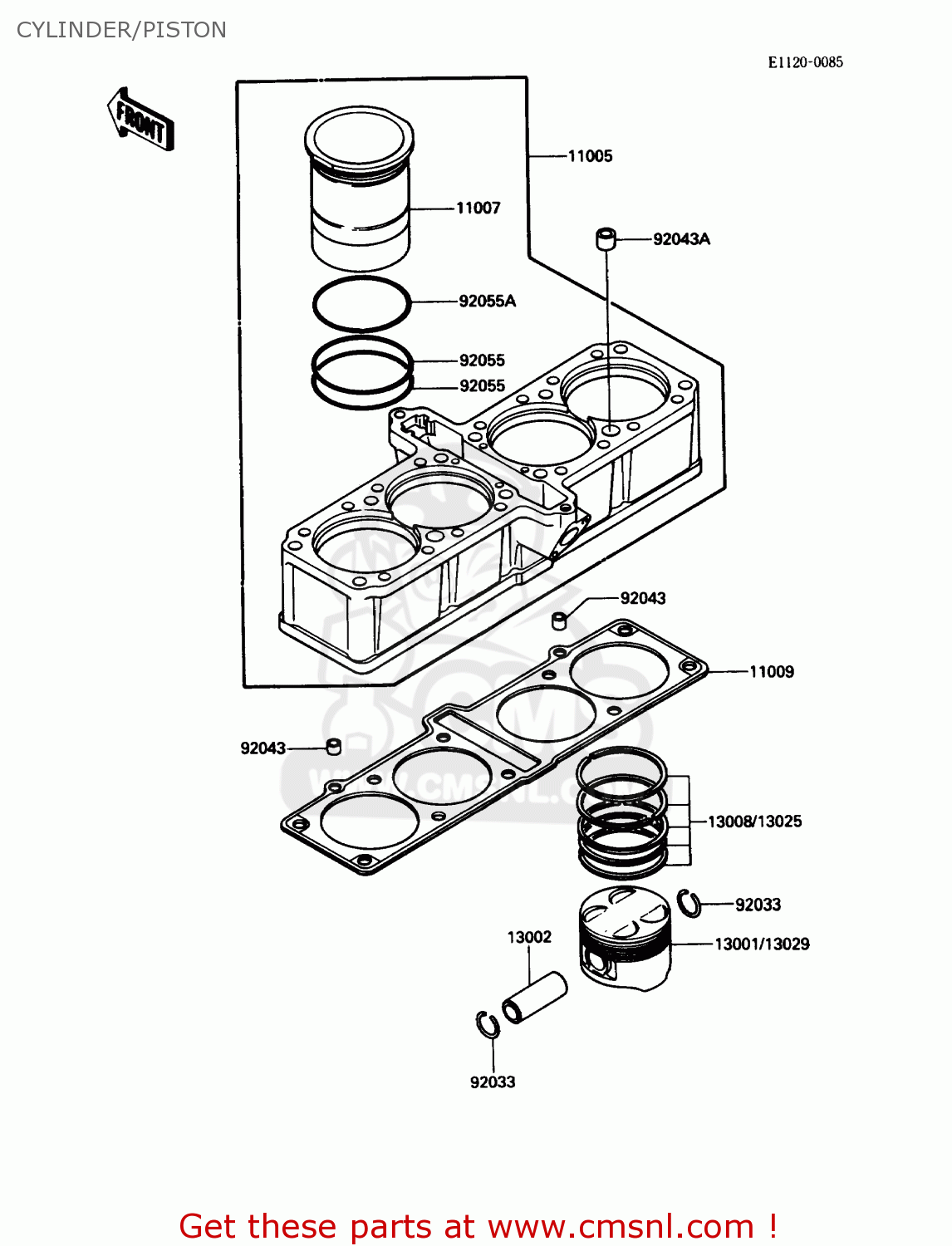

Cylinder/piston diagram ZG1200B2 VOYAGER XII 1988 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

11005

110051537
ref: 11005

ENGINE CYLINDER

€ 921.00

11007

110071084
ref: 11007

CYLINDER LINER

€ 77.00

11009

110091554
ref: 11009

GASKET,CYLINDER BASE (NAS)

€ 27.50

13001

130011222
ref: 13001

PISTON-ENGINE,STD

€ 36.00

13002

130021060
ref: 13002

PIN-PISTON

€ 16.50

13008

130081071
ref: 13008

RING-SET-PISTON,STD

€ 62.00

13025

130251070
ref: 13025

RING-SET-PISTON L,O/S

€ 46.50

13029

130291143
ref: 13029

PISTON-ENGINE L,O/S 0

€ 109.00

92033

920331207
ref: 92033

RING-SNAP

€ 1.50

92043

920431264
ref: 92043

PIN,DOWEL,8.2X10X14

€ 0.50

92043A

920431279
ref: 92043A

PIN,11.5X14X14

€ 3.00

92055

920551323
ref: 92055

RING-O, 84.4X2.4

€ 4.00

92055A

920551331
ref: 92055A

RING-O,82.5X2

€ 13.00
