FRONT HUB

ZG1200B2 VOYAGER XII 1988 USA CALIFORNIA CANADA

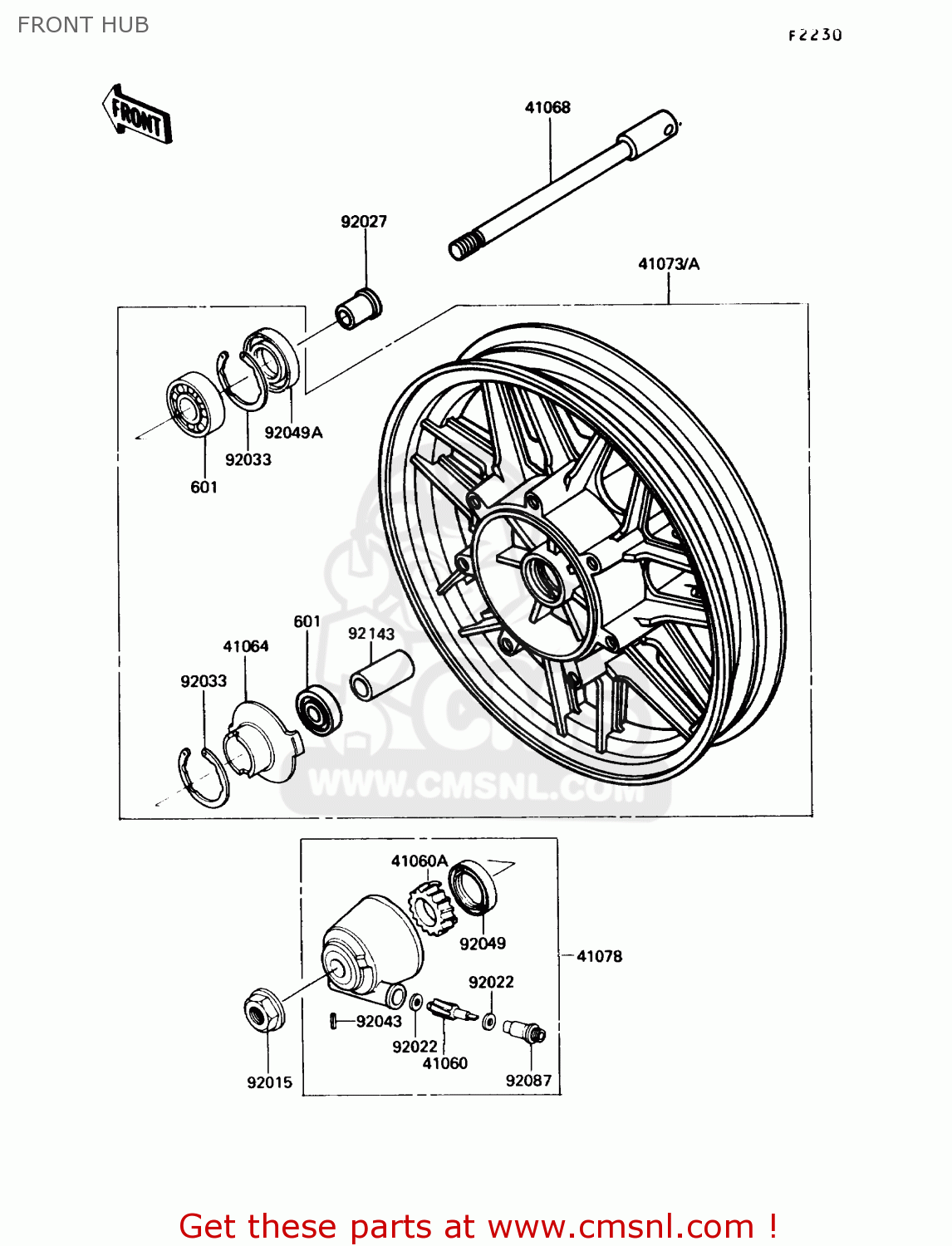

Front hub diagram ZG1200B2 VOYAGER XII 1988 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

601

601B6302UG
ref: 601

BEARING BALL

€ 29.00

41060

410601016
ref: 41060

PINION,SPEEDOMETER,9T

€ 21.50

41060A

410601041
ref: 41060A

GEAR-METER SCREW,25T

€ 19.00

41064

410641006
ref: 41064

RECEIVER,SPEEDOMETER

€ 9.50

41068

410681199
ref: 41068

AXLE,FR

€ 62.00

41073

410731321V8
ref: 41073

WHEEL ASSEMBLY,FRONT,GRAY

€ 526.00

41078

410781064
ref: 41078

CASE-ASSY-METER GEAR

€ 114.50

92015

920151407
ref: 92015

NUT,14MM

€ 6.50

92022

41063001
ref: 92022

WASHER-THRST SPD PINI

€ 3.00

92027

920271225
ref: 92027

COLLAR,FR AXLE L=30MM

€ 11.50

92033

920331041
ref: 92033

CIRCLIP,42MM

€ 4.00

92043

41082001
ref: 92043

PIN-SPRING

€ 2.50

92049

920491057
ref: 92049

OIL SEAL,BJN30427-C3

€ 7.50

92049A

920491058
ref: 92049A

OIL SEAL,BJN22425

€ 7.50

92087

920871002
ref: 92087

BUSHING-METER GEAR

€ 14.50

92143

920271921
ref: 92143

COLLAR,15.2X22X76

€ 10.00

FRONT HUB

all assemblies
