CYLINDER HEAD COVER

ZG1200B2 VOYAGER XII 1988 USA CALIFORNIA CANADA

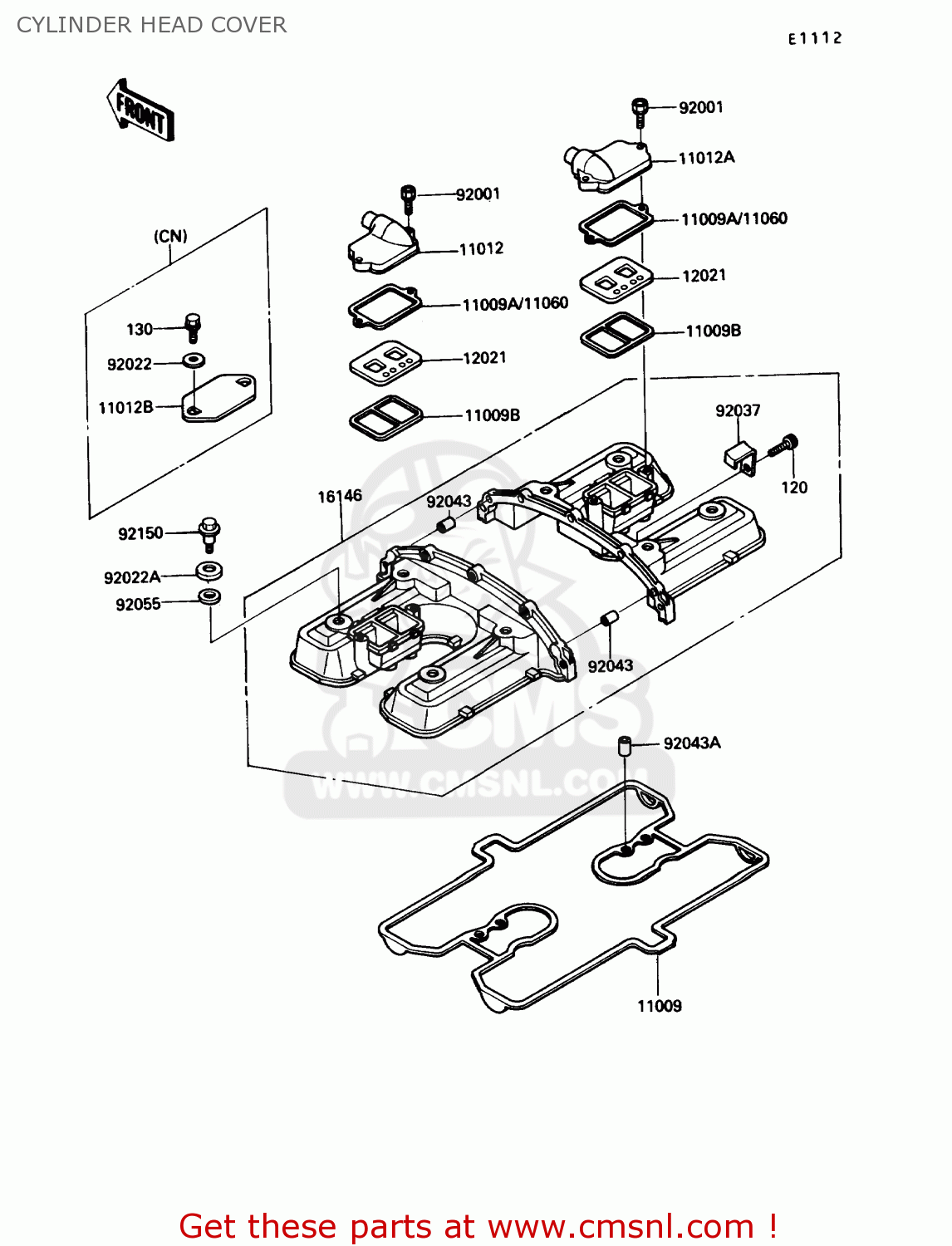

Cylinder head cover diagram ZG1200B2 VOYAGER XII 1988 USA CALIFORNIA CANADA

CYLINDER HEAD COVER ZG1200B2 VOYAGER XII 1988 USA CALIFORNIA CANADA
CYLINDER HEAD COVER ZG1200B2 VOYAGER XII 1988 USA CALIFORNIA CANADA
CYLINDER HEAD COVER ZG1200B2 VOYAGER XII 1988 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
120
120P0625
ref: 120
BOLT,6X25
120P0625
€ 1.50
130
130B0614
ref: 130
CN
BOLT-FLANGED
130B0614
€ 0.50
11009
110091559
ref: 11009
GASKET,CYLINDER HEAD (NAS)
110091559
€ 55.50
11009A
110091595
ref: 11009A
CAUS
GASKET,REED VALVE
€ 3.50
11009B
110091905
ref: 11009B
GASKET,REED VALVE (NAS)
110091905
€ 6.00
11012
110121487
ref: 11012
CAUS
REED VALVE CAP,LH
€ 19.00
11012A
110121488
ref: 11012A
CAUS
CAP,REED VALVE,RH
€ 20.00
11012B
110121530
ref: 11012B
CN
CAP,REED VALVE (Canada)
€ 0.00
12021
120211053
ref: 12021
CAUS
VALVE-ASSY-REED
120211053
€ 50.50
16146
161461089
ref: 16146
COVER ASSEMBLY
€ 195.00
92001
920011352
ref: 92001
CAUS
BOLT,FLANGED,6X22
920011352
€ 2.50
92022
92022125
ref: 92022
CN
WASHER,6.5X20X1.6
92022125
€ 1.00
92022A
920221637
ref: 92022A
WASHER,HEAD COVER BOL
920221637
€ 3.50
92037
920371764
ref: 92037
CLAMP
€ 4.50
92043
920431262
ref: 92043
PIN,DOWEL,4.2X6X12
920431262
€ 2.50
92043A
920431263
ref: 92043A
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92055
920551225
ref: 92055
RING-O,HEAD COVER BOL
920551225
€ 4.50
92150
921501447
ref: 92150
BOLT
921501447
€ 3.00
