CLUTCH(ZG1200-B1/B2/B3/B4)

ZG1200B2 VOYAGER XII 1988 USA CALIFORNIA CANADA

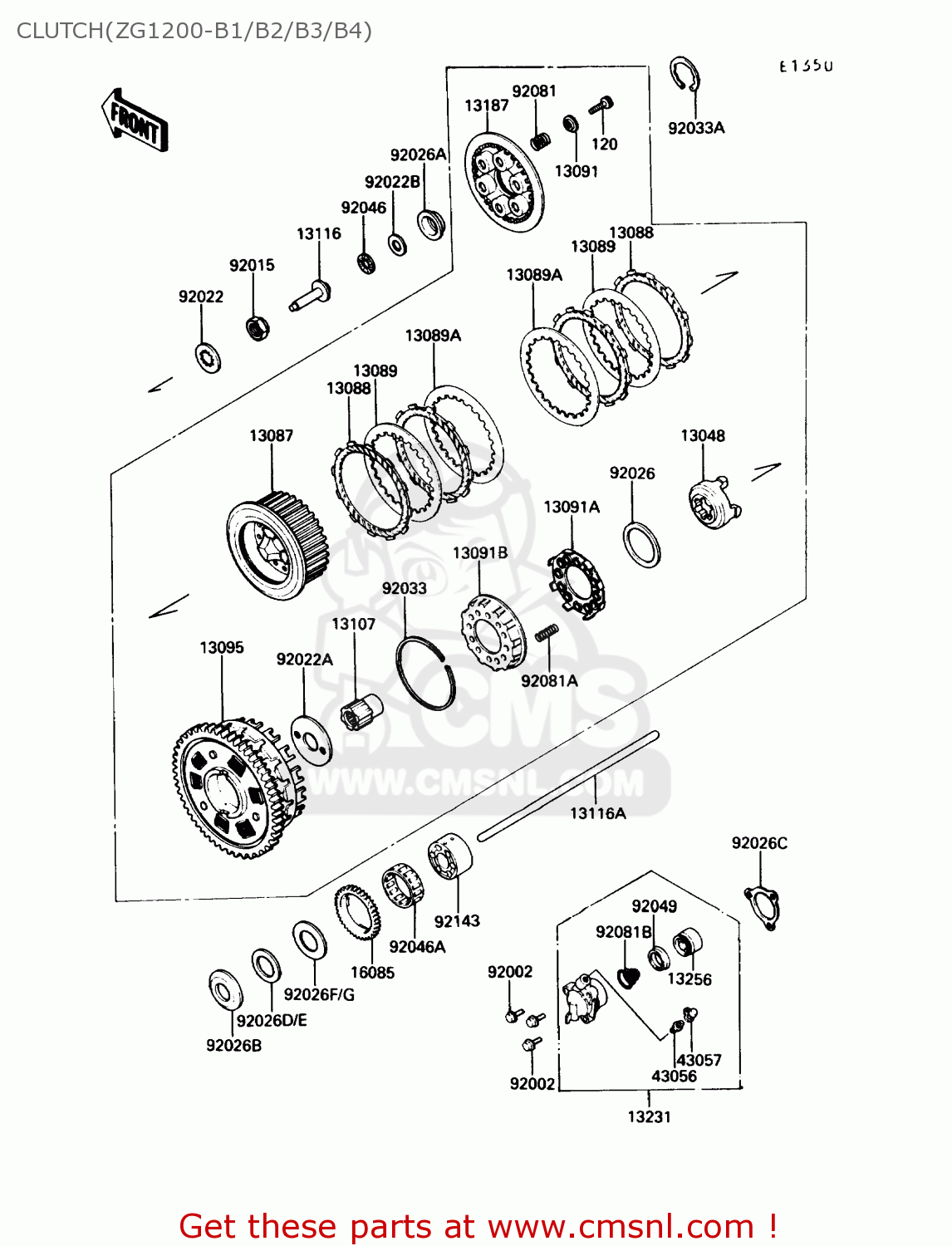

Clutch(zg1200-b1/b2/b3/b4) diagram ZG1200B2 VOYAGER XII 1988 USA CALIFORNIA CANADA

CLUTCH(ZG1200-B1/B2/B3/B4) ZG1200B2 VOYAGER XII 1988 USA CALIFORNIA CANADA
CLUTCH(ZG1200-B1/B2/B3/B4) ZG1200B2 VOYAGER XII 1988 USA CALIFORNIA CANADA
CLUTCH(ZG1200-B1/B2/B3/B4) ZG1200B2 VOYAGER XII 1988 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
13048
130481007
ref: 13048
CAM-DAMPER
€ 61.50
13087
130871082
ref: 13087
CLUTCH HUB
€ 81.50
13088
130881051
ref: 13088
PLATE-FRICTION (NAS)
130881051
€ 14.00
13089
130891067
ref: 13089
PLATE-CLUTCH,T=2.6 (NAS)
130891067
€ 7.00
13089A
130891071
ref: 13089A
PLATE-CLUTCH,T=2.9 (NAS)
130891071
€ 7.00
13091
130911041
ref: 13091
HOLDER CLUTCH SPRING
130911041
€ 8.50
13091A
130911042
ref: 13091A
HOLDER,DAMPER SPRING,
130911042
€ 16.50
13091B
130911043
ref: 13091B
HOLDER,DAMPER SPRING,
€ 16.50
13095
130951167
ref: 13095
CLUTCH HOUSING,COMPLETE
€ 625.00
13107
131071266
ref: 13107
SHAFT,CLUTCH
€ 60.50
13116
131161102
ref: 13116
ROD-PUSH,CLUTCH
131161102
€ 26.50
13116A
131161121
ref: 13116A
ROD-PUSH,L=343
€ 20.00
13187
131871056
ref: 13187
PLATE-CLUTCH OPERATIN
131871056
€ 47.50
13231
132311057
ref: 13231
RELEASE-ASSY-CLUTCH
€ 121.00
13256
132561051
ref: 13256
PISTON,CLUTCH RELEASE
132561051
€ 38.50
16085
160851157
ref: 16085
GEAR,OIL PUMP,37T
€ 124.50
43056
430561052
ref: 43056
BREATHER-BRAKE
430561052
€ 10.00
43057
430571001
ref: 43057
CAP-BREATHER
430571001
€ 3.00
92002
920021612
ref: 92002
BOLT
920021612
€ 3.00
92015
920151555
ref: 92015
NUT,20MM
920151555
€ 9.00
92022
920221114
ref: 92022
WASHER,TOOTHED,25X40X
920221114
€ 10.50
92022A
920221221
ref: 92022A
WASHER,CLUTCH THRUST
920221221
€ 10.50
92022B
920221463
ref: 92022B
WASHER,15.1X29X1.0
920221463
€ 3.00
92026
920261043
ref: 92026
SPACER,3.5X59X70
920261043
€ 19.00
92026A
920261202
ref: 92026A
SPACER,CLUTCH
920261202
€ 31.50
92026C
920261263
ref: 92026C
SPACER,CLUTCH RELEASE
920261263
€ 11.50
92026D
920261306
ref: 92026D
SPACER
920261306
€ 12.50
92026F
920261307
ref: 92026F
SPACER
920261307
€ 12.50
92033
920331029
ref: 92033
RING-SNAP
920331029
€ 9.50
92033A
920331177
ref: 92033A
RING-SNAP,50MM
920331177
€ 6.00
92046
920461052
ref: 92046
BEARING-NEEDLE,AXK110
920461052
€ 14.00
92046A
920461152
ref: 92046A
BEARING-NEEDLE,K55602
920461152
€ 38.50
92049
920491165
ref: 92049
SEAL-OIL,PISTON
920491165
€ 13.00
92081
920811114
ref: 92081
SPRING,CLUTCH
920811114
€ 4.50
120
120Q0616
ref: 120
BOLT,SOCKET,6X16
€ 4.50
92081A
920811115
ref: 92081A
SPRING,CLUTCH DAMPER
920811115
€ 4.50
92081B
920811644
ref: 92081B
SPRING,CLUTCH RELEASE
920811644
€ 5.50
92143
920271967
ref: 92143
COLLAR,INPUTSHAFT
920271967
€ 75.00
