CABLE

ZG1200B2 VOYAGER XII 1988 USA CALIFORNIA CANADA

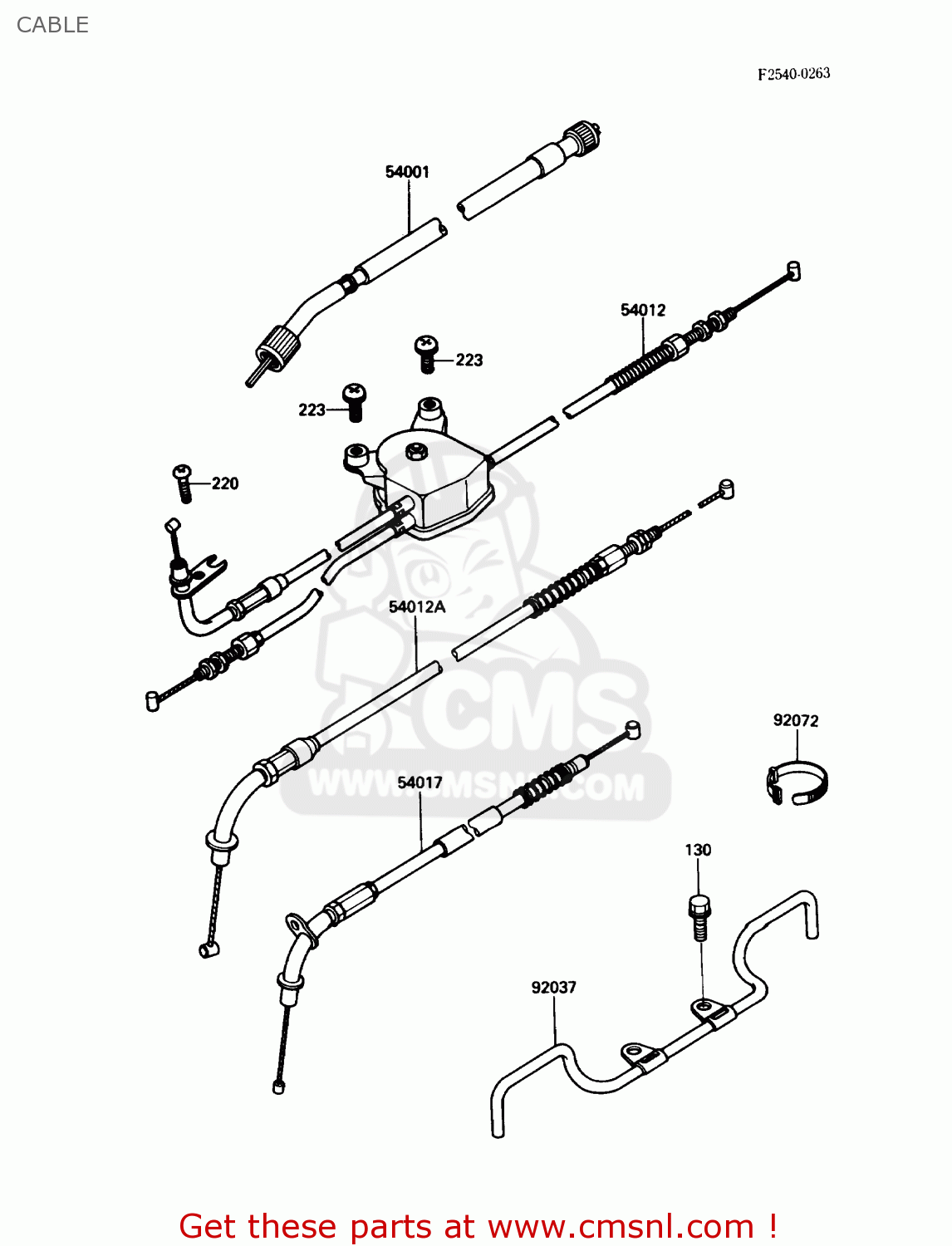

Cable diagram ZG1200B2 VOYAGER XII 1988 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130B0614
ref: 130

BOLT-FLANGED

€ 0.50

220

220C0514
ref: 220

SCREW-PAN-CROS

€ 1.00

223

223B0610
ref: 223

SCREW-PAN-WS-CROS

€ 2.50

54001

540011121
ref: 54001

CABLE-SPEEDOMETER

€ 22.50

54012

540121331
ref: 54012

CABLE-THROTTLE,OPENIN

€ 58.00

54012A

540121332
ref: 54012A

CABLE-THROTTLE,CLOSIN

€ 35.00

54017

540171095
ref: 54017

CABLE-STARTER

€ 33.00

92037

920371832
ref: 92037

CABLE AND HOSE CLAMP

€ 17.00

92072

920721195
ref: 92072

BAND,L=185

€ 1.00
