MUFFLER

ZG1200B2 VOYAGER XII 1988 USA CALIFORNIA CANADA

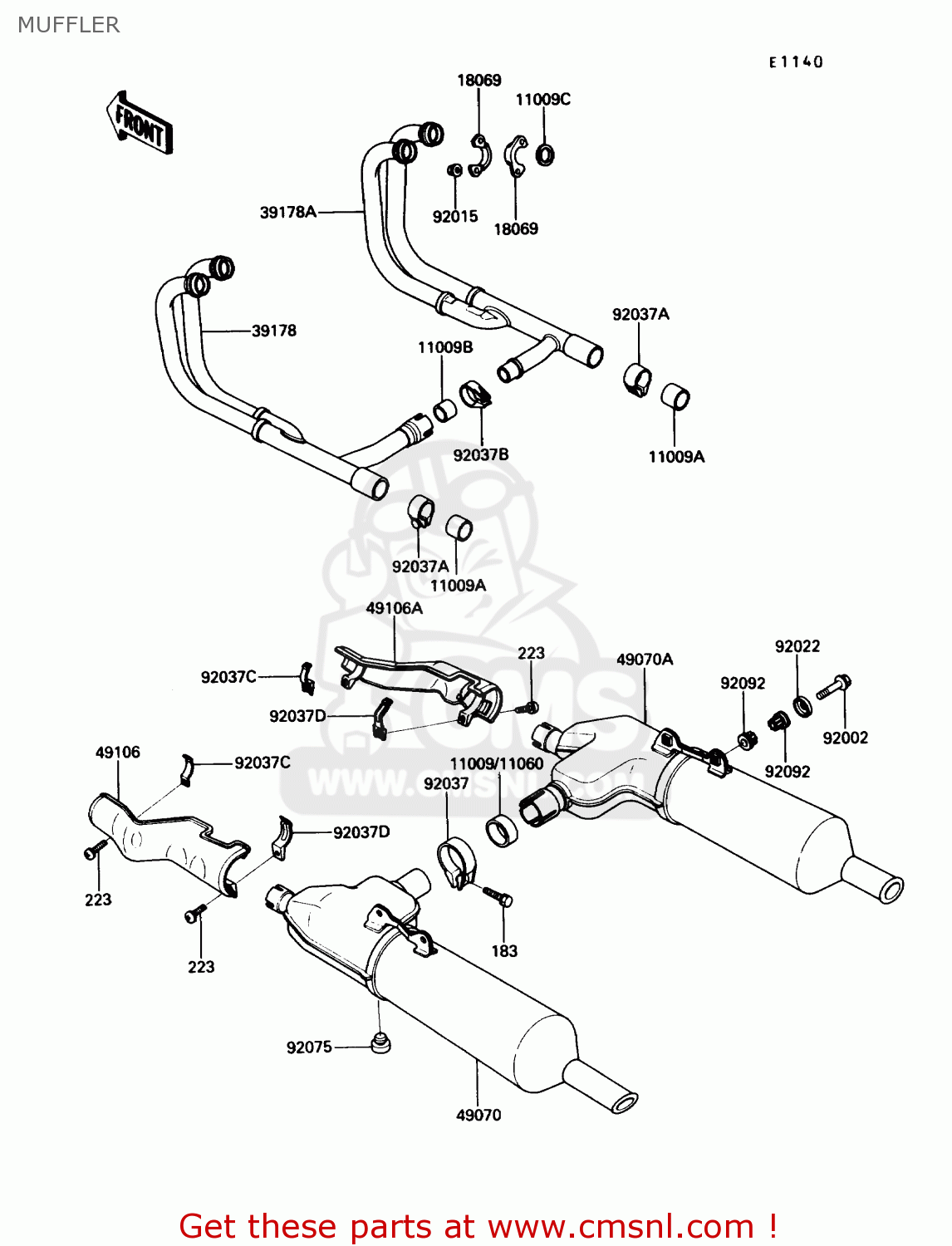

Muffler diagram ZG1200B2 VOYAGER XII 1988 USA CALIFORNIA CANADA

MUFFLER ZG1200B2 VOYAGER XII 1988 USA CALIFORNIA CANADA
MUFFLER ZG1200B2 VOYAGER XII 1988 USA CALIFORNIA CANADA
MUFFLER ZG1200B2 VOYAGER XII 1988 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
183
183J0835
ref: 183
BOLT-UPSET-WS-SMALL
€ 3.00
223
223X0625
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
11009
110091629
ref: 11009
GASKET, MUFFLER (MCA)
€ 20.00
11009A
110091666
ref: 11009A
GASKET,EXHAUST PIPE C (NAS)
110091666
€ 20.50
11009B
110091668
ref: 11009B
GASKET,EXHAUST MANIFO (NAS)
110091668
€ 20.00
11009C
110091906
ref: 11009C
GASKET,EXHAUST PIPE H (NAS)
110091906
€ 7.00
18069
180691070
ref: 18069
EXHAUST PIPE HOLDER
€ 19.50
39178
391781100
ref: 39178
MANIFOLD-COMP-EXHAUST
€ 440.00
39178A
391781101
ref: 39178A
MANIFOLD-COMP-EXHAUST
€ 440.00
49070
490701115
ref: 49070
MUFFLER-COMP,LH
€ 579.00
49070A
490701116
ref: 49070A
MUFFLER-COMP,RH
€ 579.00
49106
491061069
ref: 49106
COVER-MUFFLER,LH
€ 75.50
49106A
491061070
ref: 49106A
COVER-MUFFLER,RH
€ 94.50
92002
920021826
ref: 92002
BOLT
920021826
€ 6.00
92015
920151398
ref: 92015
NUT,8MM
920151398
€ 3.00
92022
92022289
ref: 92022
WASHER,PLAIN
92022289
€ 11.50
92037
920371055
ref: 92037
CLAMP,MUFFLER
920371055
€ 16.00
92037A
920371228
ref: 92037A
CLAMP,POWER CHAMBER
920371228
€ 11.50
92037B
920371258
ref: 92037B
CLAMP,MUFFLER
920371258
€ 10.50
92037C
920371752
ref: 92037C
CLAMP,MUFFLER COVER,F
920371752
€ 8.00
92037D
920371753
ref: 92037D
CLAMP, MUFFLER COVER
€ 10.50
92075
920751045
ref: 92075
DAMPER,STAND STOPPER
920751045
€ 5.00
92092
920921013
ref: 92092
BUSHING-RUBBER,MUFFLE
920921013
€ 11.50
