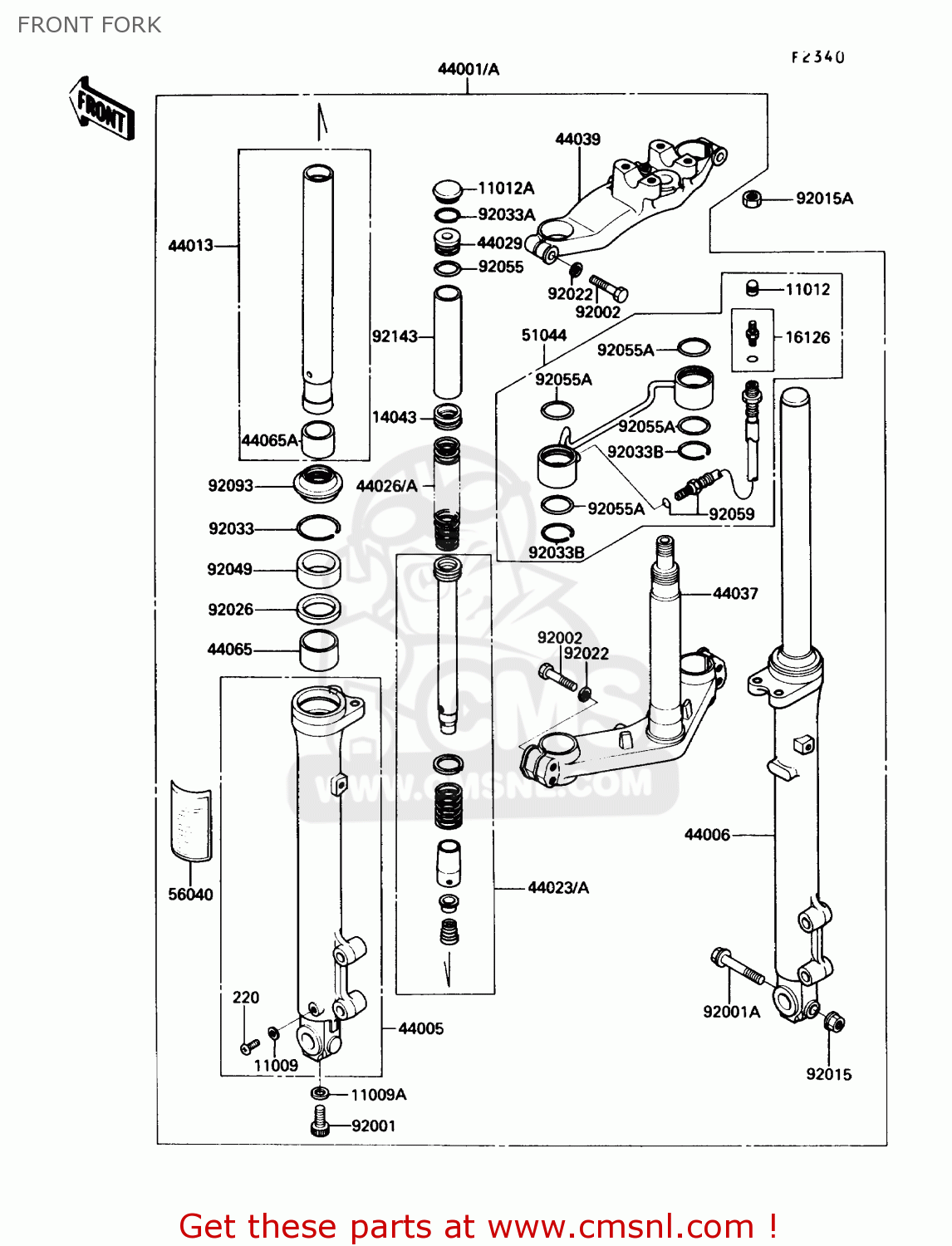

FRONT FORK

ref

part #

description

quantity

220

220B0406
ref: 220

SCREW-PAN-CROS,4X6

€ 2.50

11009

44045046
ref: 11009

GASKET,FORK DRAIN PLU (NAS)

€ 4.50

11009A

44045051
ref: 11009A

GASKET,FORK CYLINDER (NAS)

€ 4.00

11012

110121552
ref: 11012

CAP,AIR VALVE

€ 3.50

11012A

110121561
ref: 11012A

CAP,FORK TOP

€ 12.00

14043

140431066
ref: 14043

FORK FILTER

€ 34.50

16126

161261105
ref: 16126

VALVE,AIR

€ 24.50

44001

440011665
ref: 44001

FRONT FORK

€ 1,246.00

44005

440051250
ref: 44005

FORK OUTER PIPE,LH

€ 255.00

44006

440061249
ref: 44006

FORK OUTER PIPE,RH

€ 312.50

44013

440131263
ref: 44013

PIPE-FORK INNER

€ 268.00

44023

440231059
ref: 44023

FORK CYLINDER,COMPLETE

€ 86.00

44026

440261367
ref: 44026

FRONT FORK SPRING

€ 47.50

44029

440291125
ref: 44029

SEAT-FORK SPRING

€ 29.50

44037

440371194
ref: 44037

FORK HOLDER,UNDER

€ 317.50

44039

440391132
ref: 44039

FORK HOLDER,UPPER

€ 180.00

44065

440651079
ref: 44065

BUSHING-FRONT FORK

€ 16.00

44065A

440651080
ref: 44065A

BUSHING-FRONT FORK,IN

€ 19.00

51044

510441082
ref: 51044

AIR FORK TUBE ASSEMBLY

€ 87.50

56040

560401054
ref: 56040

LABEL-WARNING,AIR SUS

€ 4.00

92001

920011464
ref: 92001

BOLT

€ 4.00

92001A

920011486
ref: 92001A

BOLT,FLANGED,8X50

€ 7.50

92002

920021603
ref: 92002

BOLT

€ 5.00

92015

920151055
ref: 92015

NUT,8M/M

€ 3.00

92022

920221703
ref: 92022

WASHER,SPRING,8MM

€ 2.00

92026

920261276
ref: 92026

SPACER,FORK OUTER

€ 6.50

92033

920331222
ref: 92033

RING-SNAP,FORK OUTER

€ 4.00

92033A

920331223
ref: 92033A

RING-SNAP,SPRING SEAT

€ 4.00

92033B

920331224
ref: 92033B

AIR TUBE SNAP RING

€ 2.50

92049

920491272
ref: 92049

SEAL-OIL,FORK OUTER

€ 17.50

92055

920551363
ref: 92055

RING-O,SPRING SEAT

€ 4.50

92055A

920551364
ref: 92055A

RING-O FORK, AIR TUBE

€ 5.50

92059

920591745
ref: 92059

TUBE,FORK,AIR

€ 122.00

92093

920931231
ref: 92093

SEAL,FORK OUTER TUBE

€ 16.50

92143

921431053
ref: 92143

COLLAR,FORK SPRING

€ 5.50
