BALANCER

ZG1200B2 VOYAGER XII 1988 USA CALIFORNIA CANADA

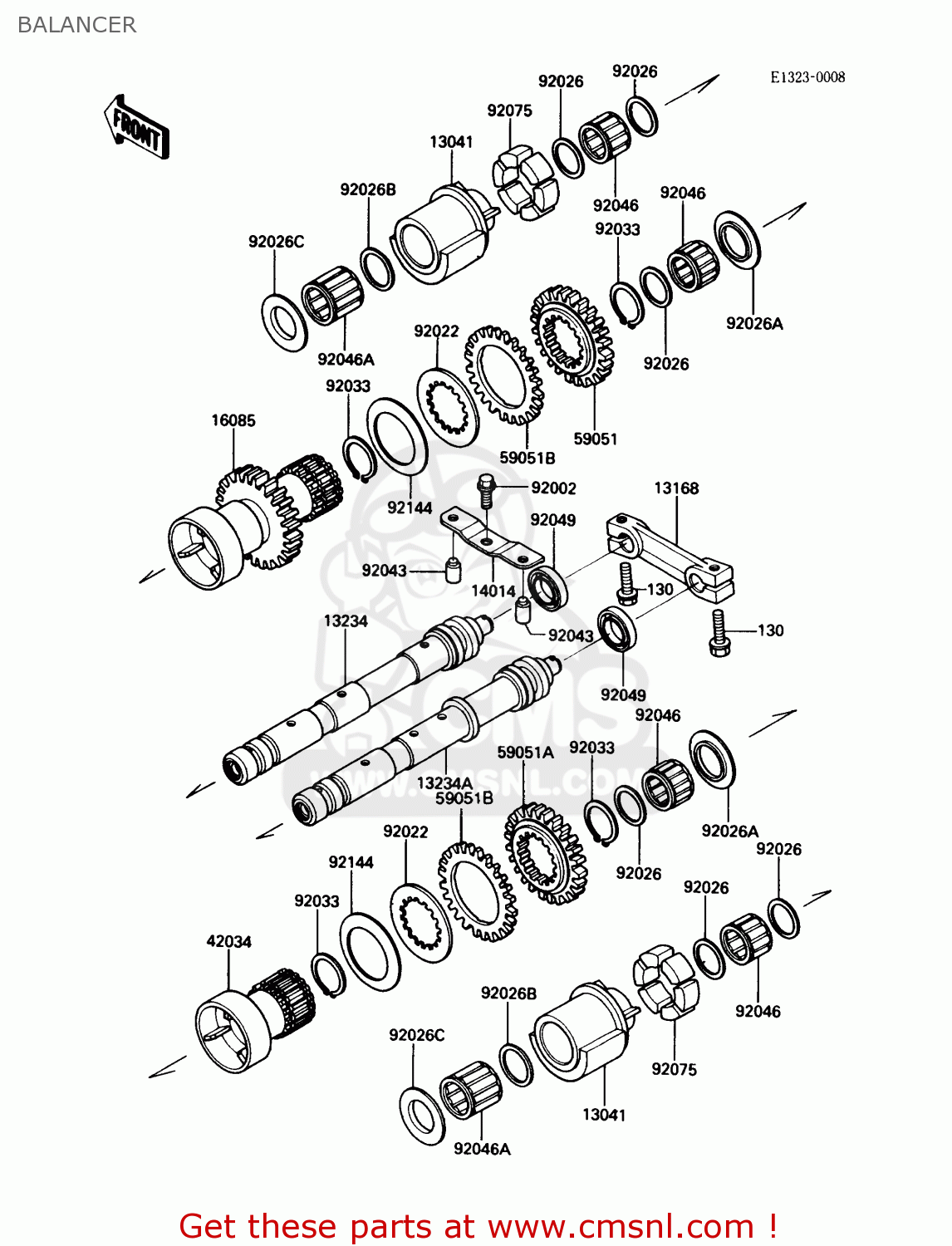

Balancer diagram ZG1200B2 VOYAGER XII 1988 USA CALIFORNIA CANADA

BALANCER ZG1200B2 VOYAGER XII 1988 USA CALIFORNIA CANADA
BALANCER ZG1200B2 VOYAGER XII 1988 USA CALIFORNIA CANADA
BALANCER ZG1200B2 VOYAGER XII 1988 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130N0620
ref: 130
BOLT-FLANGED
€ 2.50
13041
130411069
ref: 13041
BALANCER
€ 52.00
13168
131681297
ref: 13168
BALANCER LEVER
€ 38.50
13234
132341073
ref: 13234
SHAFT-COMP,BALANCER,F
€ 188.50
13234A
132341074
ref: 13234A
BALANCER SHAFT,COMPLETE,REAR
€ 121.00
14014
140141076
ref: 14014
PLATE-POSITION,BALANC
€ 6.00
16085
160851200
ref: 16085
BALANCER GEAR,FRONT
€ 176.50
42034
420341089
ref: 42034
BALANCER COUPLING,REAR
€ 88.00
59051
590511173
ref: 59051
SPUR GEAR,29T
€ 71.00
59051A
590511174
ref: 59051A
SPUR GEAR,29T
€ 77.50
59051B
590511175
ref: 59051B
SPUR GEAR,28T
€ 46.00
92002
920021563
ref: 92002
BOLT,6X12
€ 2.00
92022
920221809
ref: 92022
WASHER,TOOTHED,31.7X5
€ 4.50
92026
920261213
ref: 92026
SPACER,21.3X24.3X1.5
920261213
€ 4.00
92026A
920261214
ref: 92026A
SPACER,BALANCER
920261214
€ 29.50
92026B
920261223
ref: 92026B
SPACER,21.3X26X1
920261223
€ 4.50
92026C
920261271
ref: 92026C
SPACER
€ 29.50
92033
920331221
ref: 92033
SNAP RING
€ 3.50
92043
920431281
ref: 92043
PIN,BALANCER
920431281
€ 6.50
92046
920461105
ref: 92046
BEARING-NEEDLE,K21X25
920461105
€ 23.50
92046A
920461153
ref: 92046A
BEARING-NEEDLE,K21282
€ 31.00
92049
920491174
ref: 92049
SEAL-OIL,S192705
920491174
€ 6.00
92075
920751590
ref: 92075
DAMPER,BALANCER
920751590
€ 3.50
92144
921441034
ref: 92144
SPRING PLATE
€ 4.50
