STARTER MOTOR
Z750P7 GT750 1992 EUROPE UK

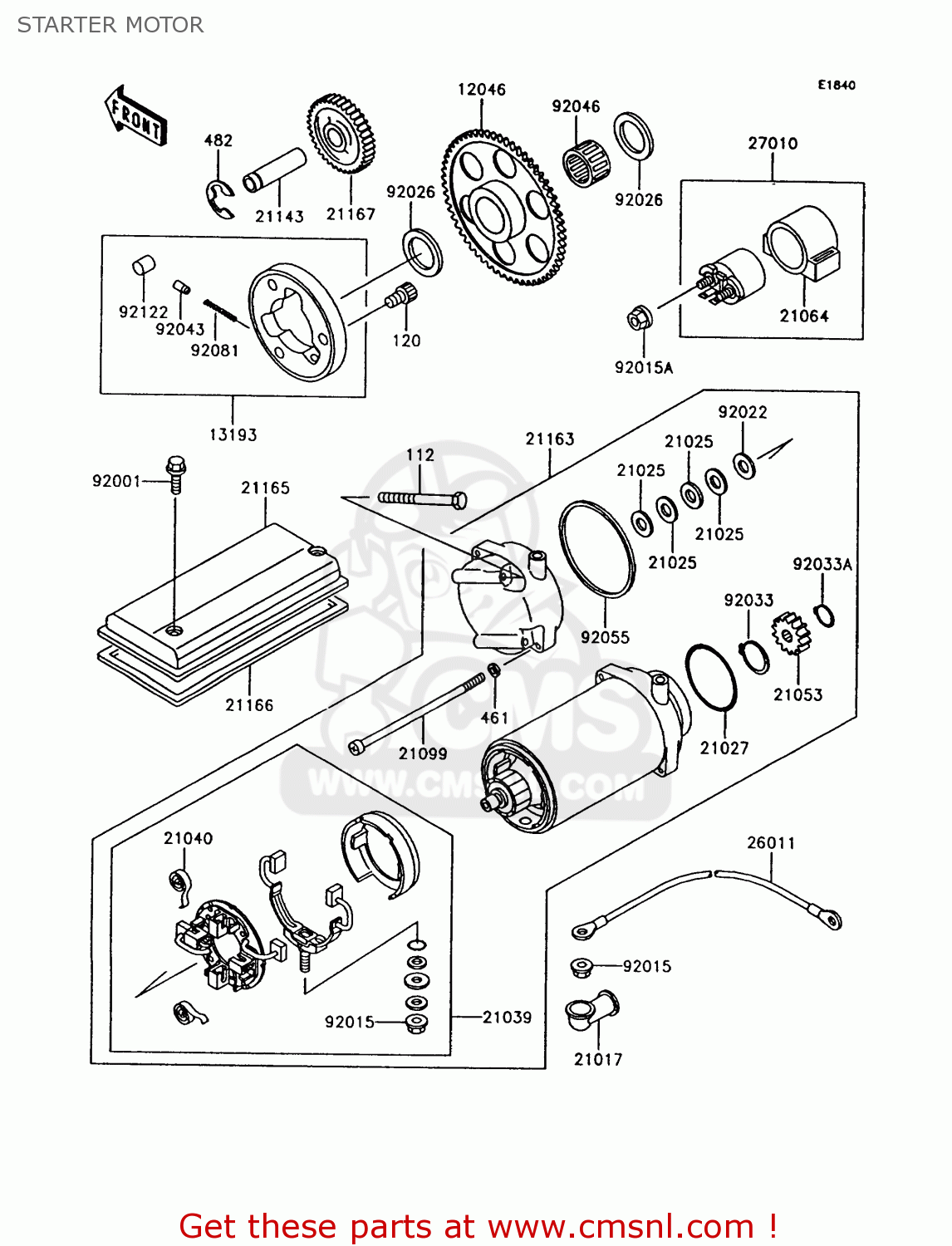

Starter motor diagram Z750P7 GT750 1992 EUROPE UK
STARTER MOTOR Z750P7 GT750 1992 EUROPE UK
×
prices are in EUR
ref
part #
description
quantity
112
112G0660
ref: 112
BOLT-UPSET
€ 3.00
120
120P0812
ref: 120
BOLT,SOCKET,8X12
€ 2.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
482
482J0200
ref: 482
CIRCLIP-TYPE-E,12MM
€ 2.50
12046
120461032
ref: 12046
SPROCKET,STARTER,58T
€ 99.50
13193
131931012
ref: 13193
CLUTCH TARIER
€ 152.50
21017
21017017
ref: 21017
GROMMET-CORD
€ 6.50
21025
21025011
ref: 21025
WASHER, THRUST, 0.2T
€ 4.00
21027
21027008
ref: 21027
O RING, 40M/M
€ 8.50
21039
210391006
ref: 21039
BRUSH,CARBON
€ 89.50
21040
210401003
ref: 21040
SPRING-BRUSH
€ 6.00
21053
21053004
ref: 21053
PINION, STARTER
€ 69.00
21064
21064002
ref: 21064
DAMPER,MAGNETIC SWITC
€ 13.50
21099
21099006
ref: 21099
SCREW,PAN HEAD, 6X130
€ 4.50
21143
21143003
ref: 21143
SHAFT,IDLE GEAR
€ 10.00
21163
211631025
ref: 21163
STARTER-ELECTRIC
€ 503.50
21165
21165003
ref: 21165
COVER,STARTER
€ 13.50
21166
21166003
ref: 21166
GASKET,STARTER COVER (NAS)
€ 9.50
21167
21167004
ref: 21167
GEAR-SPUR,IDLE,29T
€ 69.50
26011
260111049
ref: 26011
WIRE-LEAD,STARTER MOT
€ 22.50
27010
270101071
ref: 27010
SWITCH,MAGNETIC
€ 86.00
92001
920011151
ref: 92001
BOLT,6X10
€ 3.00
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92015A
920151195
ref: 92015A
NUT,FLANGED,6MM
€ 1.50
92022
920221132
ref: 92022
WASHER,9.1X18X0.8
€ 4.00
92026
920261025
ref: 92026
SPACER,25X36X3.2
€ 3.50
92033
92033034
ref: 92033
CIRCLIP
€ 7.00
92033A
92033037
ref: 92033A
RING-SNAP,13MM
€ 6.50
92043
92043087
ref: 92043
PIN
€ 8.00
92046
92046056
ref: 92046
BEARING-NEEDLE,K25301
€ 24.00
92055
920551086
ref: 92055
O RING,64MM
€ 6.50
92081
92081110
ref: 92081
SPRING
€ 3.00
92122
92122004
ref: 92122
ROLLER,15X13
€ 7.00
