METER(S)
Z750P7 GT750 1992 EUROPE UK

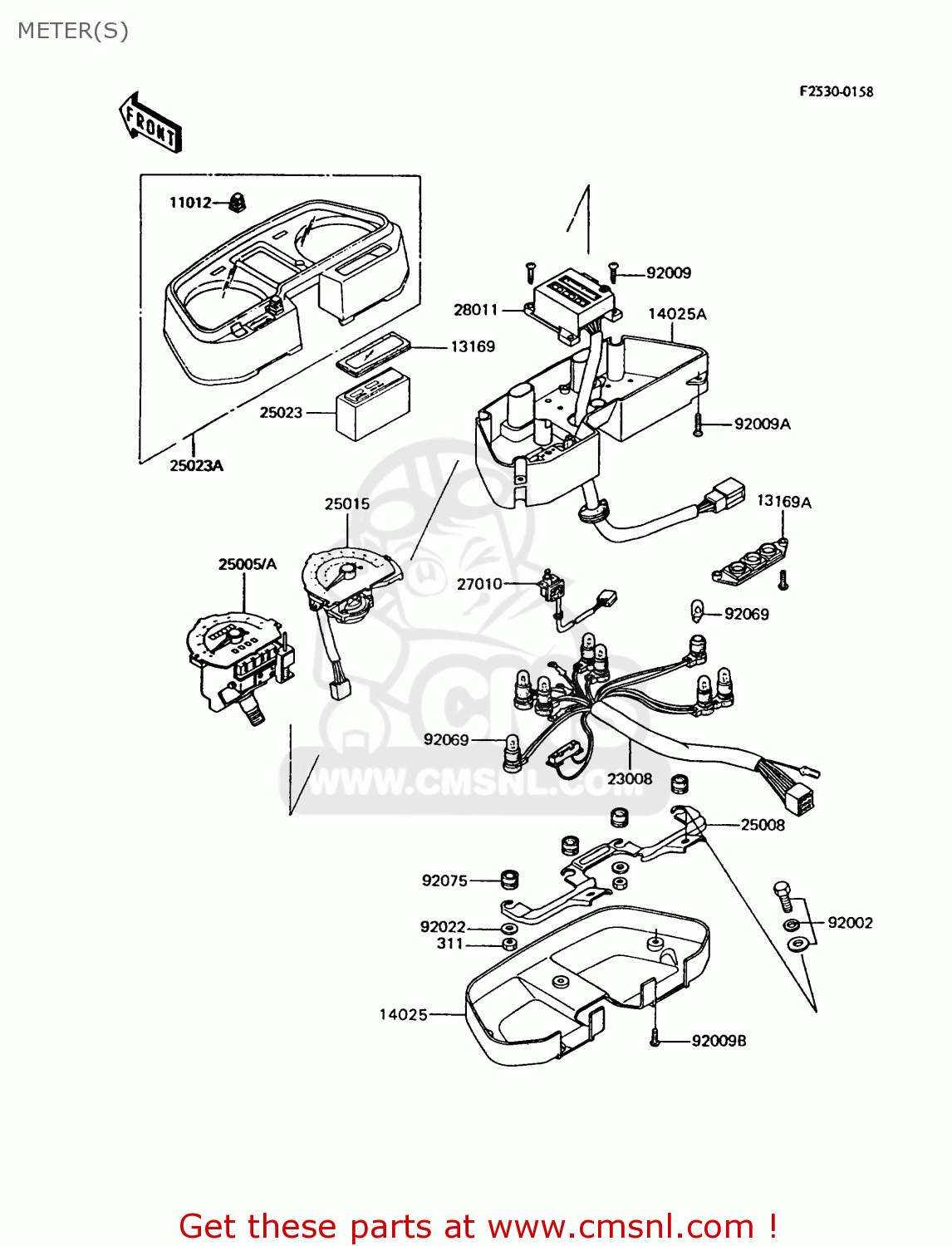

Meter(s) diagram Z750P7 GT750 1992 EUROPE UK
METER(S) Z750P7 GT750 1992 EUROPE UK
×
prices are in EUR
ref
part #
description
quantity
311
311B0500
ref: 311
NUT-HEX
€ 0.50
11012
110121291
ref: 11012
CAP TRIP REST,METER
€ 9.00
13169
131691508
ref: 13169
PLATE,PILOT BOX
€ 12.00
13169A
131691556
ref: 13169A
PLATE,BULB SOCKET
€ 7.50
14025
140251473
ref: 14025
COVER,METER,LWR
€ 20.50
14025A
140251970
ref: 14025A
COVER,METER UNIT
€ 58.50
23008
230081156
ref: 23008
SOCKET-ASSY,METER
€ 83.50
25005
250051176
ref: 25005
EU
SPEEDOMETER,KPH
€ 134.50
25005A
250051179
ref: 25005A
UK
SPEEDOMETER,MPH
€ 126.00
25008
250081057
ref: 25008
BRACKET-METER
€ 33.50
25015
250151230
ref: 25015
TACHOMETER
€ 173.00
25023
250231041
ref: 25023
COVER-METER CASE
€ 21.00
25023A
250231124
ref: 25023A
COVER-METER CASE UPP
€ 76.00
27010
270101062
ref: 27010
SWITCH,TACHOMETER & V
€ 57.00
28011
280111060
ref: 28011
METER,FUEL & WARNING
€ 559.50
92002
920021133
ref: 92002
BOLT,6X14
€ 0.50
92009
920091140
ref: 92009
SCREW,TAPPING,4X14
€ 2.50
92009A
920091141
ref: 92009A
SCREW,TAPPING,4X20
€ 2.50
92009B
920091142
ref: 92009B
SCREW,TAPPING,4X12
€ 2.00
92022
92022263
ref: 92022
WASHER,PLAIN,6MM
€ 1.00
92069
920691007
ref: 92069
BULB,12V3.4W
€ 2.50
92075
920751385
ref: 92075
DAMPER,METER BRACKET
€ 2.50
