CARBURETOR

Z750P7 GT750 1992 EUROPE UK

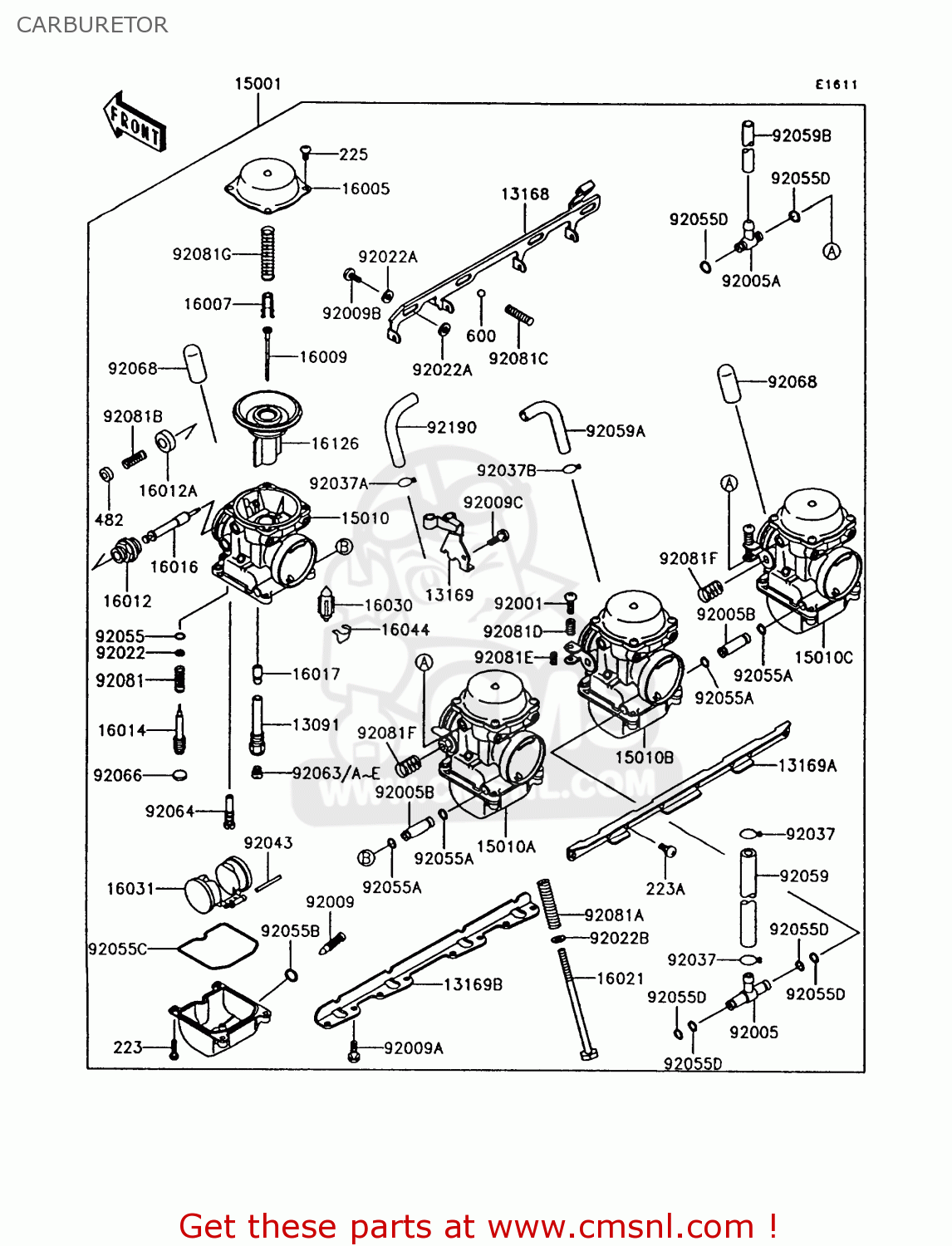

Carburetor diagram Z750P7 GT750 1992 EUROPE UK

CARBURETOR Z750P7 GT750 1992 EUROPE UK
CARBURETOR Z750P7 GT750 1992 EUROPE UK
CARBURETOR Z750P7 GT750 1992 EUROPE UK
prices are in EUR
ref
part #
description
quantity
13091
130911802
ref: 13091
HOLDER,NEEDLE JET
€ 14.00

13168
131681434
ref: 13168
LEVER,STARTER
€ 77.50

13169
131691962
ref: 13169
PLATE,THROTTLE CABLE
€ 38.50

13169A
131691963
ref: 13169A
PLATE,CARBURETOR STAY
€ 71.50

13169B
131691964
ref: 13169B
PLATE,CARBURETOR STAY
€ 71.50

15001
150011774
ref: 15001
CARBURETOR-ASSY
€ 1,477.50

15010
150101359
ref: 15010
CARBURETOR LH OUTSIDE
€ 568.50

15010A
150101360
ref: 15010A
CARBURETOR LH INSIDE
€ 568.50

15010B
150101361
ref: 15010B
CARBURETOR RH INSIDE
€ 568.50

15010C
150101362
ref: 15010C
CARBURETOR RH OUTSIDE
€ 568.50

16005
160051056
ref: 16005
TOP-CHAMBER
€ 38.00

16007
160071120
ref: 16007
SEAT-SPRING
€ 14.00

16009
160091717
ref: 16009
NEEDLE-JET,N76Z
€ 19.50

16012
160121051
ref: 16012
CAP-STARTER PLUNGER
€ 5.50

16012A
160121052
ref: 16012A
CAP-STARTER PLUNGER
€ 8.00

16014
160141054
ref: 16014
SCREW-PILOT AIR
€ 13.00

16016
160161077
ref: 16016
PLUNGER,STARTER
€ 24.00

16017
160171285
ref: 16017
JET-NEEDLE
€ 26.00

16021
160211114
ref: 16021
SCREW-THROTTLE STOP
€ 71.50

16030
160301007
ref: 16030
FLOAT VALVE ASSY
€ 30.50

16031
160311056
ref: 16031
FLOAT
€ 32.50

16044
16044007
ref: 16044
CLIP, FLOAT VALVE
€ 3.00

16126
161261160
ref: 16126
VALVE,VACUUM
€ 126.50

92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
€ 9.50

92005
920051108
ref: 92005
FITTING,FUEL,T-TYPE
€ 13.00

92005A
920051125
ref: 92005A
FITTING,T-TYPE
€ 13.00

92005B
920051157
ref: 92005B
FITTING
€ 19.00

92009
920091095
ref: 92009
SCREW,DRAIN
€ 8.00

92009A
920091129
ref: 92009A
SCREW,6X16
€ 2.00

92009B
920091262
ref: 92009B
SCREW
€ 3.50

92009C
920091365
ref: 92009C
SCREW
€ 3.50

92022
920221003
ref: 92022
WASHER, PLAIN
€ 2.00

92022A
920221199
ref: 92022A
WASHER,6.1X11X0.8,POL
€ 2.50

92022B
920221480
ref: 92022B
WASHER,PLAIN,STOP SPR
€ 2.50

92037
920371075
ref: 92037
CLAMP,FUEL INLET TUBE
€ 2.00

92037A
920371201
ref: 92037A
CLAMP
€ 2.50

92037B
920371477
ref: 92037B
CLAMP,TUBE
€ 2.00

92043
920431207
ref: 92043
PIN,FLOAT
€ 4.00

92055
920551002
ref: 92055
O RING,PIROT ADJUST
€ 2.00

92055A
920551004
ref: 92055A
O RING
€ 2.00

223
223C0416
ref: 223
SCREW-PAN-WS-CROS
€ 2.00

223A
223C0510
ref: 223A
SCREW-PAN-WS-CROS
€ 2.00

225
225C0418
ref: 225
SCREW-PAN-WSP-CROS
€ 2.00

482
482L4000
ref: 482
CIRCLIP-TYPE-E,4MM
€ 0.50

600
600A0600
ref: 600
BALL-STEEL,3/16'
€ 0.50

92055B
920551053
ref: 92055B
O RING,DRAIN SCREW
€ 2.50

92055C
920551222
ref: 92055C
RING-O,FLOAT CHAMBER
€ 10.50

92055D
920551223
ref: 92055D
RING-O,FUEL FITTING
€ 3.00

92059
920591236
ref: 92059
TUBE,FUEL
€ 20.00

92059A
920591378
ref: 92059A
TUBE,5X9X150
€ 13.00

92059B
920591720
ref: 92059B
TUBE,6.5X9.5X230
€ 9.50

92063
920631001
ref: 92063
MAIN JET, 2ND, # 95
€ 8.00

92063A
920631003
ref: 92063A
MAIN JET, 2ND, # 90
€ 8.00

92063B
920631004
ref: 92063B
MAIN JET, 2ND, # 92
€ 8.00

92063C
920631005
ref: 92063C
MAIN JET, 2ND, # 98
€ 8.00

92063D
920631024
ref: 92063D
MAIN JET,2ND,#88
€ 8.00

92063E
920631086
ref: 92063E
MAIN JET,2ND,#75
€ 7.00

92064
920641035
ref: 92064
PILOT JET,#35
€ 9.50

92066
920661157
ref: 92066
PLUG,STARTER LEVER
€ 9.50

92068
92068006
ref: 92068
RUBBER PLUG
€ 2.00

92081
920811002
ref: 92081
SPRING,PIROT ADJ SCRW
€ 3.00

92081A
920811617
ref: 92081A
SPRING,THROTTLE STOP
€ 3.00

92081B
920811618
ref: 92081B
SPRING,STARTER PLUNGE
€ 4.00

92081C
920811619
ref: 92081C
SPRING,SHAFT STOP
€ 3.50

92081D
920811620
ref: 92081D
SPRING,THROTTLE ADJUS
€ 2.50

92081E
920811621
ref: 92081E
SPRING,THROTTLE ADJUS
€ 2.50

92081F
920811622
ref: 92081F
SPRING,THROTTLE ADJUS
€ 5.50

92081G
920811775
ref: 92081G
SPRING,VACUUM VALVE
€ 12.50

92190
921901316
ref: 92190
TUBE,4.5X8X200
€ 8.50
