FRONT FORK

Z750P7 GT750 1992 EUROPE UK

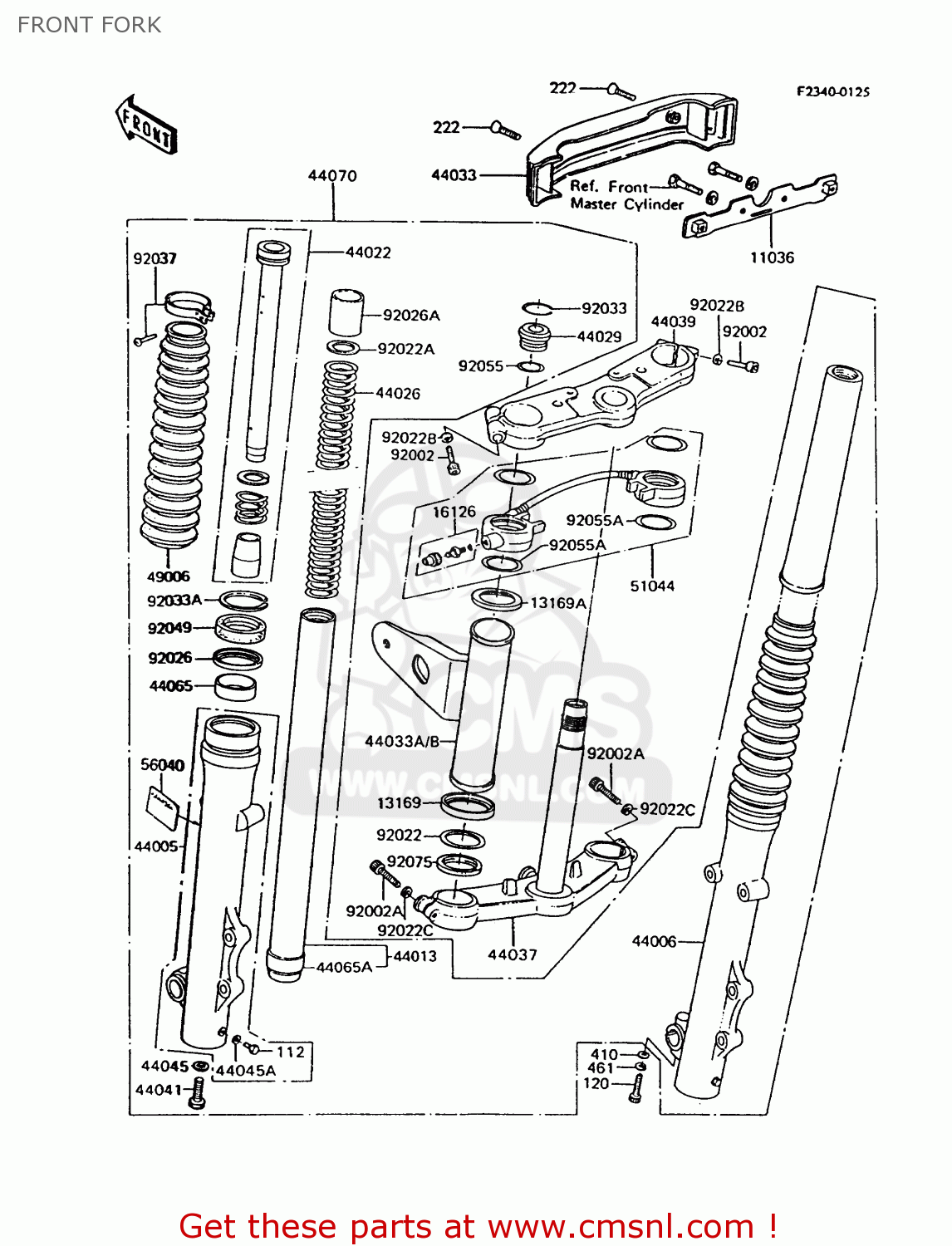

Front fork diagram Z750P7 GT750 1992 EUROPE UK

FRONT FORK Z750P7 GT750 1992 EUROPE UK
FRONT FORK Z750P7 GT750 1992 EUROPE UK
FRONT FORK Z750P7 GT750 1992 EUROPE UK
prices are in EUR
ref
part #
description
quantity
112
112B0608
ref: 112
BOLT-HEX,HEAD,6X8
€ 0.50

11036
110361320
ref: 11036
BRACKET-A,FORK COVER
€ 17.50

13169
131691134
ref: 13169
GUIDE,FORK COVER,LOW
€ 7.50

13169A
131691135
ref: 13169A
GUIDE,FORK COVER,UPPE
€ 5.50

16126
161261043
ref: 16126
VALVE,AIR
€ 18.00

44005
440051091
ref: 44005
PIPE-LEFT FORK OUTER
€ 252.50

44006
440061091
ref: 44006
PIPE-RIGHT FORK OUTER
€ 252.50

44013
440131092
ref: 44013
PIPE-FORK INNER
€ 127.50

44022
440221092
ref: 44022
CYLINDER-FORK
€ 71.50

44026
440261184
ref: 44026
SPRING-FRONT FORK
€ 53.50

44029
440291006
ref: 44029
GUIDE,SPRING
€ 9.00

44033
440331084
ref: 44033
COVER-FORK
€ 21.50

44033A
440331093
ref: 44033A
COVER-FORK,LH,F.BLACK
€ 67.50

44033B
440331094
ref: 44033B
COVER-FORK,RH,F.BLACK
€ 60.00

44037
440371082
ref: 44037
HOLDER-FORK UNDER
€ 190.00

44039
440391058
ref: 44039
HOLDER-FORK UPPER
€ 87.50

44041
44041078
ref: 44041
BOLT, FORK CYLINDER
€ 5.00

44045
44045051
ref: 44045
GASKET,FORK CYLINDER
€ 3.00

44045A
44045052
ref: 44045A
GASKET,DRAIN PLUG
€ 5.00

44065
440651011
ref: 44065
BUSHING,FORK
€ 12.00

44065A
440651052
ref: 44065A
BUSHING-FRONT FORK,IN
€ 13.50

44070
440705022
ref: 44070
DAMPER-ASSY
€ 659.00

49006
490061070
ref: 49006
BOOT,FORK,BLACK
€ 40.50

51044
510441014
ref: 51044
TUBE-ASSY,FRONT FORK
€ 138.50

56040
560401033
ref: 56040
LABEL-WARNING
€ 2.50

92002
920021285
ref: 92002
BOLT,SOCKET,8X40
€ 3.00

92002A
920021286
ref: 92002A
BOLT,SOCKET,10X40
€ 4.00

92022
920221111
ref: 92022
WASHER,FORK COVER
€ 7.00

92022A
920221310
ref: 92022A
WASHER,FORK SPRING
€ 3.00

92022B
920221552
ref: 92022B
WASHER,SPRING,8MM
€ 2.00

92022C
920221553
ref: 92022C
WASHER,SPRING,10MM
€ 1.50

92026
920261038
ref: 92026
SPACER,FORK
€ 4.50

92026A
920261112
ref: 92026A
SPACER,FORK SPRING
€ 10.50

92033
920331023
ref: 92033
CIRCLIP
€ 2.50

92033A
920331055
ref: 92033A
RING,SNAP
€ 3.50

92037
920371346
ref: 92037
BAND,FORK BOOT
€ 12.00

92049
920491063
ref: 92049
SEAL-OIL,FORK
€ 11.00

92055
920551034
ref: 92055
O RING
€ 3.50

92055A
920551131
ref: 92055A
RING-O,TUBE ASSY
€ 3.00

92075
920751137
ref: 92075
DAMPER RUBBER,FORK
€ 4.00

120
120S0830
ref: 120
BOLT-SOCKET,8X30,BLAC
€ 2.50

222
222C0518
ref: 222
SCREW-CSK-RD-CROS
€ 2.00

410
410F0800
ref: 410
WASHER-PLANE-SMALL,8M
€ 2.50

461
461K0800
ref: 461
WASHER-SPRING,8MM,BLA
€ 1.50
