ENGINE COVER(S)
Z750P7 GT750 1992 EUROPE UK

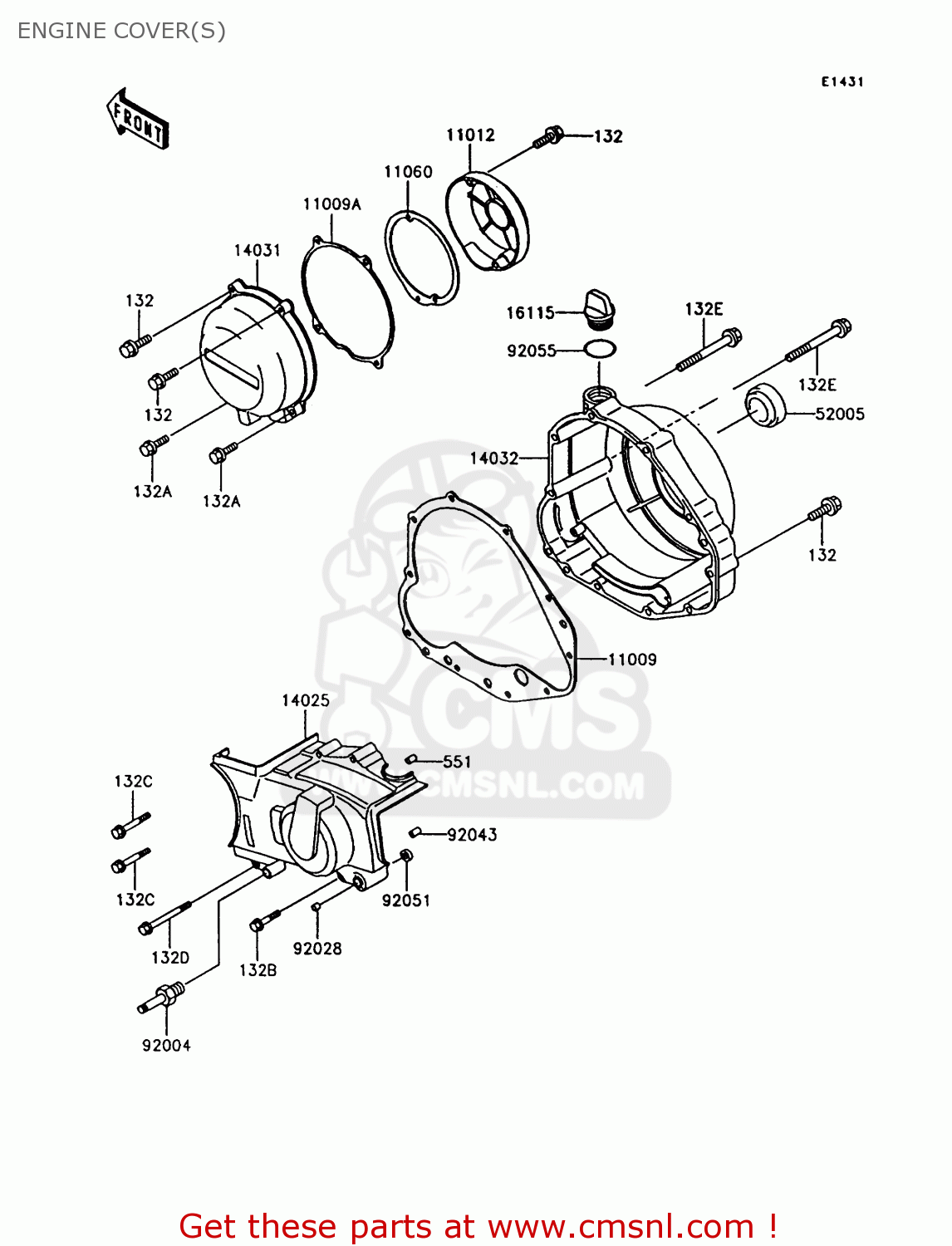

Engine cover(s) diagram Z750P7 GT750 1992 EUROPE UK
ENGINE COVER(S) Z750P7 GT750 1992 EUROPE UK
×
prices are in EUR
ref
part #
description
quantity
132
132E0630
ref: 132
BOLT-FLANGED-SMALL
€ 3.00
132A
132E0640
ref: 132A
BOLT-FLANGED-SMALL
€ 3.50
132B
132E0645
ref: 132B
BOLT-FLANGED-SMALL
€ 3.00
132C
132E0650
ref: 132C
BOLT-FLANGED-SMALL
€ 3.00
132D
132E0675
ref: 132D
BOLT-FLANGED-SMALL
€ 3.00
132E
132E0680
ref: 132E
BOLT-FLANGED-SMALL
€ 3.00
551
551A0814
ref: 551
PIN-DOWEL,8X14
€ 0.50
11009
110091984
ref: 11009
GASKET,CLUTCH COVER (NAS)
€ 20.00
11009A
110091987
ref: 11009A
GASKET,GENERATOR COVE (NAS)
€ 7.50
11012
110121377
ref: 11012
CAP,PULSING COIL
€ 35.50
11060
110601053
ref: 11060
GASKET,PULSING COIL C (NAS)
€ 4.50
14025
140251949
ref: 14025
COVER,GEAR CASE
€ 153.00
14031
140311167
ref: 14031
COVER-GENERATOR
€ 127.00
14032
140321091
ref: 14032
COVER-CLUTCH
€ 64.50
16115
161151062
ref: 16115
CAP-OIL FILLER
€ 13.50
52005
520051009
ref: 52005
GAUGE,OIL LEVEL
€ 12.00
92004
920041038
ref: 92004
STUD,CHANGE LEVER PIV
€ 14.50
92028
920281251
ref: 92028
BUSHING,13X15X20
€ 8.00
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
€ 0.50
92051
92051005A
ref: 92051
OIL SEAL,TB13225.5
€ 5.50
92055
92055049
ref: 92055
'0'RING,31MM
€ 2.50
