DRIVE SHAFT/FINAL GEAR

Z750P7 GT750 1992 EUROPE UK

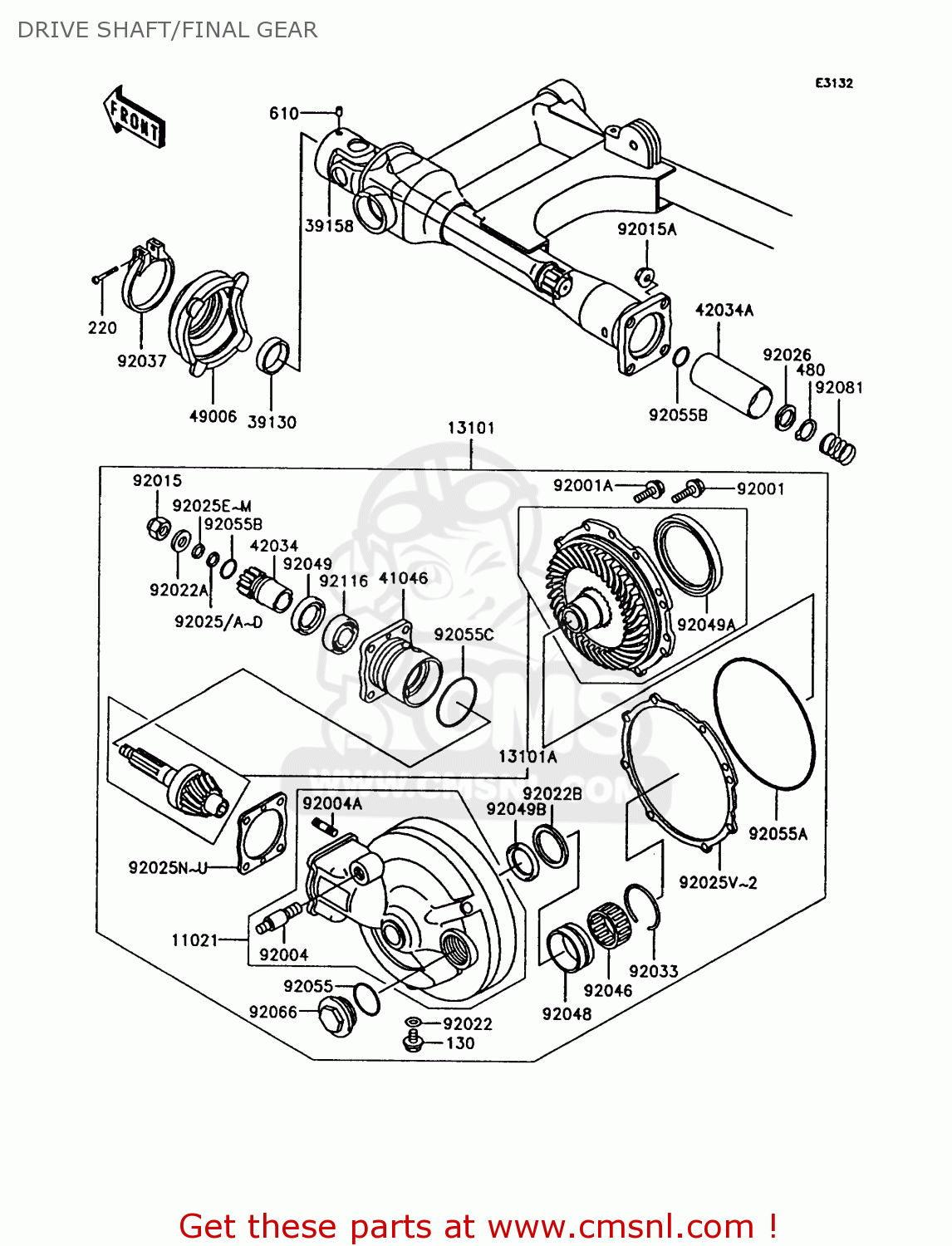

Drive shaft/final gear diagram Z750P7 GT750 1992 EUROPE UK

DRIVE SHAFT/FINAL GEAR Z750P7 GT750 1992 EUROPE UK
DRIVE SHAFT/FINAL GEAR Z750P7 GT750 1992 EUROPE UK
DRIVE SHAFT/FINAL GEAR Z750P7 GT750 1992 EUROPE UK
prices are in EUR
ref
part #
description
quantity
11021
11021107221
ref: 11021
CASE-ASSY,FINAL GEAR,
€ 828.00

13101
13101114921
ref: 13101
GEAR-ASSY,FINAL
€ 1,841.50

13101A
131015035
ref: 13101A
GEAR-ASSY,FINAL BEVEL
€ 1,113.50

39130
391301002
ref: 39130
SPRING,LEAF
€ 2.50

39158
391581005
ref: 39158
SHAFT-ASSY-DRIVE
€ 220.00

41046
410461015
ref: 41046
HOUSING-BEARING
€ 123.00

42034
420341030
ref: 42034
COUPLING,DRIVE SHAFT,
€ 79.00

42034A
420341031
ref: 42034A
COUPLING,DRIVE SHAFT,
€ 79.00

49006
490061059
ref: 49006
BOOT,PROPELLER SHAFT
€ 18.50

92001
920011095
ref: 92001
BOLT,8X28
€ 3.50

92001A
920011324
ref: 92001A
BOLT,FLANGED,8X25
€ 3.00

92004
920041047
ref: 92004
STUD,RR SHOCKABSORBER
€ 8.00

92004A
920041101
ref: 92004A
STUD,8X30,BLACK
€ 2.50

92015
920151182
ref: 92015
NUT,12MM
€ 3.50

92015A
920151183
ref: 92015A
NUT,FLANGED,8MM,BLACK
€ 1.00

92022
920221086
ref: 92022
WASHER,8.2X16X1.0
€ 2.00

92022A
920221293
ref: 92022A
WASHER,12.3X25X3.2
€ 3.50

92022B
920221294
ref: 92022B
WASHER,39X49.5X1
€ 3.50

92025
920251282
ref: 92025
SHIM,12.5X17X1.30
€ 5.50

92025A
920251283
ref: 92025A
SHIM,12.5X17X1.32
€ 5.00

92025B
920251284
ref: 92025B
SHIM,12.5X17X1.34
€ 5.00

92025C
920251285
ref: 92025C
SHIM,12.5X17X1.36
€ 5.00

92025D
920251286
ref: 92025D
SHIM,12.5X17X1.38
€ 5.00

92025E
920251287
ref: 92025E
SHIM,12.5X17X0.1
€ 3.50

92025F
920251288
ref: 92025F
SHIM,12.5X17X0.2
€ 3.50

92025G
920251289
ref: 92025G
SHIM,12.5X17X0.3
€ 3.50

92025H
920251290
ref: 92025H
SHIM,12.5X17X0.5
€ 3.50

92025I
920251291
ref: 92025I
SHIM,12.5X17X0.6
€ 4.50

92025J
920251292
ref: 92025J
SHIM,12.5X17X0.7
€ 4.50

92025K
920251293
ref: 92025K
SHIM,12.5X17X0.8
€ 4.50

92025L
920251294
ref: 92025L
SHIM,12.5X17X0.9
€ 4.50

92025M
920251295
ref: 92025M
SHIM,12.5X17X1.0
€ 4.50

92025N
920251312
ref: 92025N
SHIM,T=0.15
€ 6.00

92025O
920251313
ref: 92025O
SHIM,T=0.5
€ 5.50

92025P
920251314
ref: 92025P
SHIM,T=0.6
€ 5.50

92025Q
920251315
ref: 92025Q
SHIM,T=0.7
€ 5.50

92025R
920251316
ref: 92025R
SHIM,T=0.8
€ 6.50

92025S
920251317
ref: 92025S
SHIM,T=0.9
€ 6.50

92025T
920251318
ref: 92025T
SHIM,T=1.0
€ 6.50

92025U
920251319
ref: 92025U
SHIM,T=1.2
€ 5.50

130
130B0812
ref: 130
BOLT,FLANGED,8X12
€ 0.50

220
220B0430
ref: 220
SCREW-PAN-CROS
€ 0.50

480
480J2000
ref: 480
CIRCLIP-TYPE-C,20MM
€ 1.00

610
610A0406
ref: 610
ROLLER,4X6
€ 2.00

920250
920251341
ref: 920250
SHIM,T=0.9
€ 11.00

920251
920251342
ref: 920251
SHIM,T=1.0
€ 11.00

920252
920251343
ref: 920252
SHIM,T=1.2
€ 11.00

92025V
920251336
ref: 92025V
SHIM,T=0.15
€ 11.00

92025W
920251337
ref: 92025W
SHIM,T=0.5
€ 11.00

92025X
920251338
ref: 92025X
SHIM,T=0.6
€ 11.00

92025Y
920251339
ref: 92025Y
SHIM,T=0.7
€ 11.00

92025Z
920251340
ref: 92025Z
SHIM,T=0.8
€ 11.00

92026
920261106
ref: 92026
SPACER,DRIVE SHAFT
€ 4.00

92033
920331074
ref: 92033
RING-SNAP,52MM
€ 2.50

92037
920371112
ref: 92037
CLAMP,BOOT FITTING
€ 8.50

92046
920461037
ref: 92046
BRG,NDL,KT384620EG-B2
€ 45.00

92048
920481019
ref: 92048
RACE,ORT465021E01
€ 32.00

92049
920491084
ref: 92049
SEAL-OIL,SC28438
€ 8.00

92049A
920491085
ref: 92049A
SEAL-OIL,SC759510
€ 19.50

92049B
920491155
ref: 92049B
SEAL-OIL,SC32435.5
€ 9.50

92055
920551005
ref: 92055
ORING.VALVE
€ 3.00

92055A
920551039
ref: 92055A
0RING,I.D=150.4M/M
€ 7.50

92055B
920551119
ref: 92055B
RING-0,27MM
€ 2.50

92055C
920551120
ref: 92055C
RING-0,55MM
€ 3.00

92066
92066100621
ref: 92066
PLUG,OIL FILLER CAP,F
€ 9.00

92081
920811427
ref: 92081
SPRING,DRIVE SHAFT
€ 3.50

92116
921161010
ref: 92116
BEARING-ROLLER,4T3200
€ 33.00
