GEAR CHANGE MECHANISM

Z750P7 GT750 1992 EUROPE UK

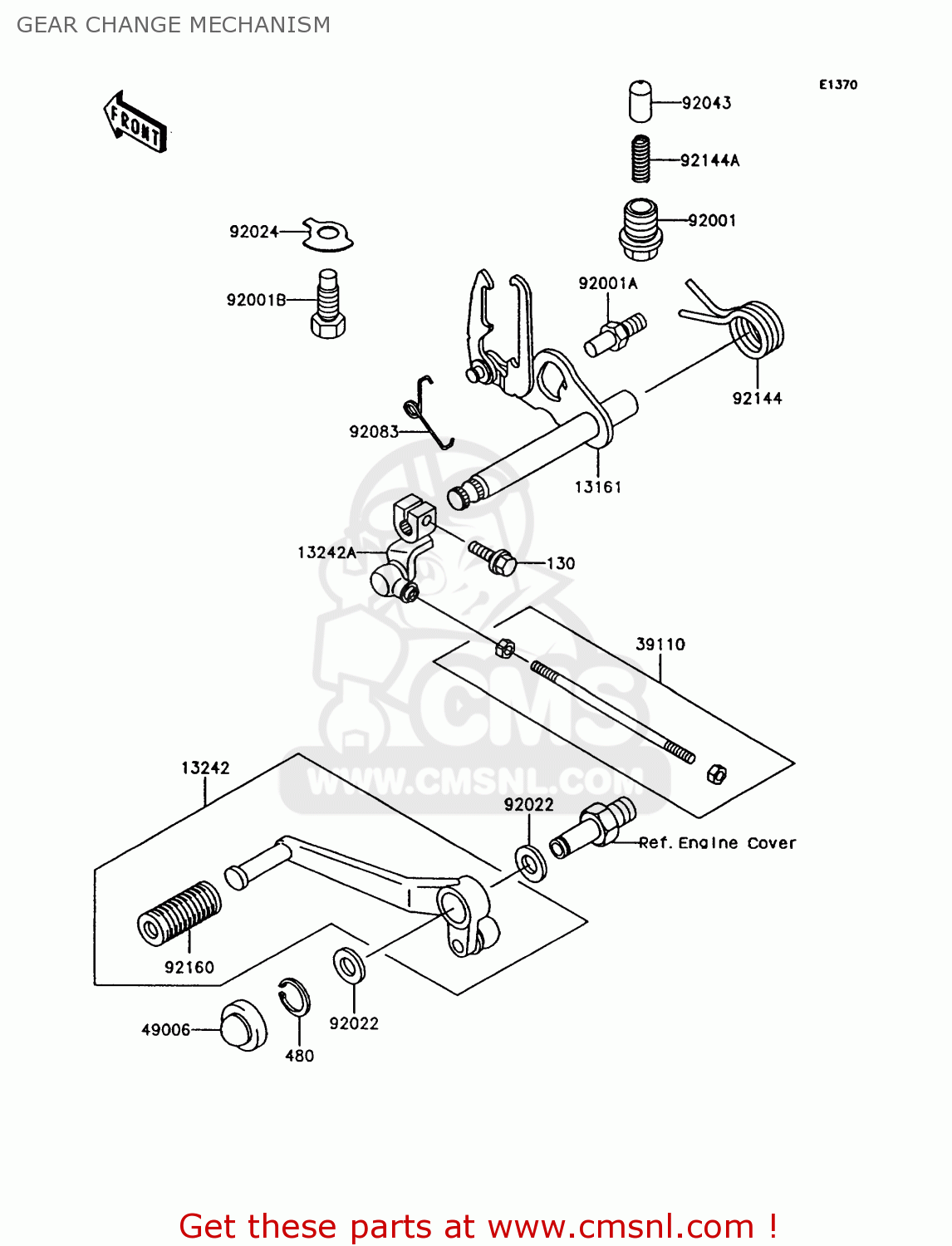

Gear change mechanism diagram Z750P7 GT750 1992 EUROPE UK

GEAR CHANGE MECHANISM Z750P7 GT750 1992 EUROPE UK
GEAR CHANGE MECHANISM Z750P7 GT750 1992 EUROPE UK
GEAR CHANGE MECHANISM Z750P7 GT750 1992 EUROPE UK
prices are in EUR
ref
part #
description
quantity
130
130S0620
ref: 130
BOLT-FLANGED,6X20,BLA
€ 2.00

480
480J1200
ref: 480
CIRCLIP,12MM
€ 0.50

13161
13161042
ref: 13161
LEVER ASSY,GEAR SFT
€ 81.50

13242
132421054
ref: 13242
LEVER-ASSY-CHANGE,PED
€ 28.50

13242A
132421074
ref: 13242A
LEVER-ASSY-CHANGE
€ 18.50

39110
391101010
ref: 39110
ROD-ASSY-TIE,CHANGE L
€ 6.50

49006
490061061
ref: 49006
BOOT,CHANGE LEVER
€ 4.50

92001
920011037
ref: 92001
BOLT,NEUTAL POSITION
€ 7.50

92001A
920011455
ref: 92001A
BOLT
€ 2.50

92001B
92001174
ref: 92001B
BOLT, HEX HEAD, 10X26
€ 3.50

92022
92022072
ref: 92022
WASHER-PLAIN,12MM
€ 2.00

92024
92024074
ref: 92024
WASHER, LOCK, 10MM
€ 2.00

92043
92043076
ref: 92043
PIN-NEUTRAL PISTON
€ 6.50

92083
92083018
ref: 92083
SPRING-KICK PAWL
€ 5.00

92144
921441074
ref: 92144
SPRING,CHANGE PEDAL R
€ 5.50

92144A
921441580
ref: 92144A
SPRING
€ 3.50

92160
921601036
ref: 92160
DAMPER,CHANGE PEDAL
€ 2.50
