MUFFLER(S)
Z750P7 GT750 1992 EUROPE UK

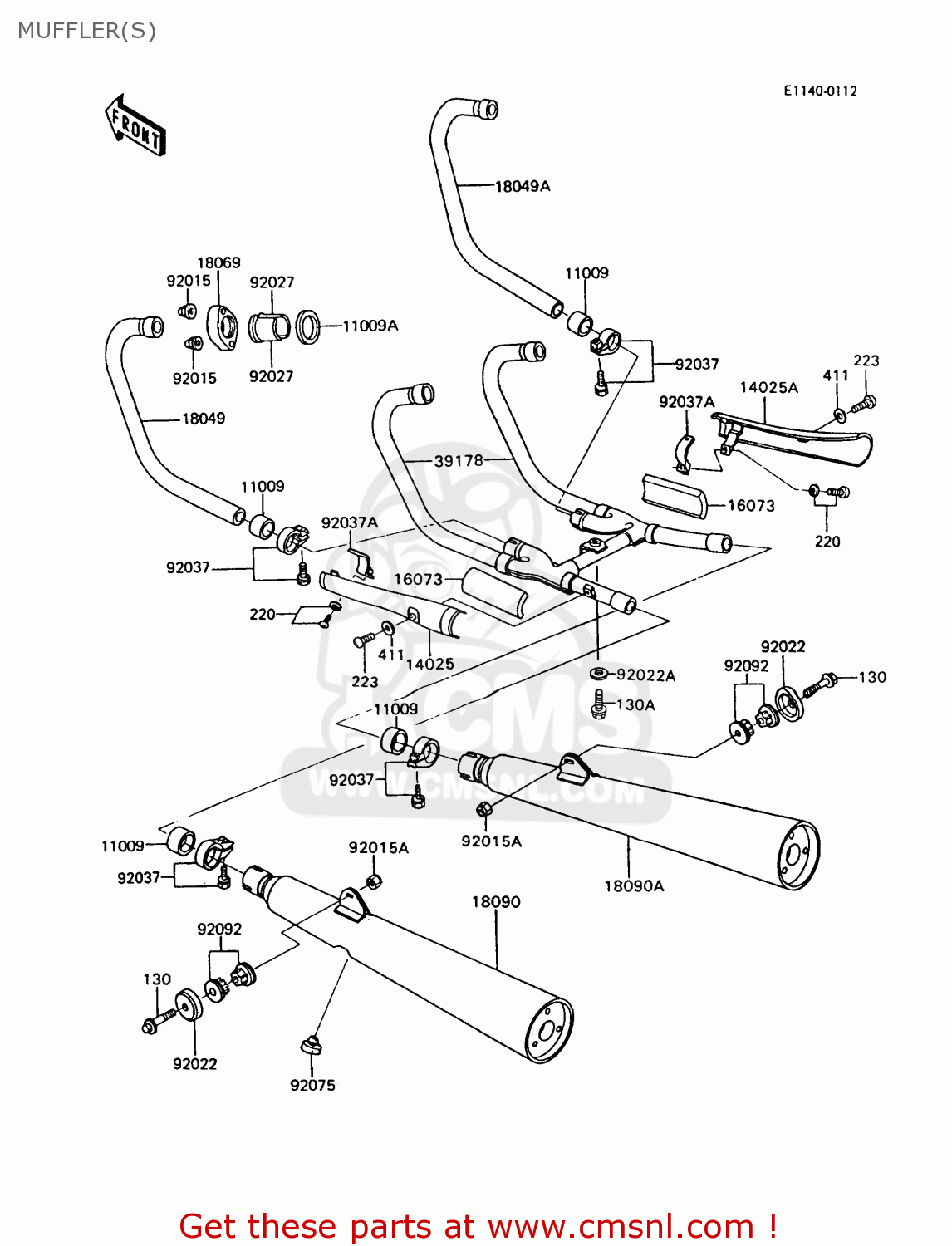

Muffler(s) diagram Z750P7 GT750 1992 EUROPE UK
MUFFLER(S) Z750P7 GT750 1992 EUROPE UK
×
prices are in EUR
ref
part #
description
quantity
130
130J1055
ref: 130
BOLT-FLANGED,10X55
€ 4.00
130A
130Y0850
ref: 130A
BOLT-FLANGED
€ 3.00
220
220E0610
ref: 220
SCREW-PAN HEAD,6X10
€ 2.50
223
223X0616
ref: 223
SCREW-PAN-WS-CROS
€ 2.00
411
411D0600
ref: 411
WASHER-PLAIN,6MM
€ 1.50
11009
110091667
ref: 11009
GASKET,EXHAUST PIPE C (NAS)
€ 15.00
11009A
110091866
ref: 11009A
GASKET,EXHAUST PIPE H (NAS)
€ 7.50
14025
140251853
ref: 14025
COVER,MUFFLER,LH
€ 61.00
14025A
140251854
ref: 14025A
COVER,MUFFLER,RH
€ 58.00
16073
160731093
ref: 16073
INSULATOR,MUFFLER COV
€ 8.50
18049
180491162
ref: 18049
PIPE-EXHAUST,#2,CR PL
€ 102.00
18049A
180491163
ref: 18049A
PIPE-EXHAUST,#3,CR PL
€ 109.50
18069
180691030
ref: 18069
HOLDER-EXHAUST PIPE
€ 18.00
18090
180901165
ref: 18090
BODY-COMP-MUFFLER,LH
€ 252.00
18090A
180901166
ref: 18090A
BODY-COMP-MUFFLER,RH
€ 252.00
39178
391781057
ref: 39178
MANIFOLD-COMP-EXHAUST
€ 314.00
92015
920151371
ref: 92015
NUT,CAP,8MM
€ 3.00
92015A
920151962
ref: 92015A
NUT
€ 2.00
92022
920221313
ref: 92022
WASHER,CUP TYPE,BLACK
€ 8.00
92022A
92022176
ref: 92022A
WASHER,10X22X3.2
€ 3.00
92027
920271142
ref: 92027
COLLAR,L=14.5
€ 3.00
92037
920371349
ref: 92037
CLAMP,42MM
€ 8.50
92037A
920371373
ref: 92037A
CLAMP,MUFFLER COVER,C
€ 5.50
92075
920751002
ref: 92075
DAMPER RUBBER,MAIN ST
€ 4.00
92092
920921013
ref: 92092
BUSHING-RUBBER,MUFFLE
€ 11.50
