OIL PUMP

Z750P7 GT750 1992 EUROPE UK

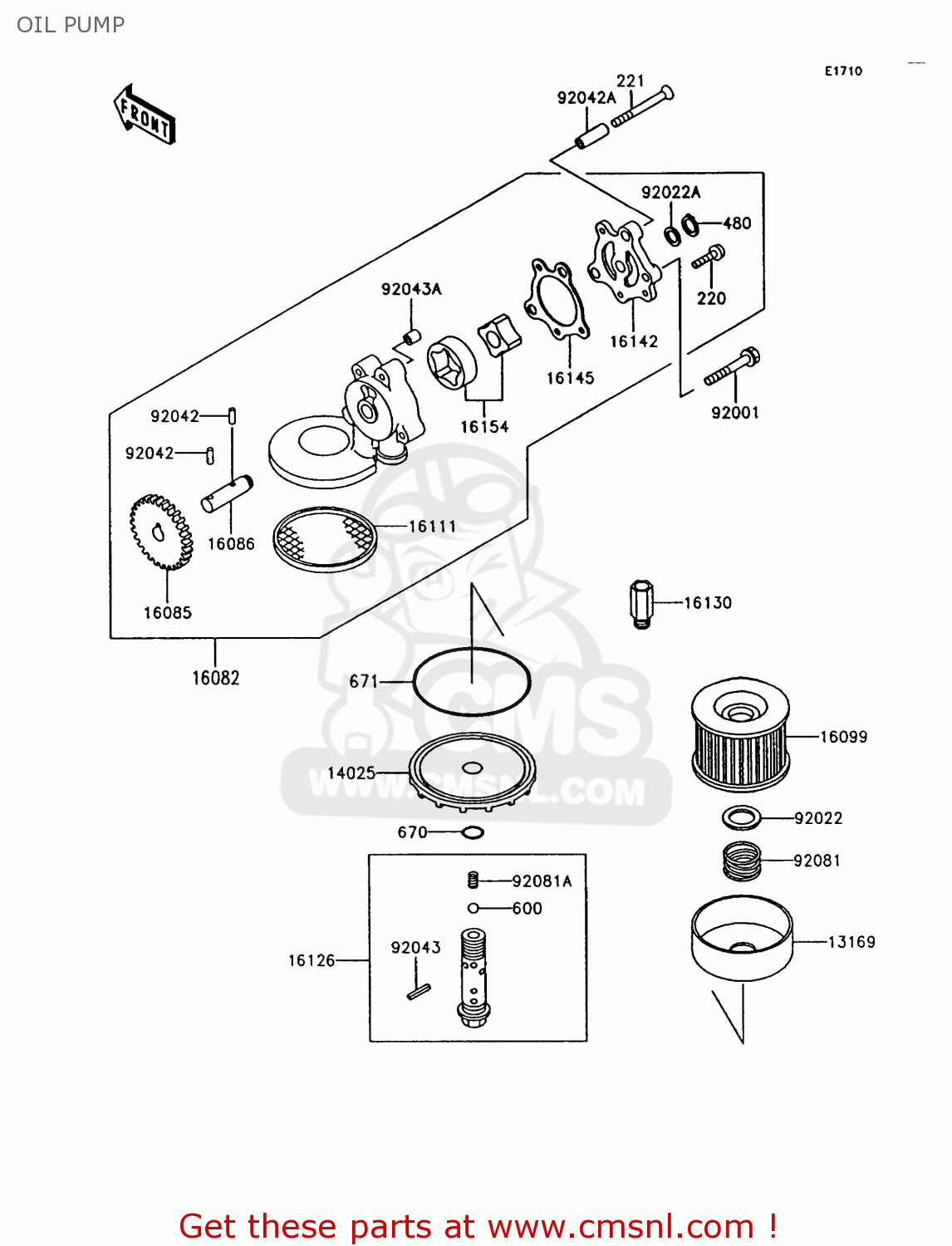

Oil pump diagram Z750P7 GT750 1992 EUROPE UK

OIL PUMP Z750P7 GT750 1992 EUROPE UK
OIL PUMP Z750P7 GT750 1992 EUROPE UK
OIL PUMP Z750P7 GT750 1992 EUROPE UK
prices are in EUR
ref
part #
description
quantity
220
220B0618
ref: 220
SCREW-PAN HEAD,6X18
€ 2.00

221
221B0655
ref: 221
SCREW,COUNTERSUNK HED
€ 2.00

480
480J1100
ref: 480
CIRCLIP-TYPE-C,11MM
€ 0.50

600
600A1200
ref: 600
BALL-STEEL,3/8'
€ 0.50

670
670B2016
ref: 670
O RING,16MM
€ 1.00

671
671B2590
ref: 671
O RING,90MM
€ 5.50

13169
131691110
ref: 13169
PLATE,OIL FILTER
€ 3.50

14025
140251422
ref: 14025
COVER,OIL FILTER,BLAC
€ 23.50

16082
16082064
ref: 16082
OIL PUMP ASSY
€ 153.00

16085
16085025
ref: 16085
GEAR, OIL PUMP, 57T
€ 29.00

16086
16086004
ref: 16086
SHAFT,OIL PUMP
€ 15.50

16099
16099003
ref: 16099
FILTER,OIL
€ 6.50

16111
16111004
ref: 16111
STRAINER,OIL PUMP
€ 20.50

16126
161261108
ref: 16126
VALVE,OIL FILTER
€ 25.00

16130
161301001
ref: 16130
RELEAF VALVE ASSY
€ 15.50

16142
16142005
ref: 16142
COVER, OIL PUMP
€ 20.00

16145
16145004
ref: 16145
GASKET,OIL PUMP COVER
€ 2.00

16154
16154003
ref: 16154
ROTOR-PUMP
€ 44.00

92001
92001165
ref: 92001
BOLT,HEX HEAD,6X45
€ 2.50

92022
920221012
ref: 92022
WASHER,20.5X30X1.0
€ 2.00

92022A
92022311
ref: 92022A
WASHER,PLAIN
€ 2.00

92042
92042041
ref: 92042
PIN,DOWEL
€ 3.50

92042A
92042050
ref: 92042A
PIN, DOWEL, 6.2X8X28
€ 2.00

92043
92043111
ref: 92043
SPRING PIN
€ 3.00

92043A
920431302
ref: 92043A
PIN,DOWEL,8X10
€ 0.50

92081
920811018
ref: 92081
SPRING,OIL FILTER
€ 2.50

92081A
92081109
ref: 92081A
SPRING
€ 6.00
