SUSPENSION/SHOCK ABSORBER

Z550G1 GT550 1983 EUROPE UK FR FG IT SD

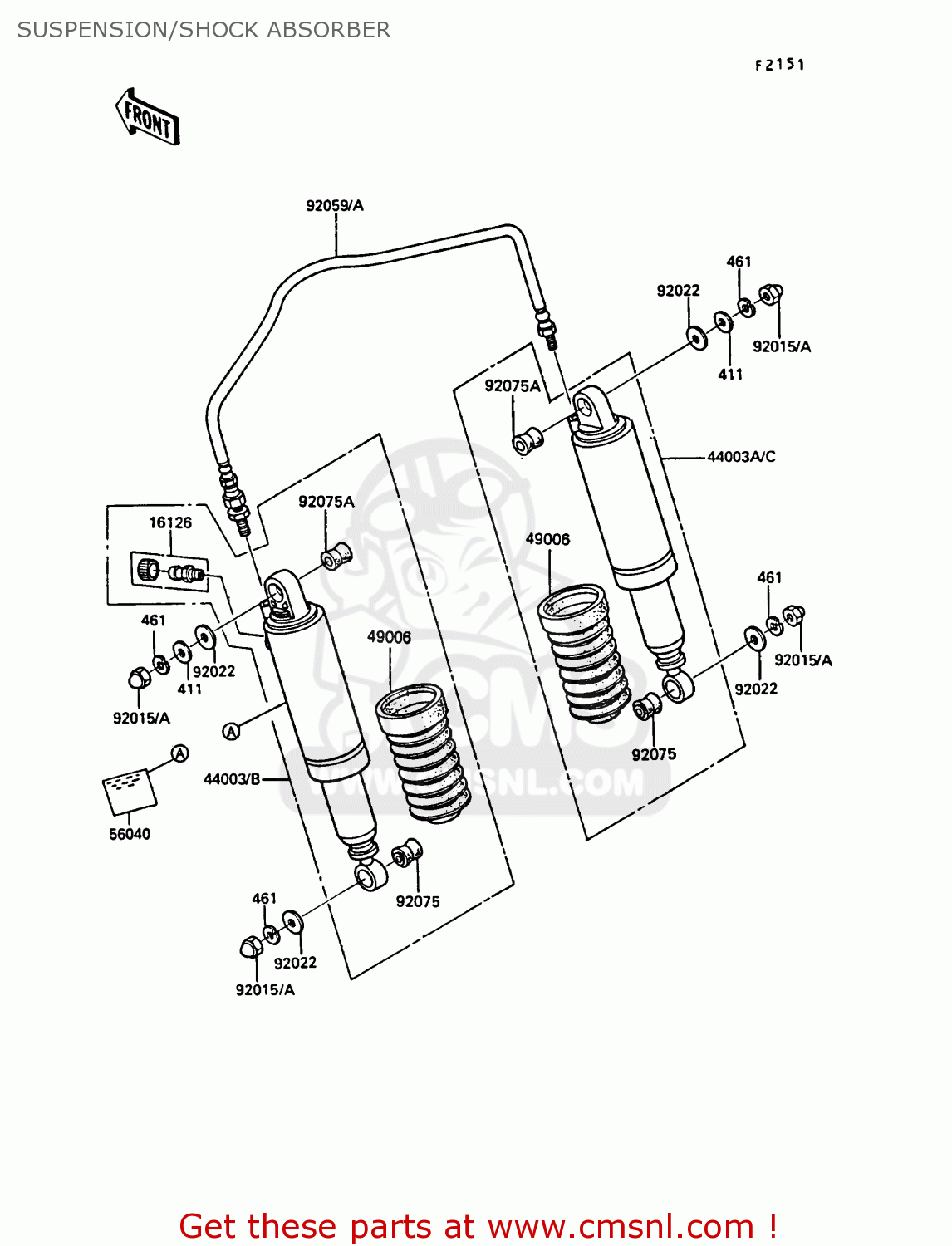

Suspension/shock absorber diagram Z550G1 GT550 1983 EUROPE UK FR FG IT SD

prices are in EUR

ref

part #

description

quantity

411

411F1000
ref: 411

WASHER-PLAIN,10MM,BLA

€ 2.50

461

461K1000
ref: 461

461K1000

16126

161261052
ref: 16126

VALVE,AIR

€ 22.00

44003

440031430
ref: 44003

DAMPER-ASSY,LH,BLACK

€ 267.00

44003A

440031431
ref: 44003A

DAMPER-ASSY,RH,BLACK

€ 301.50

49006

490061092
ref: 49006

BOOT,SHOCKABSORBER,BL

€ 40.50

92015

920151203
ref: 92015

NUT,CAP,10MM,BLACK

€ 7.00

92022

920221396
ref: 92022

WASHER,10.5X26X2.3,BL

€ 2.00

92059

920591255
ref: 92059

TUBE,SHOCKABSORBER

€ 64.50

92075

920751141
ref: 92075

BUSHING,SHOCK ABSORBE

€ 10.00

92075A

920751262
ref: 92075A

DAMPER,SHOCKABSORBER,

€ 6.50

SUSPENSION/SHOCK ABSORBER

all assemblies
