BRAKE PEDAL
Z550G1 GT550 1983 EUROPE UK FR FG IT SD

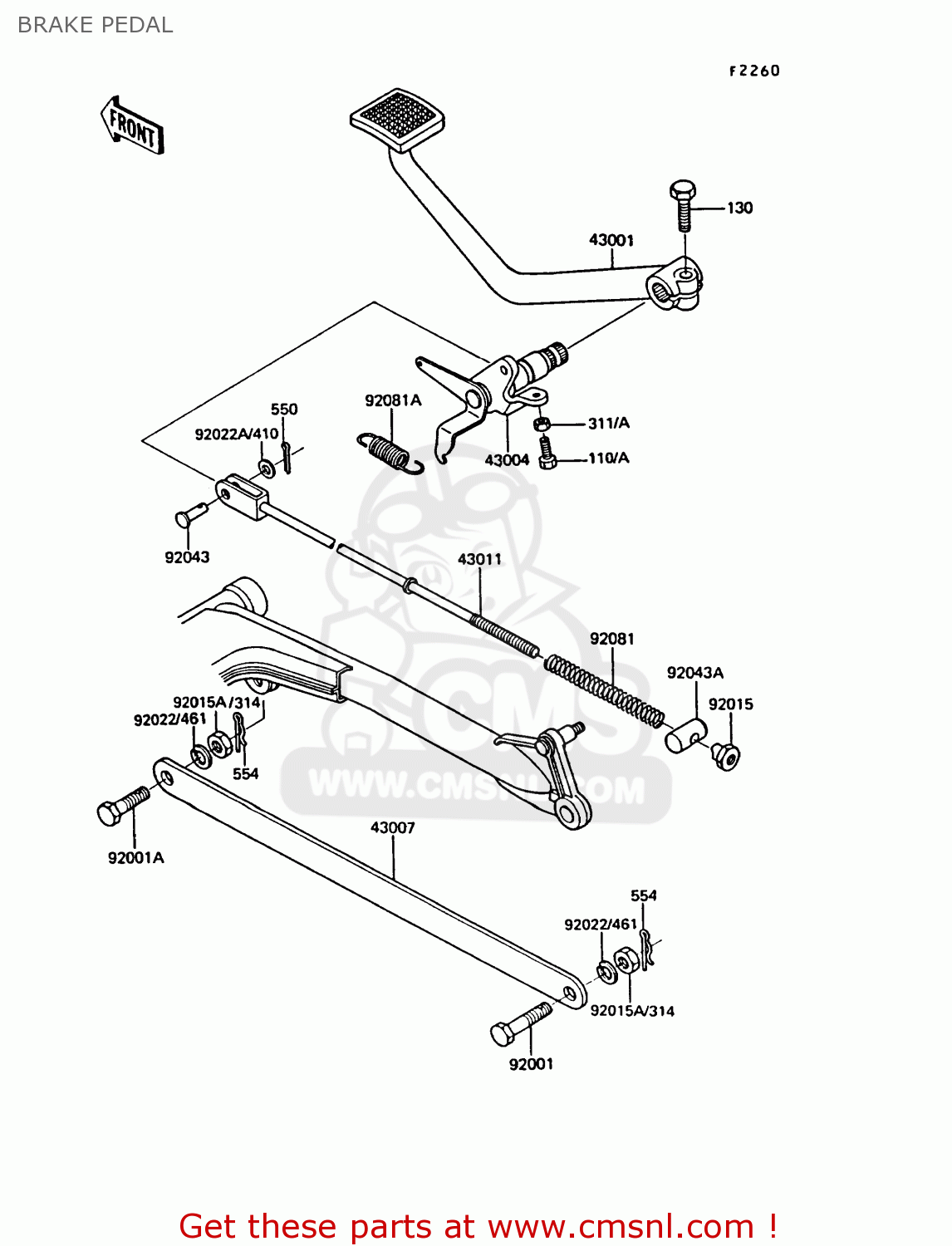

Brake pedal diagram Z550G1 GT550 1983 EUROPE UK FR FG IT SD
BRAKE PEDAL Z550G1 GT550 1983 EUROPE UK FR FG IT SD
×
prices are in EUR
ref
part #
description
quantity
110
110B0620
ref: 110
BOLT-HEX HEAD,6X20
€ 1.00
130
130J0825
ref: 130
BOLT-FLANGED,8X25,BLA
€ 2.00
311
311B0600
ref: 311
NUT,6MM
€ 0.50
314
314B1000
ref: 314
NUT,10MM
€ 0.50
410
410B0600
ref: 410
WASHER-PLAIN-SMALL,6M
€ 0.50
461
461F1000
ref: 461
WASHER-SPRING,10MM
€ 0.50
550
550D2015
ref: 550
PIN-COTTER,2.0X15
€ 1.00
554
554A0800
ref: 554
PIN-SNAP,8MM
€ 1.00
43001
430011105
ref: 43001
LEVER-BRAKE,PEDAL
€ 85.50
43004
430041045
ref: 43004
SHAFT-BRAKE
€ 38.50
43007
430071037
ref: 43007
ROD-TORQUE
€ 20.00
43011
430111060
ref: 43011
ROD-BRAKE
€ 14.50
92001
920011519
ref: 92001
BOLT,10X37
€ 4.50
92001A
92003096
ref: 92001A
BOLT-TRQ LINK 10X29
€ 7.00
92015
92015042
ref: 92015
NUT-BRAKE ROD ADJUST
€ 4.00
92043
92043064
ref: 92043
PIN-BRAKE ROD FITTING
€ 4.50
92043A
92043065
ref: 92043A
PIN-BRAKE ROD
€ 3.50
92081
43012001
ref: 92081
SPRING,BRAKE ROD
€ 3.00
92081A
920811147
ref: 92081A
SPRING,BRAKE PEDAL
€ 8.00
