CYLINDER HEAD

Z550G1 GT550 1983 EUROPE UK FR FG IT SD

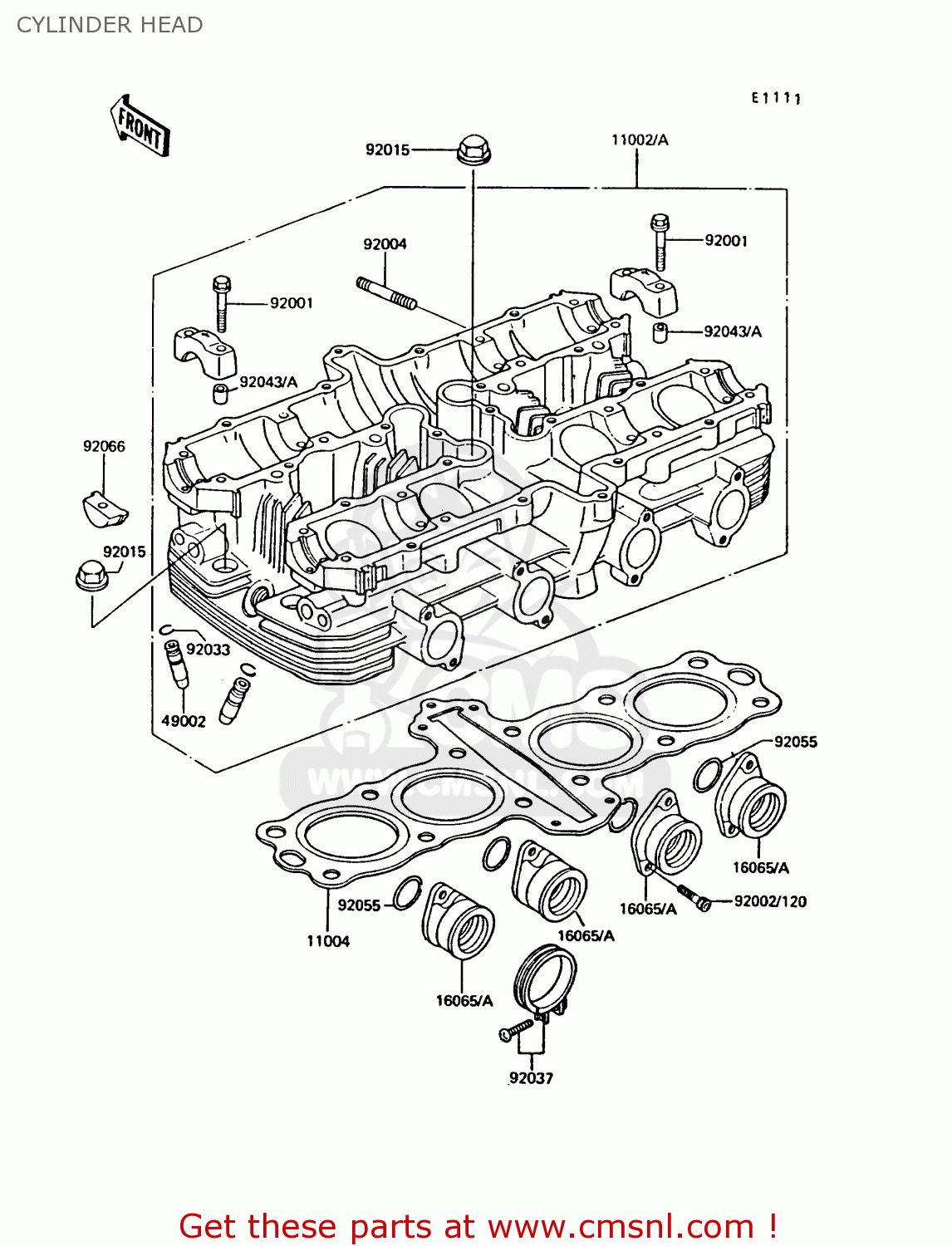

Cylinder head diagram Z550G1 GT550 1983 EUROPE UK FR FG IT SD

prices are in EUR

ref

part #

description

quantity

120

120S0615
ref: 120

BOLT-SOCKET,6X15

€ 4.00

11002

110021095
ref: 11002

HEAD-ASSY-CYLINDER,F.

€ 493.00

11004

110041021
ref: 11004

GASKET,CYL HEAD (MCA)

€ 72.00

16065

160651051
ref: 16065

HOLDER-CARBURETOR

€ 41.00

49002

490021005
ref: 49002

GUIDE-VALVE

€ 30.00

92001

920011105
ref: 92001

BOLT,HEX HEAD,6X38

€ 3.00

92004

92004066
ref: 92004

STUD, 6X27

€ 3.50

92015

920151174
ref: 92015

NUT,CAP,8MM,BLACK

€ 3.00

92033

92036023
ref: 92033

CIRCLIP,VALVE GUIDE

€ 0.50

92037

920371326
ref: 92037

CLAMP

€ 5.50

92043

92042007
ref: 92043

PIN-DOWEL

€ 4.00

92066

920661111
ref: 92066

PLUG,CAMSHAFT,11.35X1

€ 8.00
