FENDERS
Z550G1 GT550 1983 EUROPE UK FR FG IT SD

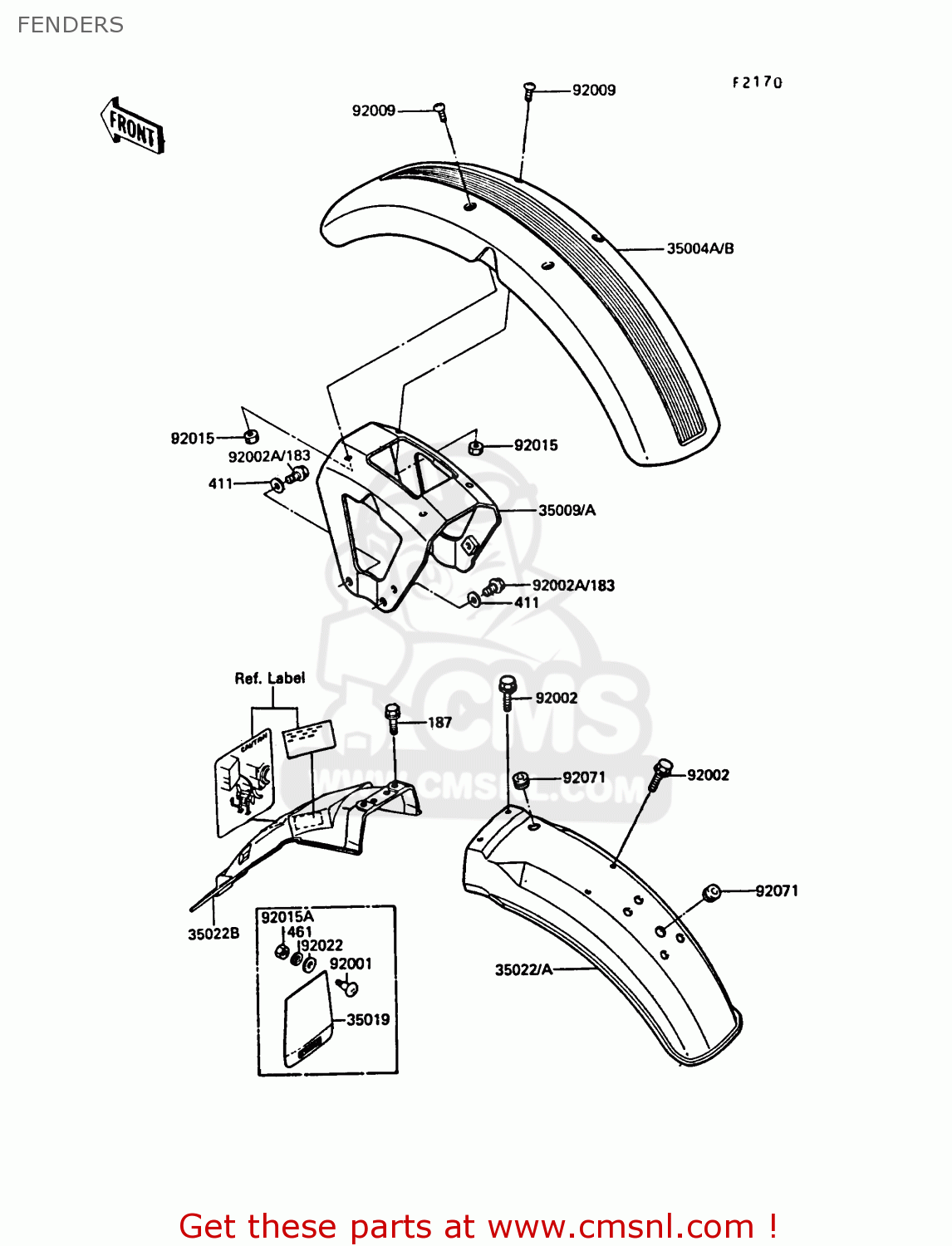

Fenders diagram Z550G1 GT550 1983 EUROPE UK FR FG IT SD
FENDERS Z550G1 GT550 1983 EUROPE UK FR FG IT SD
×
prices are in EUR
ref
part #
description
quantity
183
183B0816
ref: 183
BOLT-UPSET-WS-SMALL
€ 0.50
187
187B0618
ref: 187
BOLT-UPSET-WSP
€ 0.50
411
411B0500
ref: 411
WASHER-PLAIN,5MM
€ 0.50
461
461L0500
ref: 461
WASHER-SPRING
€ 0.50
35004A
350045017H3
ref: 35004A
FENDER-FRONT,C.W.RED
€ 162.50
35009
350091030H3
ref: 35009
BRACE,FENDER,C.W.RED
€ 62.00
35019
350191005
ref: 35019
FLAP,FENDER,RR
€ 15.50
35022
350221098H3
ref: 35022
FENDER-COMP-REAR,RR,C
€ 180.50
35022B
350221105
ref: 35022B
FENDER-COMP-REAR,FR
€ 54.00
92001
92001134
ref: 92001
BOLT,5X12
€ 3.00
92002
920021133
ref: 92002
BOLT,6X14
€ 0.50
92009
920091154
ref: 92009
SCREW,5X12
€ 2.50
92015
920151221
ref: 92015
NUT,LOCK,5MM
€ 4.00
92015A
920151446
ref: 92015A
NUT,5MM
€ 1.50
92022
920221581
ref: 92022
WASHER,5.5X20X1.2
€ 1.50
92071
92071099
ref: 92071
GROMMET, REAR FENDER
€ 3.00
