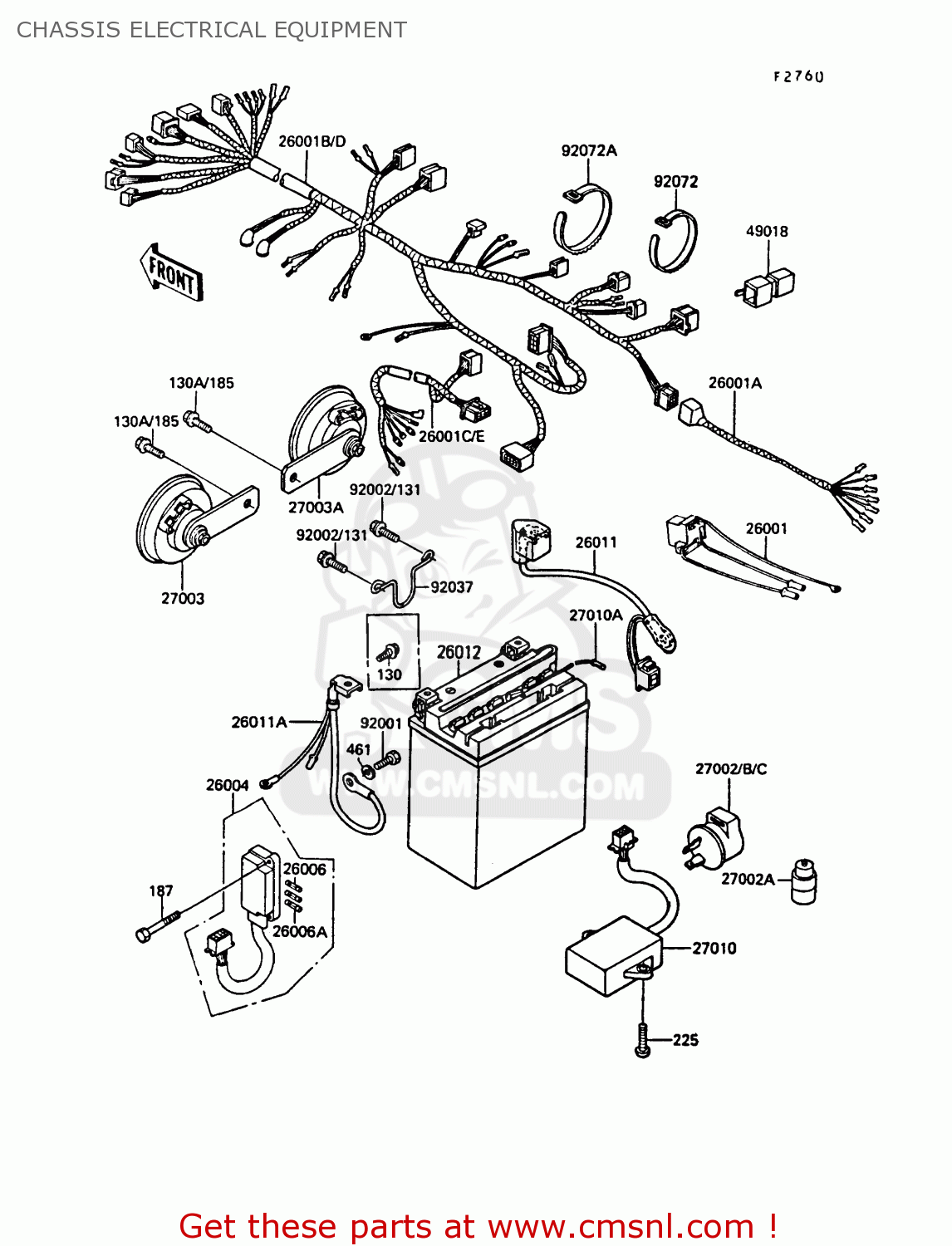

CHASSIS ELECTRICAL EQUIPMENT

ref

part #

description

quantity

131

131B0614
ref: 131

BOLT-FLANGED,6X14

€ 2.00

185

185C0814
ref: 185

BOLT-UPSET-WSP-SMALL

€ 2.50

187

187B0622
ref: 187

BOLT-UPSET-WSP

€ 2.50

225

225B0620
ref: 225

SCREW-PAN-WSP-CROS

€ 2.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

26001

260011042
ref: 26001
WG

HARNESS,RELAY

€ 13.00

26001A

260011348
ref: 26001A

HARNESS,RR

€ 29.00

26001B

260011512
ref: 26001B

HARNESS,MAIN

€ 191.00

26001C

260011513
ref: 26001C

HARNESS,ENGINE SUB

€ 22.50

26004

260041020
ref: 26004

FUSE-ASSY

€ 59.00

26006

26006003
ref: 26006

FUSE 10A

€ 3.00

26006A

26006005
ref: 26006A

FUSE 20A

€ 3.50

26011

260111181
ref: 26011

WIRE-LEAD,BATTERY(+)

€ 23.50

26011A

260111182
ref: 26011A

WIRE-LEAD,BATTERY(-)

€ 23.50

26012

260121211
ref: 26012

BATTERY,12V 12AH,FB12

€ 96.00

27002

27002011
ref: 27002
EUFRITSDUK

RELAY-ASSY,TURN SIGNA

€ 69.50

27002C

270021060
ref: 27002C
WG

RELAY-ASSY,TURN SIGNA

€ 65.50

27003

270031057
ref: 27003

HORN,LH

€ 62.00

27003A

270031058
ref: 27003A

HORN,RH

€ 32.50

27010

270101077
ref: 27010

SWITCH,TURN SIGNAL OP

€ 55.00

27010A

270101085
ref: 27010A

SWITCH,BATTERY

€ 32.50

92001

92001137
ref: 92001

BOLT,HEX HEAD,6M/M

€ 4.00

92037

920371383
ref: 92037

CLAMP,MAIN HARNESS

€ 6.50

92072

92072031
ref: 92072

BAND,MIDDLE

€ 3.00

92072A

92072032
ref: 92072A

BAND,LONG

€ 3.00
