FOOTRESTS

Z550G1 GT550 1983 EUROPE UK FR FG IT SD

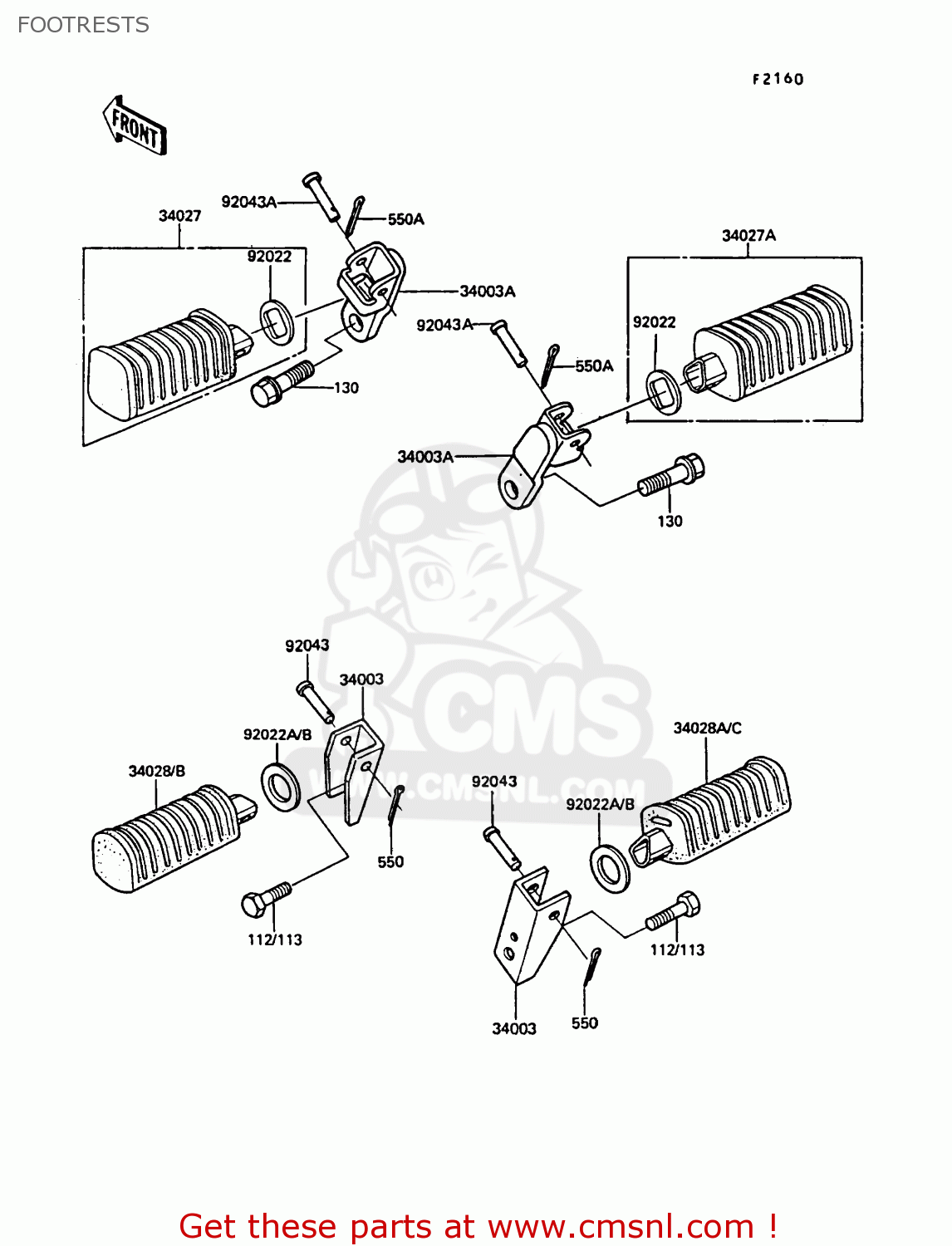

Footrests diagram Z550G1 GT550 1983 EUROPE UK FR FG IT SD

prices are in EUR

ref

part #

description

quantity

113

113C1030
ref: 113

BOLT-SMALL-FINE,10X30

€ 3.00

130

130J1035
ref: 130

BOLT-FLANGED,10X35

€ 3.50

550

550D2012
ref: 550

PIN,COTTER,2.0X12

€ 0.50

550A

550D2515
ref: 550A

PIN COTTER,295X15

€ 0.50

34003

340031025
ref: 34003

HOLDER-STEP,RR

€ 18.00

34003A

340031148
ref: 34003A

HOLDER-STEP,FR

€ 46.50

34027

340271108
ref: 34027

STEP-ASSY,FR,LH,BLACK

€ 30.00

34027A

340271109
ref: 34027A

STEP-ASSY,FR,RH,BLACK

€ 31.00

34028

340281041
ref: 34028

STEP,RR,LH,BLACK

€ 28.00

34028A

340281042
ref: 34028A

STEP,RR,RH,BLACK

€ 28.00

92022

920221314
ref: 92022

WASHER,STEP FITTING

€ 3.00

92022A

920221320
ref: 92022A

WASHER,22.5X30X2.6,BL

€ 2.50

92043

92043079
ref: 92043

PIN-REAR FOOTREST FIT

€ 5.50

92043A

92043115
ref: 92043A

PIN,FOOTREST BAR FIT

€ 6.50

FOOTRESTS

all assemblies
