BATTERY CASE
Z550G1 GT550 1983 EUROPE UK FR FG IT SD

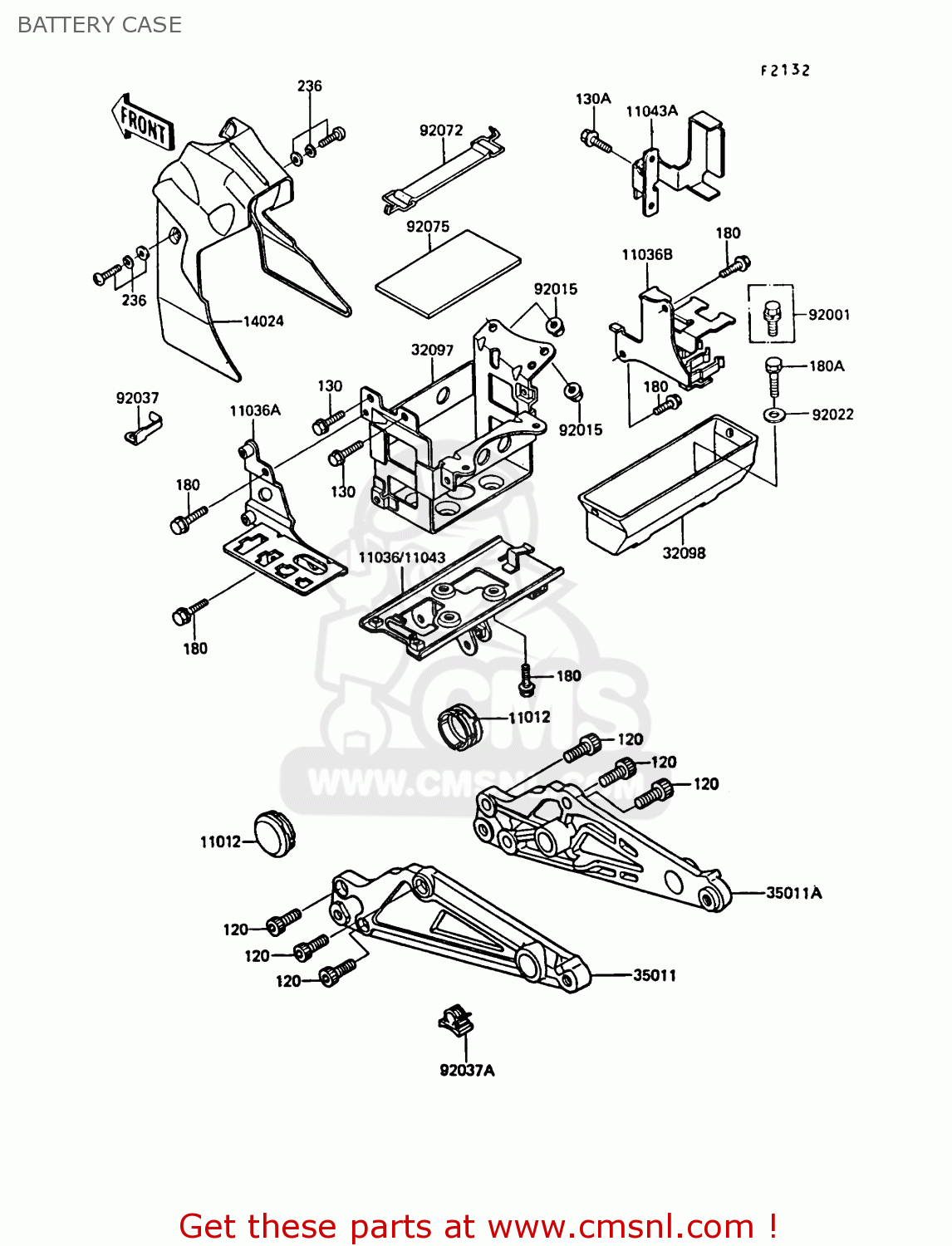

Battery case diagram Z550G1 GT550 1983 EUROPE UK FR FG IT SD
BATTERY CASE Z550G1 GT550 1983 EUROPE UK FR FG IT SD
×
prices are in EUR
ref
part #
description
quantity
120
120S0825
ref: 120
BOLT-SOCKET
€ 3.00
130
130B0610
ref: 130
BOLT,FLANGED,6X10
€ 0.50
180
180B0612
ref: 180
BOLT-UPSET-WS,6X12
€ 2.50
180A
180B0614
ref: 180A
BOLT-UPSET-WSP
€ 2.50
236
236C0635
ref: 236
SCREW-PAN-WSP-CROS
€ 2.50
11012
110121397
ref: 11012
CAP,SWING ARM SHAFT
€ 4.50
11036
110361826
ref: 11036
BRACKET-A,ELECTRIC,LW
€ 24.50
11036A
110361827
ref: 11036A
BRACKET-A,ELECTRIC,LH
€ 25.00
11036B
110361828
ref: 11036B
BRACKET-A,ELECTRIC,RH
€ 23.00
14024
140251551
ref: 14024
COVER,FUEL TANK,FR
€ 25.00
32097
320971062
ref: 32097
CASE-BATTERY
€ 90.00
32098
320981022
ref: 32098
CASE-TOOL
€ 19.00
35011
350111152
ref: 35011
STAY,LH
€ 167.50
35011A
350111153
ref: 35011A
STAY,RH
€ 152.00
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92022
92022116
ref: 92022
WASHER-PLAIN
€ 2.50
92037
920371246
ref: 92037
CLAMP
€ 4.00
92037A
920371340
ref: 92037A
CLAMP,LEAD WIRE
€ 7.50
92072
920721097
ref: 92072
BAND,BATTERY
€ 10.50
92075
920751076
ref: 92075
DAMPER,BATTERY BASE
€ 6.00
