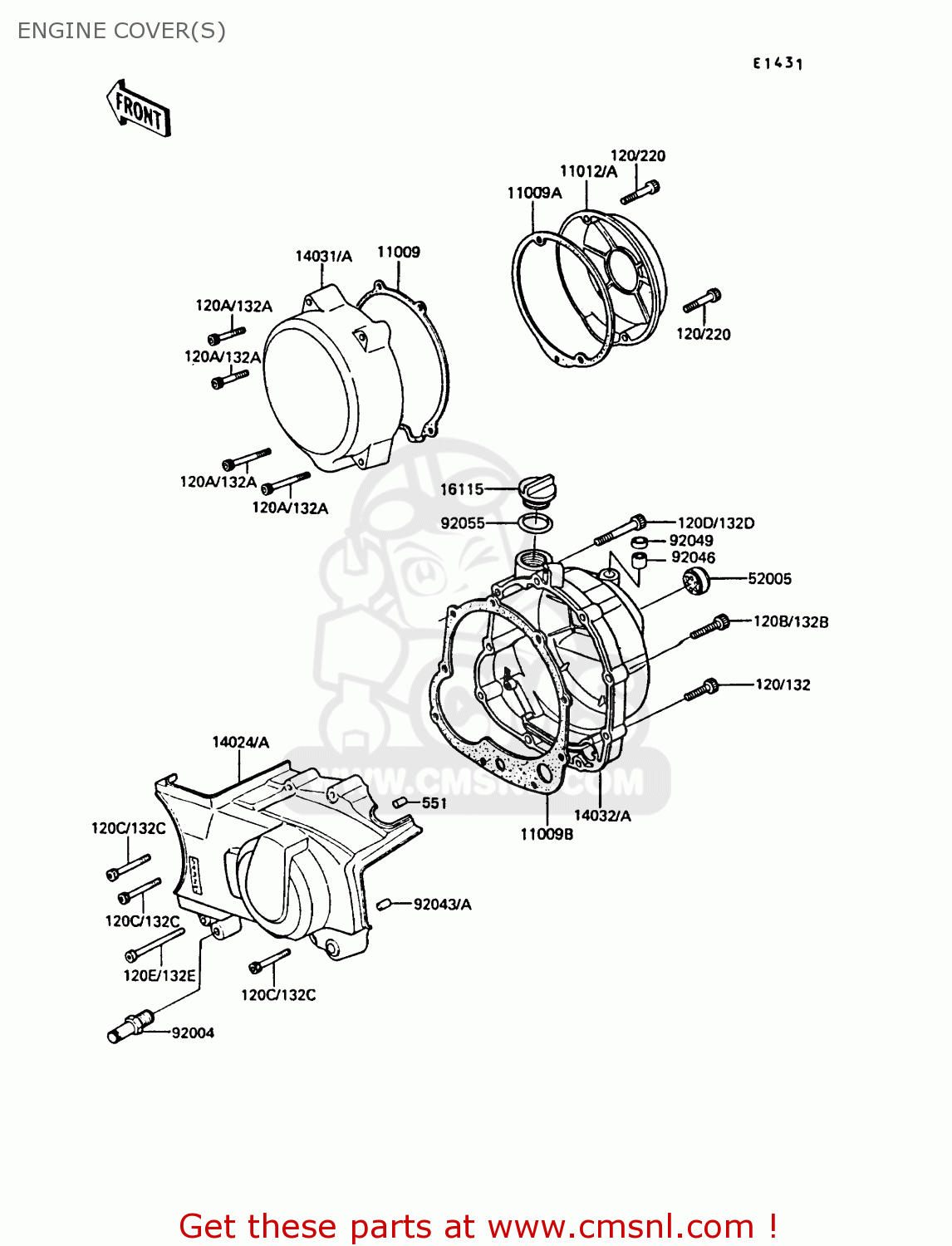

ENGINE COVER(S)

ref

part #

description

quantity

120

120S0630
ref: 120

BOLT-SOCKET,6X30,BLAC

€ 1.00

120A

120S0640
ref: 120A

BOLT-SOCKET

€ 1.00

120B

120S0645
ref: 120B

BOLT-SOCKET,6X45,BLAC

€ 2.50

120C

120S0650
ref: 120C

BOLT-SOCKET,6X50,BLAC

€ 4.00

120D

120S0660
ref: 120D

BOLT-SOCKET,6X60

€ 2.50

120E

120S0680
ref: 120E

BOLT-SOCKET,6X80,BLAC

€ 2.50

551

551A0814
ref: 551

PIN-DOWEL,8X14

€ 0.50

11009

110091055
ref: 11009

GASKET,GENERATOR COV (MCA)

€ 7.00

11009A

110091164
ref: 11009A

GASKET,BRKR POINT CAP (MCA)

€ 4.50

11009B

110091307
ref: 11009B

GASKET,CLUTCH COVER (MCA)

€ 16.00

11012

110121214
ref: 11012

CAP,PULSING COIL,BLAC

€ 38.50

14024

140251566
ref: 14024

COVER,GEAR CASE,BLACK

€ 115.50

14031

140311078
ref: 14031

COVER-GENERATOR,BLACK

€ 130.50

14032

140321102
ref: 14032

COVER-CLUTCH

€ 126.00

16115

161151009
ref: 16115

CAP-OIL FILLER

€ 10.00

52005

520051009
ref: 52005

GAUGE,OIL LEVEL

€ 12.00

92004

920041038
ref: 92004

STUD,CHANGE LEVER PIV

€ 14.50

92043

92042007
ref: 92043

PIN-DOWEL

€ 4.00

92055

92055049
ref: 92055

'0'RING,31MM

€ 2.50

all assemblies
