METER(S)

Z550G1 GT550 1983 EUROPE UK FR FG IT SD

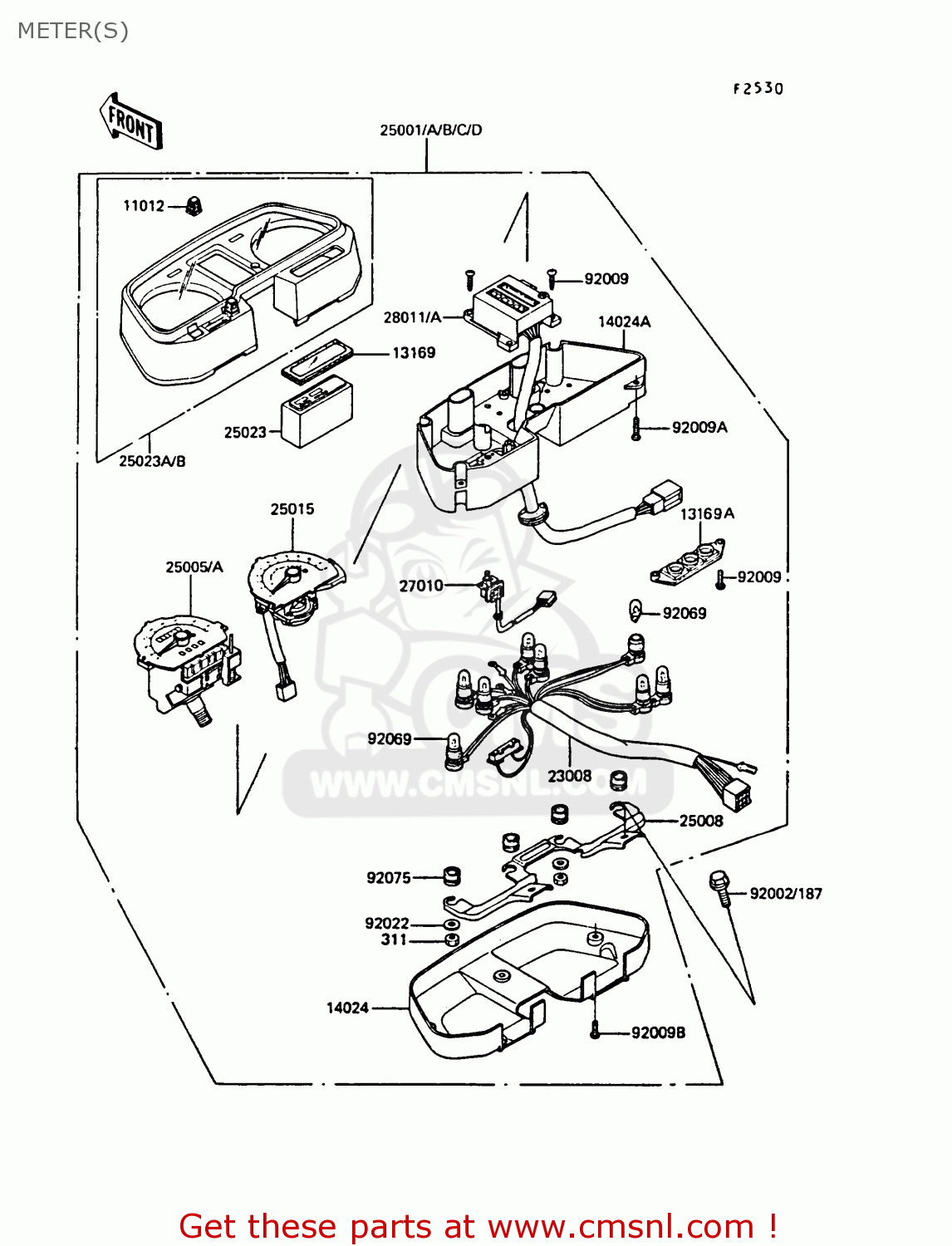

Meter(s) diagram Z550G1 GT550 1983 EUROPE UK FR FG IT SD

METER(S) Z550G1 GT550 1983 EUROPE UK FR FG IT SD
METER(S) Z550G1 GT550 1983 EUROPE UK FR FG IT SD
METER(S) Z550G1 GT550 1983 EUROPE UK FR FG IT SD
prices are in EUR
ref
part #
description
quantity
187
187B0614
ref: 187
BOLT-UPSET-WSP
187B0614
€ 0.50
11012
110121291
ref: 11012
CAP,TRIP RESET,SQUARE
110121291
€ 11.00
13169
131691508
ref: 13169
PLATE,PILOT BOX
131691508
€ 12.50
13169A
131691556
ref: 13169A
PLATE,BULB SOCKET
131691556
€ 7.50
14024
140251473
ref: 14024
COVER,METER,LWR
140251473
€ 24.50
14024A
140251970
ref: 14024A
COVER,METER UNIT
140251970
€ 57.50
23008
230081156
ref: 23008
SOCKET-ASSY,METER
€ 94.00
25001
250011355
ref: 25001
EUFRITSDWG
METER-ASSY,KPH
€ 771.50
25001A
250011356
ref: 25001A
UK
METER-ASSY,MPH
€ 2,052.00
25005
250051191
ref: 25005
EUFRITSDWG
SPEEDOMETER,KPH
250051191
€ 123.00
25005A
250051192
ref: 25005A
UK
SPEEDOMETER,MPH
250051192
€ 149.50
25008
250081057
ref: 25008
BRACKET-METER
250081057
€ 36.00
25015
250151230
ref: 25015
TACHOMETER
250151230
€ 169.00
25023
250231041
ref: 25023
COVER-METER CASE
250231041
€ 19.50
25023A
250231124
ref: 25023A
COVER-METER CASE,UPP
250231124
€ 90.00
27010
270101062
ref: 27010
SWITCH,TACHOMETER & V
270101062
€ 26.50
28011
280111028
ref: 28011
METER,FUEL&WARNING
280111028
€ 218.50
92009
920091140
ref: 92009
SCREW,TAPPING,4X14
920091140
€ 2.50
92009A
920091141
ref: 92009A
SCREW,TAPPING,4X20
920091141
€ 3.00
92009B
920091142
ref: 92009B
SCREW,TAPPING,4X12
920091142
€ 3.00
92022
92022263
ref: 92022
WASHER,PLAIN,6MM
92022263
€ 1.50
92069
920691007
ref: 92069
BULB,12V3.4W
920691007
€ 2.50
92075
920751385
ref: 92075
DAMPER,METER BRACKET
920751385
€ 3.00
311
311B0500
ref: 311
NUT-HEX
311B0500
€ 0.50
