REAR WHEEL/HUB/BRAKE/CHAIN ('82-
KZ550A1 1980 USA CANADA

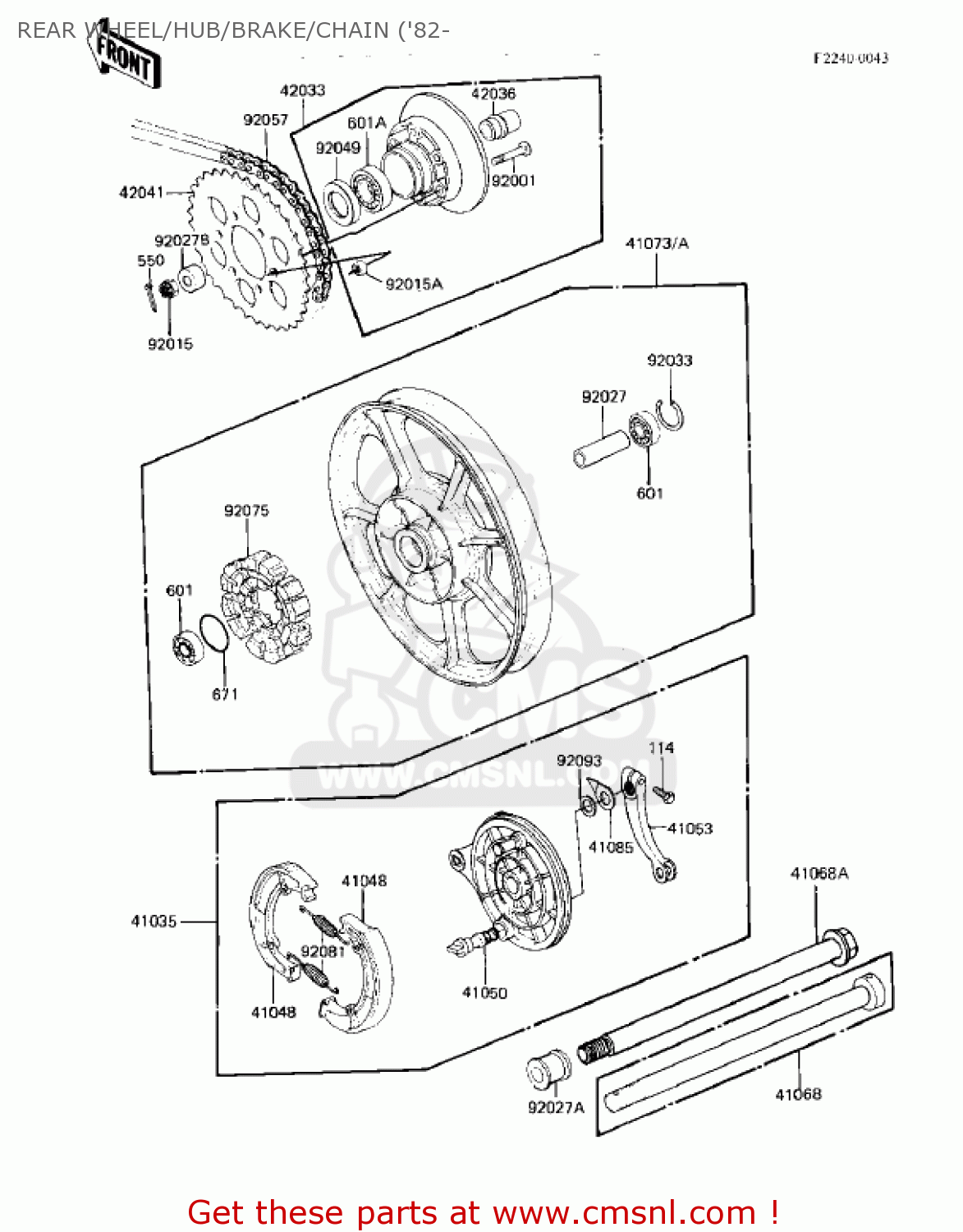

Rear wheel/hub/brake/chain ('82- diagram KZ550A1 1980 USA CANADA
REAR WHEEL/HUB/BRAKE/CHAIN ('82- KZ550A1 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
41035
410351055
ref: 41035
PANEL ASY,RR BRK,BLCK
€ 335.50
41048
42019012
ref: 41048
SHOE, BRAKE (MCA)
€ 26.00
41050
41050017
ref: 41050
CAM-BRAKE
€ 25.50
41053
42029039
ref: 41053
LEVER REAR BRAKE CAM
€ 37.00
41068
410681086
ref: 41068
AXLE,RR
€ 49.00
41068A
410681086
ref: 41068A
AXLE,RR
€ 49.00
41073
410731103
ref: 41073
SOLID WHEEL ASSY,RR
€ 522.50
41073A
41073119621
ref: 41073A
WHEEL ASSEMBLY,REAR,FLAT BLACK
€ 330.00
41085
41085004
ref: 41085
INDICATOR,BRAKE SHOE
€ 10.00
42033
42008032
ref: 42033
COUPLING ASSY,REAR HB
€ 132.50
42036
42036026
ref: 42036
SLEEVE,RR HUB COUPLIN
€ 39.00
42041
420411045
ref: 42041
SPROCKET,REAR,40T
€ 50.50
92001
92003087
ref: 92001
BOLT-RR SPRCKT 10X49
€ 4.00
92015
92015055
ref: 92015
NUT,16MM
€ 8.00
92015A
920151415
ref: 92015A
NUT,10MM
€ 3.00
92027
42010033
ref: 92027
COLLAR,REAR HUB,L=61
€ 14.50
92027A
42032017
ref: 92027A
COLLAR-REAR AXLE
€ 10.50
92027B
42032067
ref: 92027B
COLLAR,REAR AXLE,LH,L
€ 15.50
92033
920331042
ref: 92033
CIRCLIP,47M/M
€ 4.00
92049
92050076
ref: 92049
OIL SEAL, # 38629
€ 13.50
92057
920571050
ref: 92057
CHAIN ASSY,DRIVE,100L
€ 82.50
92075
42014026
ref: 92075
DAMPER,RR HUB SHOCK
€ 51.00
92081
41049012
ref: 92081
SPRING, BRKE SHOE
€ 6.00
92093
41051003
ref: 92093
DUST SHIELD-BRAKE CAM
€ 2.50
114
114G0828
ref: 114
BOLT-SMALL,8X28
€ 2.50
550
550D4035
ref: 550
PIN-COTTER,4.0X35
€ 1.00
601
601B6303ZZ
ref: 601
BEARING-BALL,#6303ZZC
€ 32.50
601A
601B6305
ref: 601A
BEARING-BALL,#6305C3
€ 30.00
671
671B2555
ref: 671
O RING,55MM
€ 4.00
