BATTERY CASE/TOOL CASE ('82-'83
KZ550A1 1980 USA CANADA

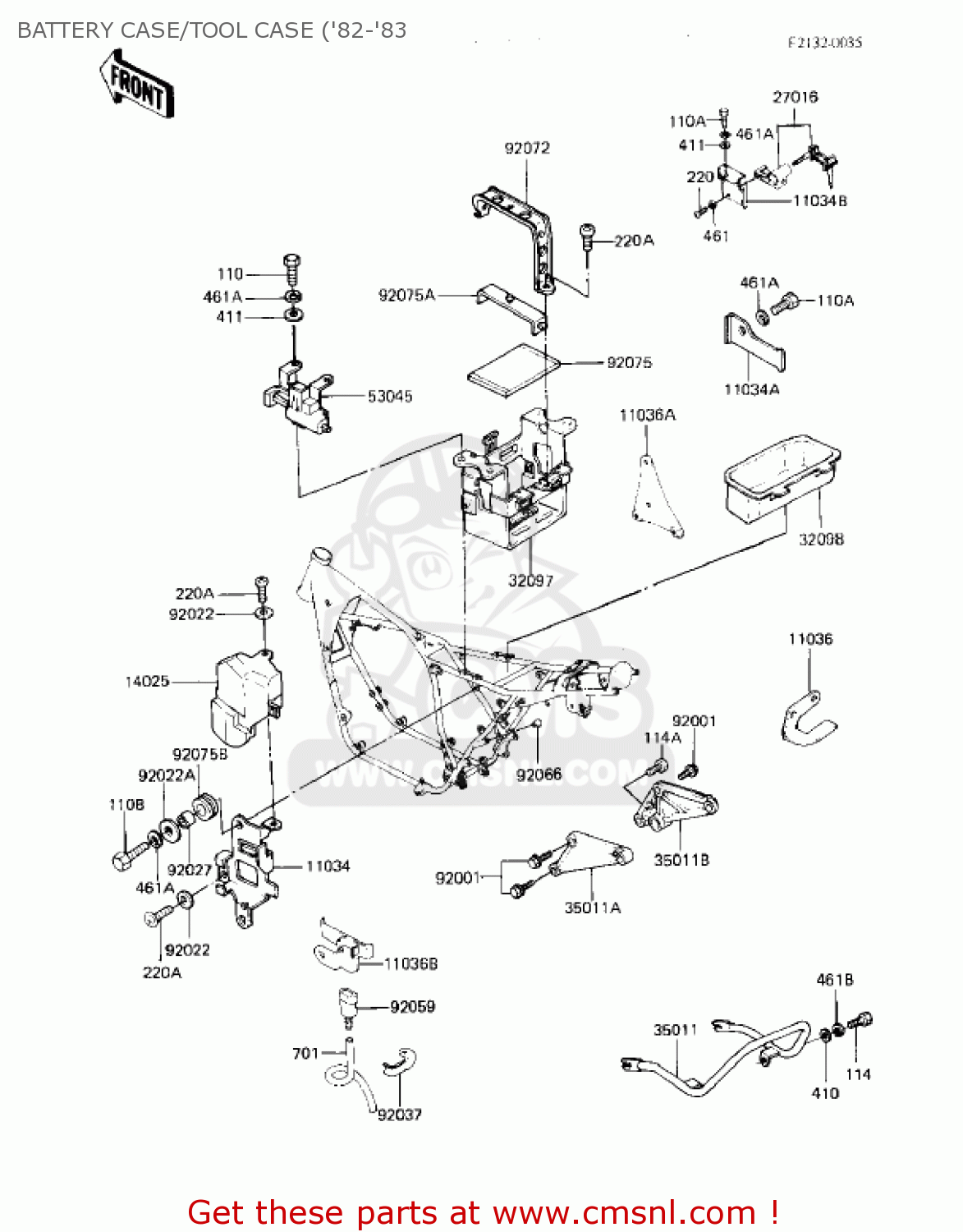

Battery case/tool case ('82-'83 diagram KZ550A1 1980 USA CANADA
BATTERY CASE/TOOL CASE ('82-'83 KZ550A1 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11034
110341239
ref: 11034
BRACKET,ELECTRO BASE
€ 16.00
11034A
110341883
ref: 11034A
BRACKET,IGNITER RELAY
€ 2.00
11034B
110341926
ref: 11034B
BRACKET,HELMET LOCK
€ 14.00
11036
110361026
ref: 11036
FUSE BRACKET
€ 3.00
11036A
110361137
ref: 11036A
RESERVOIR LIGHT BRACKET
€ 8.00
11036B
110361470
ref: 11036B
BRACKET,BATTERY
€ 7.00
14025
140251049
ref: 14025
COVER,ELECTRO
€ 15.50
27016
270165038
ref: 27016
LOCK-ASSY,HELMET
€ 67.50
32097
320971029
ref: 32097
CASE-BATTERY
€ 70.50
32098
320981005
ref: 32098
CASE-TOOL
€ 20.50
35011
350111074
ref: 35011
STAY,RR
€ 150.50
35011A
350111076
ref: 35011A
STAY,MUFFLER,LH
€ 106.50
35011B
350111077
ref: 35011B
STAY,MUFFLER,RH
€ 106.50
53045
530451001
ref: 53045
HOOK ASSY,HELMET
€ 31.00
92001
920011095
ref: 92001
BOLT,8X28
€ 4.50
92022
92022024
ref: 92022
WASHER,7X16X1.2
€ 2.50
92022A
92022125
ref: 92022A
WASHER,6.5X20X1.6
€ 1.00
92027
92027165
ref: 92027
COLLAR,6.5X8.5X7.5
€ 3.00
92037
920371246
ref: 92037
CLAMP
€ 4.00
92059
92059101
ref: 92059
TUBE,CONNECTOR
€ 6.00
92066
920661077
ref: 92066
CAP,REAR VIEW MIRROR
€ 3.00
92072
920721019
ref: 92072
BAND,BATTERY
€ 6.50
92075
920751076
ref: 92075
DAMPER,BATTERY BASE
€ 6.00
92075A
920751113
ref: 92075A
DAMPER,BATTERY BAND
€ 4.50
92075B
92075149
ref: 92075B
DAMPER
€ 6.00
110
112G0612
ref: 110
BOLT-UPSET
€ 2.50
110A
112B0614
ref: 110A
BOLT-UPSET 6X14
€ 2.50
110B
112G0620
ref: 110B
BOLT 6X20
€ 1.00
114
115G0816
ref: 114
BOLT-HEX,HEAD 8X16
€ 0.50
114A
114G0830
ref: 114A
BOLT,HEX HEAD,8X30
€ 3.00
220
220B0508
ref: 220
SCREW-PAN-CROS,5X8
€ 0.50
220A
220B0612
ref: 220A
SCREW-PAN HEAD,6X12
€ 1.00
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
€ 0.50
411
411B0600
ref: 411
WASHER-PLAIN,6MM
€ 0.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
€ 0.50
461A
461F0600
ref: 461A
WASHER-SPRING,6MM
€ 0.50
461B
461F0800
ref: 461B
WASHER-SPRING,8MM
€ 0.50
701
701Q06530
ref: 701
TUBE-PVC,6X530
€ 4.00
