MUFFLERS ('80-'81 A2/A3)
KZ550A1 1980 USA CANADA

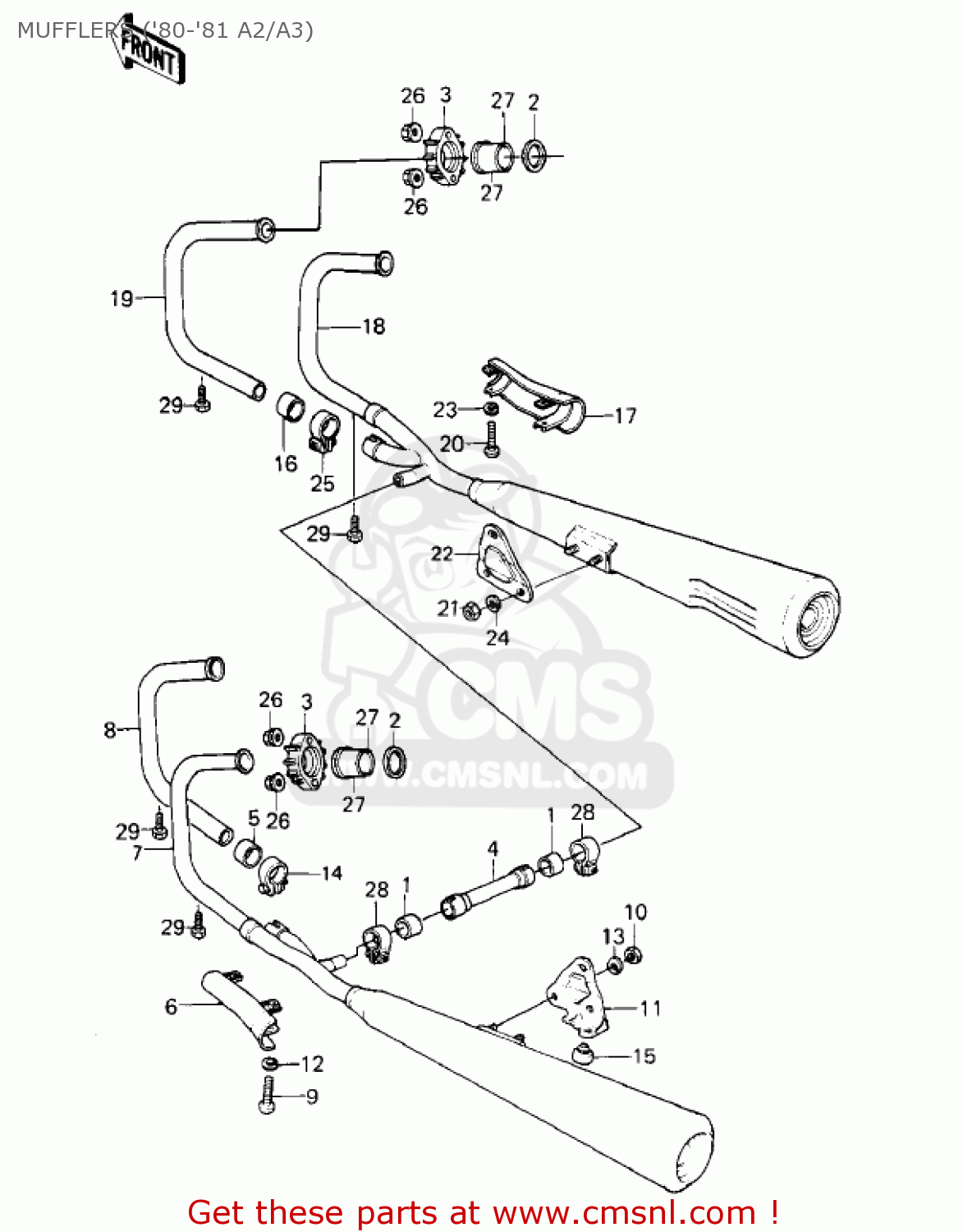

Mufflers ('80-'81 a2/a3) diagram KZ550A1 1980 USA CANADA
MUFFLERS ('80-'81 A2/A3) KZ550A1 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
110601051
ref: 1
GASKET,MUFFLER CONNEC (NAS)
€ 15.00
2
110091866
ref: 2
GASKET,EXHAUST PIPE H (NAS)
€ 7.50
3
180691006
ref: 3
HOLDER-EXHAUST PIPE
€ 16.00
4
320321671
ref: 4
PIPE,MUFFLER CONNECTI
€ 17.50
5
110091667
ref: 5
GASKET,EXHAUST PIPE C (NAS)
€ 15.00
6
140251531
ref: 6
COVER,MUFFLER,LH
€ 34.00
7
180011128
ref: 7
CANADA
MUFFLER,L.H.
€ 308.50
7
180011128
ref: 7
U.S.
MUFFLER,L.H.
€ 308.50
8
180491067
ref: 8
CANADA
PIPE,EXHAUST,#2
€ 106.00
8
180491067
ref: 8
U.S.
PIPE,EXHAUST,#2
€ 106.00
9
220B0640
ref: 9
SCREW-PAN HEAD,6X40
€ 2.00
10
317B0800
ref: 10
NUT,8M/M
€ 0.50
11
320691031
ref: 11
BRACKET-MUFFLER,LH
€ 22.50
12
461F0600
ref: 12
WASHER-SPRING,6MM
€ 0.50
13
461F0800
ref: 13
WASHER-SPRING,8MM
€ 0.50
14
920371089
ref: 14
KZ550-A1
CLAMP,EXHAUST PIPE
€ 8.50
14
920371349
ref: 14
KZ550-A2
CLAMP,42MM
€ 8.50
15
92075015
ref: 15
DAMPER RUBB-MAIN STND
€ 3.00
16
110091667
ref: 16
GASKET,EXHAUST PIPE C (NAS)
€ 15.00
17
140251532
ref: 17
COVER,MUFFLER,RH
€ 34.00
18
180011129
ref: 18
CANADA
MUFFLER,R.H.
€ 308.50
18
180011129
ref: 18
U.S.
MUFFLER,R.H.
€ 308.50
19
180491068
ref: 19
CANADA
PIPE,EXHAUST,#3
€ 138.00
19
180491068
ref: 19
U.S.
PIPE,EXHAUST,#3
€ 138.00
20
220B0640
ref: 20
SCREW-PAN HEAD,6X40
€ 2.00
21
317B0800
ref: 21
NUT,8M/M
€ 0.50
22
320691032
ref: 22
BRACKET-MUFFLER,RH
€ 22.50
23
461F0600
ref: 23
WASHER-SPRING,6MM
€ 0.50
24
461F0800
ref: 24
WASHER-SPRING,8MM
€ 0.50
25
920371089
ref: 25
KZ550-A1
CLAMP,EXHAUST PIPE
€ 8.50
25
920371349
ref: 25
KZ550-A2
CLAMP,42MM
€ 8.50
26
920151078
ref: 26
NUT,6M/M
€ 1.50
27
92027264
ref: 27
COLLAR, EXHAUST PIPE
€ 3.00
28
920371223
ref: 28
KZ550-A1
CLAMP
€ 8.50
28
920371223
ref: 28
KZ550-A2
CLAMP
€ 8.50
29
110R0610
ref: 29
USE FOR 18001-1
BOLT,6X10
€ 5.00
