REAR WHEEL/HUB/BRAKE/CHAIN ('80-
KZ550A1 1980 USA CANADA

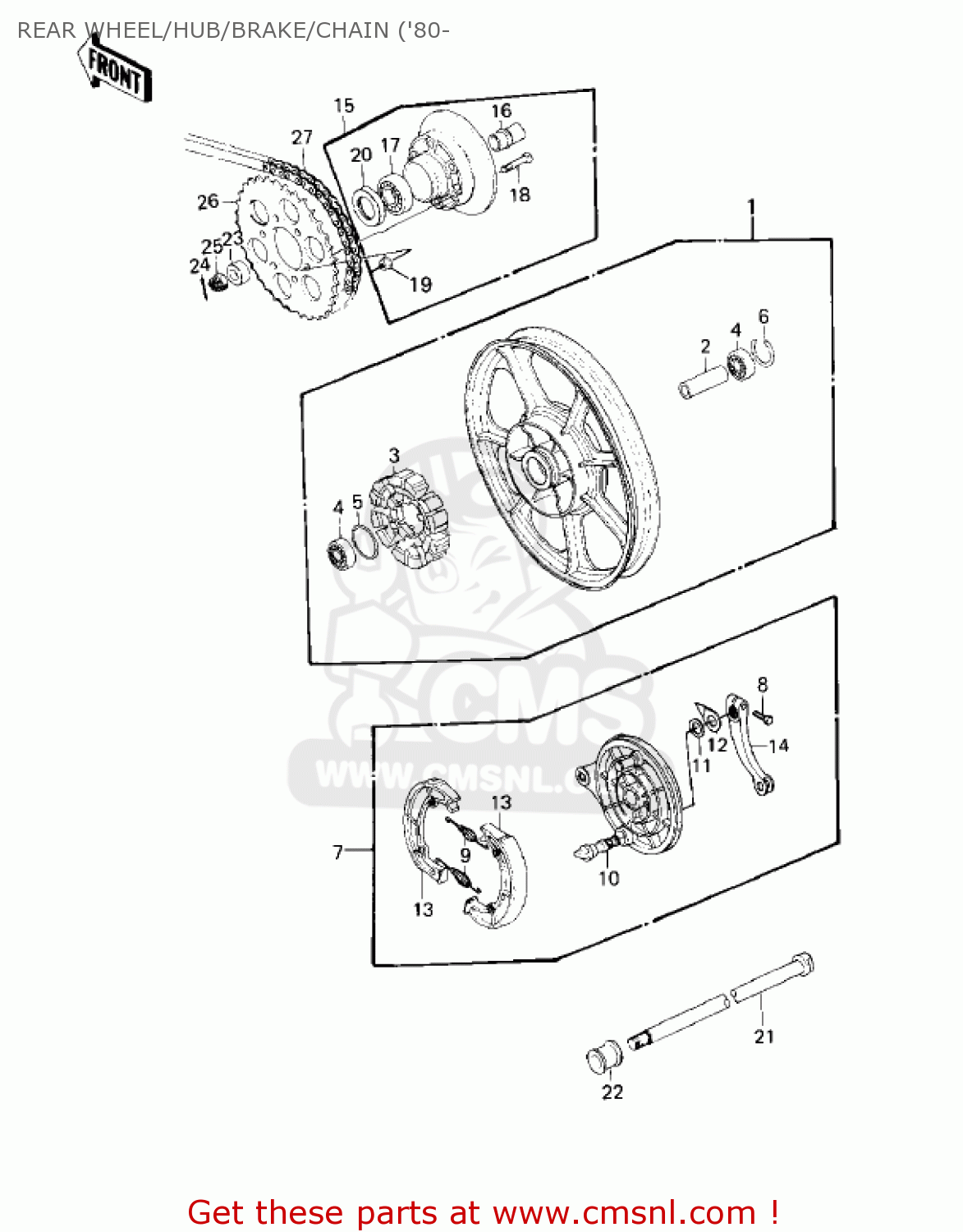

Rear wheel/hub/brake/chain ('80- diagram KZ550A1 1980 USA CANADA
REAR WHEEL/HUB/BRAKE/CHAIN ('80- KZ550A1 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
410731103
ref: 1
KZ550-A1
SOLID WHEEL ASSY,RR
€ 522.50
1
410731103
ref: 1
KZ550-A2
SOLID WHEEL ASSY,RR
€ 522.50
2
42010033
ref: 2
COLLAR,REAR HUB,L=61
€ 14.50
3
42014026
ref: 3
DAMPER,RR HUB SHOCK
€ 51.00
4
601B6303ZZ
ref: 4
BEARING-BALL,#6303ZZC
€ 32.50
5
671B2555
ref: 5
O RING,55MM
€ 4.00
6
920331042
ref: 6
CIRCLIP,47M/M
€ 4.00
7
410351055
ref: 7
KZ550-A1
PANEL ASY,RR BRK,BLCK
€ 335.50
7
410351055
ref: 7
KZ550-A2
PANEL ASY,RR BRK,BLCK
€ 335.50
8
114G0828
ref: 8
BOLT-SMALL,8X28
€ 2.50
9
41049012
ref: 9
SPRING, BRKE SHOE
€ 6.00
10
41050017
ref: 10
CAM-BRAKE
€ 25.50
11
41051003
ref: 11
DUST SHIELD-BRAKE CAM
€ 2.50
12
41085004
ref: 12
INDICATOR,BRAKE SHOE
€ 10.00
13
42019012
ref: 13
SHOE, BRAKE (MCA)
€ 26.00
14
42029039
ref: 14
LEVER REAR BRAKE CAM
€ 37.00
15
42008032
ref: 15
COUPLING ASSY,REAR HB
€ 132.50
16
42036026
ref: 16
SLEEVE,RR HUB COUPLIN
€ 39.00
17
601B6305
ref: 17
BEARING-BALL,#6305C3
€ 30.00
18
92003087
ref: 18
BOLT-RR SPRCKT 10X49
€ 4.00
19
920151415
ref: 19
NUT,10MM
€ 3.00
20
92050076
ref: 20
OIL SEAL, # 38629
€ 13.50
21
410681086
ref: 21
AXLE,RR
€ 49.00
22
42032017
ref: 22
COLLAR-REAR AXLE
€ 10.50
23
42032067
ref: 23
COLLAR,REAR AXLE,LH,L
€ 15.50
24
550D4035
ref: 24
PIN-COTTER,4.0X35
€ 1.00
25
92015055
ref: 25
NUT,16MM
€ 8.00
26
420411045
ref: 26
SPROCKET,REAR,40T
€ 50.50
27
920571050
ref: 27
CHAIN ASSY,DRIVE,100L
€ 82.50
