FRONT WHEEL/HUB (KZ550-A1)
KZ550A1 1980 USA CANADA

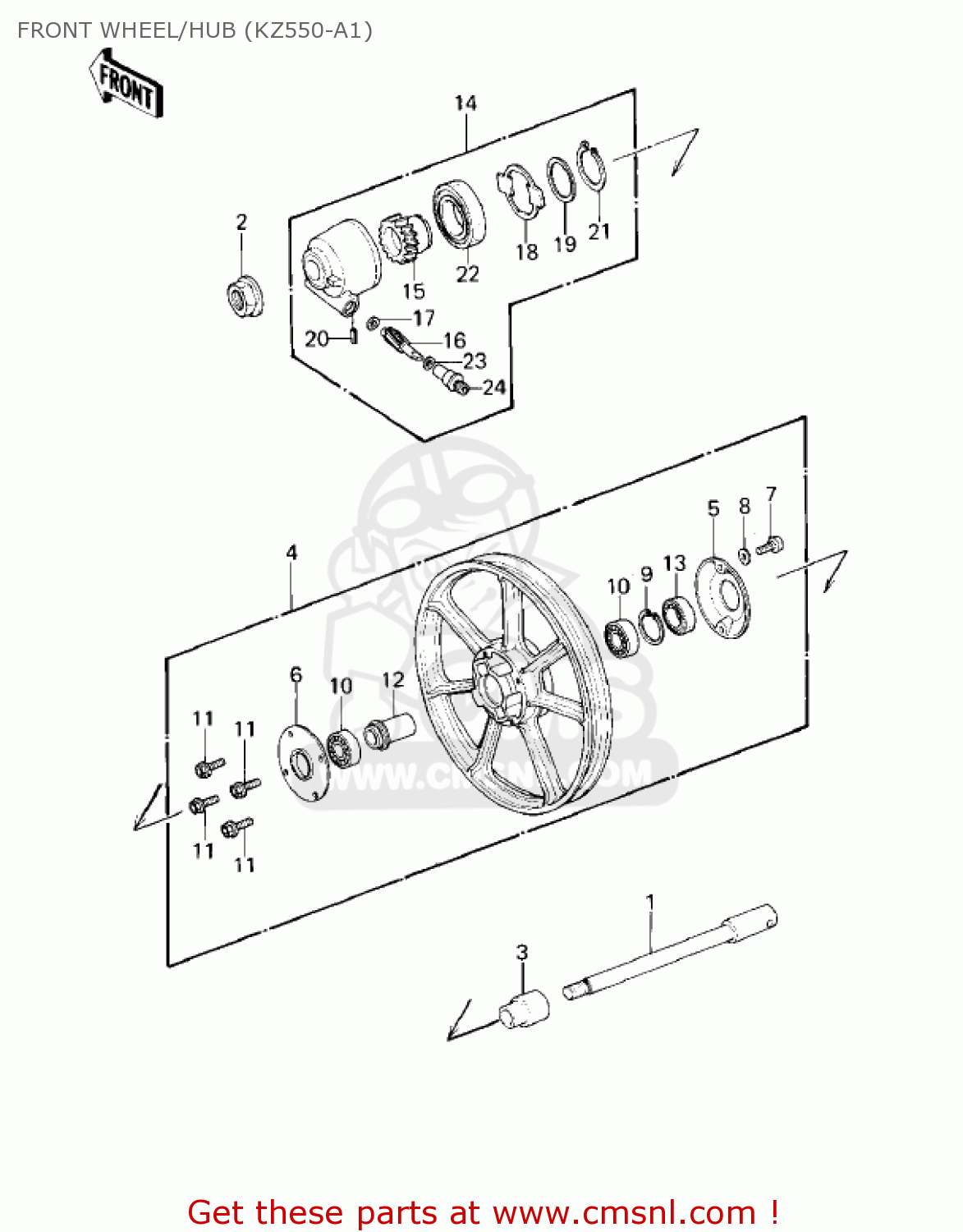

Front wheel/hub (kz550-a1) diagram KZ550A1 1980 USA CANADA
FRONT WHEEL/HUB (KZ550-A1) KZ550A1 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
410681009
ref: 1
AXLE,FR,L=204
€ 44.50
2
920151407
ref: 2
NUT,14MM
€ 6.50
3
920271085
ref: 3
COLLAR,L=35
€ 11.50
4
410731041
ref: 4
SOLID WHEEL ASSY,FR
€ 606.50
5
140251042
ref: 5
COVER,DUST,RH
€ 6.00
6
140251043
ref: 6
COVER,DUST,LH
€ 19.50
7
220B0514
ref: 7
ACREW-PAN HEAD,5X14
€ 2.50
8
411B0500
ref: 8
WASHER-PLAIN,5MM
€ 0.50
9
920331041
ref: 9
CIRCLIP,42MM
€ 4.00
10
601B6302Z
ref: 10
BEARING-BALL,#6302ZC3
€ 22.50
11
920011095
ref: 11
BOLT,8X28
€ 4.50
12
920271171
ref: 12
COLLAR,FRONT WHEEL
€ 13.00
13
92052011
ref: 13
OIL SEAL,WTC22427
€ 14.00
14
410781005
ref: 14
CASE-ASSY-METER GEAR
€ 108.00
15
410601015
ref: 15
GEAR,SPEEDOMETER,26T
€ 21.00
16
410601016
ref: 16
PINION,SPEEDOMETER,9T
€ 21.50
17
41063001
ref: 17
WASHER-THRST SPD PINI
€ 3.00
18
410641005
ref: 18
RECEIVER,SPEEDOMETER
€ 9.50
19
41065006
ref: 19
WASHER, PLAIN
€ 2.00
20
41082001
ref: 20
PIN-SPRING
€ 2.50
21
480J2200
ref: 21
CIRCLIP-TYPE-C,22MM
€ 3.00
22
920491057
ref: 22
OIL SEAL,BJN30427-C3
€ 7.50
23
41063001
ref: 23
WASHER-THRST SPD PINI
€ 3.00
24
920871002
ref: 24
BUSHING-METER GEAR
€ 14.50
