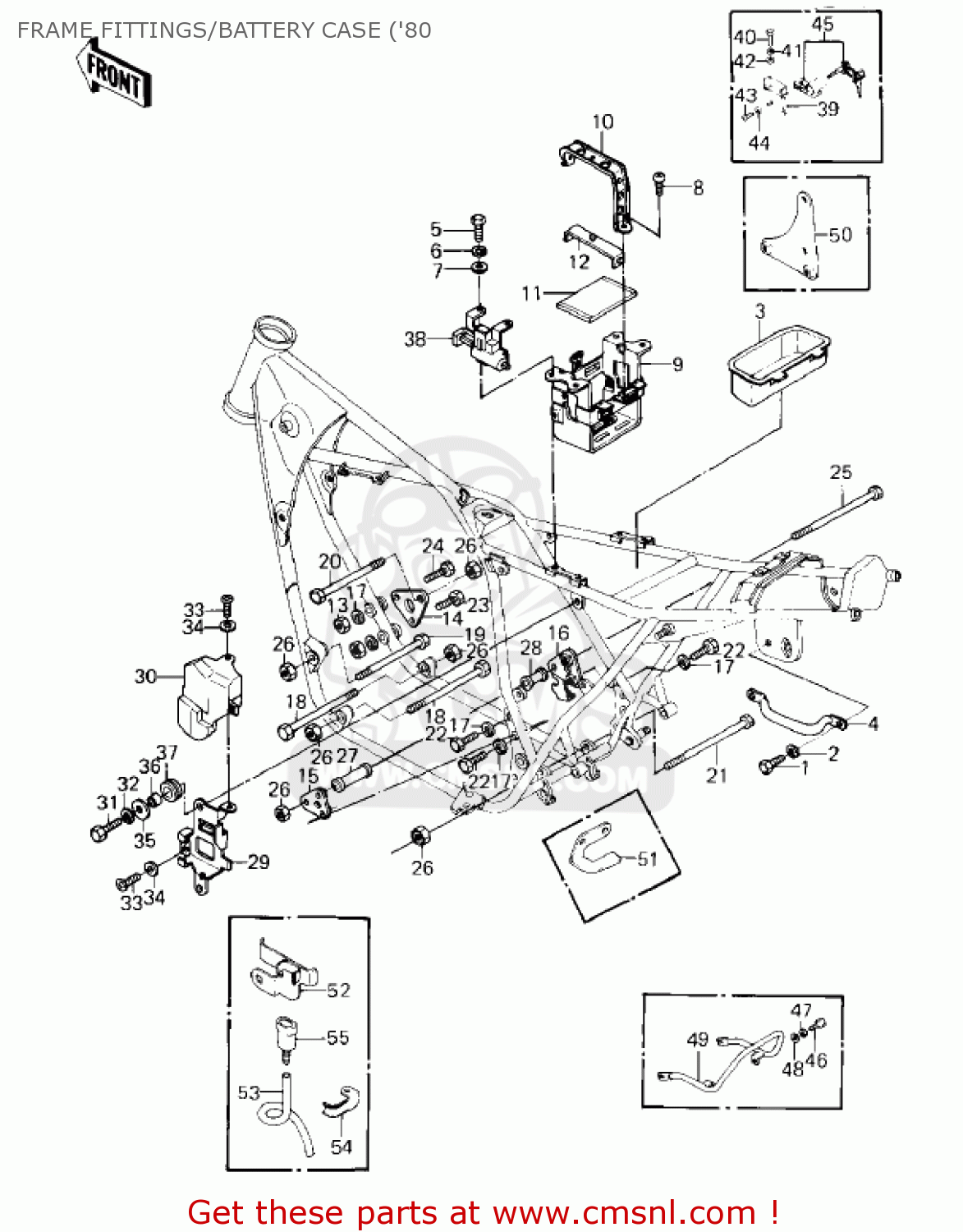

FRAME FITTINGS/BATTERY CASE ('80

ref

part #

description

quantity

1

115G0816
ref: 1
KZ550-A1

BOLT-HEX,HEAD 8X16

€ 0.50

2

461F0800
ref: 2

WASHER-SPRING,8MM

€ 0.50

3

320981005
ref: 3

CASE-TOOL

€ 20.50

4

321091005
ref: 4
KZ550-A1

GRIP-FRAME

€ 38.50

5

112G0612
ref: 5

BOLT-UPSET

€ 2.50

6

461F0600
ref: 6

WASHER-SPRING,6MM

€ 0.50

7

411B0600
ref: 7

WASHER-PLAIN,6MM

€ 0.50

8

220B0612
ref: 8

SCREW-PAN HEAD,6X12

€ 1.00

9

320971026
ref: 9
KZ550-A1

CASE-BATTERY

€ 92.00

9

320971027
ref: 9
KZ550-A2

CASE,BATTERY

€ 26.50

10

920721019
ref: 10

BAND,BATTERY

€ 6.50

11

920751076
ref: 11

DAMPER,BATTERY BASE

€ 6.00

12

920751113
ref: 12

DAMPER,BATTERY BAND

€ 4.50

13

317B0800
ref: 13

NUT,8M/M

€ 0.50

14

320291048
ref: 14

BRACKET,ENGINE,FR,R.H

€ 6.00

15

320291049
ref: 15

BRACKET,ENGINE,RR,L.H

€ 8.50

16

320291050
ref: 16

BRACKET,ENGINE,RR,R.H

€ 3.50

17

461F0800
ref: 17

WASHER-SPRING,8MM

€ 0.50

18

920011048
ref: 18

BOLT, HEX HEAD, 10X84

€ 4.50

19

920011049
ref: 19

BOLT, HEX HEAD, 10X72

€ 4.00

20

920011599
ref: 20

BOLT,FLANGED,10X60

€ 4.50

21

920011606
ref: 21

BOLT,FLANGED,10X180

€ 15.00

22

920011578
ref: 22
KZ550-A1

BOLT,FLANGED,8X40

€ 4.00

22

920011578
ref: 22
KZ550-A2

BOLT,FLANGED,8X40

€ 4.00

23

110G0859
ref: 23
KZ550-A1

BOLT,HEX HEAD,8X59

€ 3.50

23

920011581
ref: 23
KZ550-A2

BOLT,FLANGED,8X60

€ 3.50

24

920011397
ref: 24
KZ550-A1

BOLT,8X63

€ 1.50

24

920011397
ref: 24
KZ550-A2

BOLT,8X63

€ 1.50

25

920011609
ref: 25

BOLT,FLANGED,10X255

€ 14.00

26

92019021
ref: 26

NUT,LOCK,10M/M

€ 2.00

27

920271109
ref: 27

COLLAR,L=57.5M/M

€ 13.00

28

920271110
ref: 28

COLLAR,L=37

€ 9.00

29

110341239
ref: 29

BRACKET,ELECTRO BASE

€ 16.00

30

140251049
ref: 30

COVER,ELECTRO

€ 15.50

31

112G0620
ref: 31

BOLT 6X20

€ 1.00

32

461F0600
ref: 32

WASHER-SPRING,6MM

€ 0.50

33

220B0612
ref: 33

SCREW-PAN HEAD,6X12

€ 1.00

34

92022024
ref: 34

WASHER,7X16X1.2

€ 2.50

35

92022125
ref: 35

WASHER,6.5X20X1.6

€ 1.00

36

92027165
ref: 36

COLLAR,6.5X8.5X7.5

€ 3.00

37

92075149
ref: 37

DAMPER

€ 6.00

38

530451001
ref: 38

HOOK ASSY,HELMET

€ 31.00

39

110341926
ref: 39

BRACKET,HELMET LOCK

€ 14.00

40

112B0614
ref: 40

BOLT-UPSET 6X14

€ 2.50

41

461F0600
ref: 41

WASHER-SPRING,6MM

€ 0.50

42

411B0600
ref: 42

WASHER-PLAIN,6MM

€ 0.50

43

220B0510
ref: 43

SCREW-PAN-CROS,5X10

€ 0.50

44

461F0500
ref: 44

WASHER-SPRING,5MM

€ 0.50

45

270165038
ref: 45

LOCK-ASSY,HELMET

€ 67.50

46

115G0816
ref: 46

BOLT-HEX,HEAD 8X16

€ 0.50

47

461F0800
ref: 47
KZ550-A2

WASHER-SPRING,8MM

€ 0.50

48

410B0800
ref: 48

WASHER-PLAIN-SMALL,8M

€ 0.50

49

350111074
ref: 49

STAY,RR

€ 150.50

50

110361020
ref: 50

RESERVE LIGHT BRACKET

€ 4.50

51

110361026
ref: 51

FUSE BRACKET

€ 3.00

52

110361470
ref: 52

BRACKET,BATTERY

€ 7.00

53

701Q06530
ref: 53

TUBE-PVC,6X530

€ 4.00

54

920371246
ref: 54

CLAMP

€ 4.00

55

92059101
ref: 55

TUBE,CONNECTOR

€ 6.00
