IGNITION ('80-'81 A2/A3)
KZ550A1 1980 USA CANADA

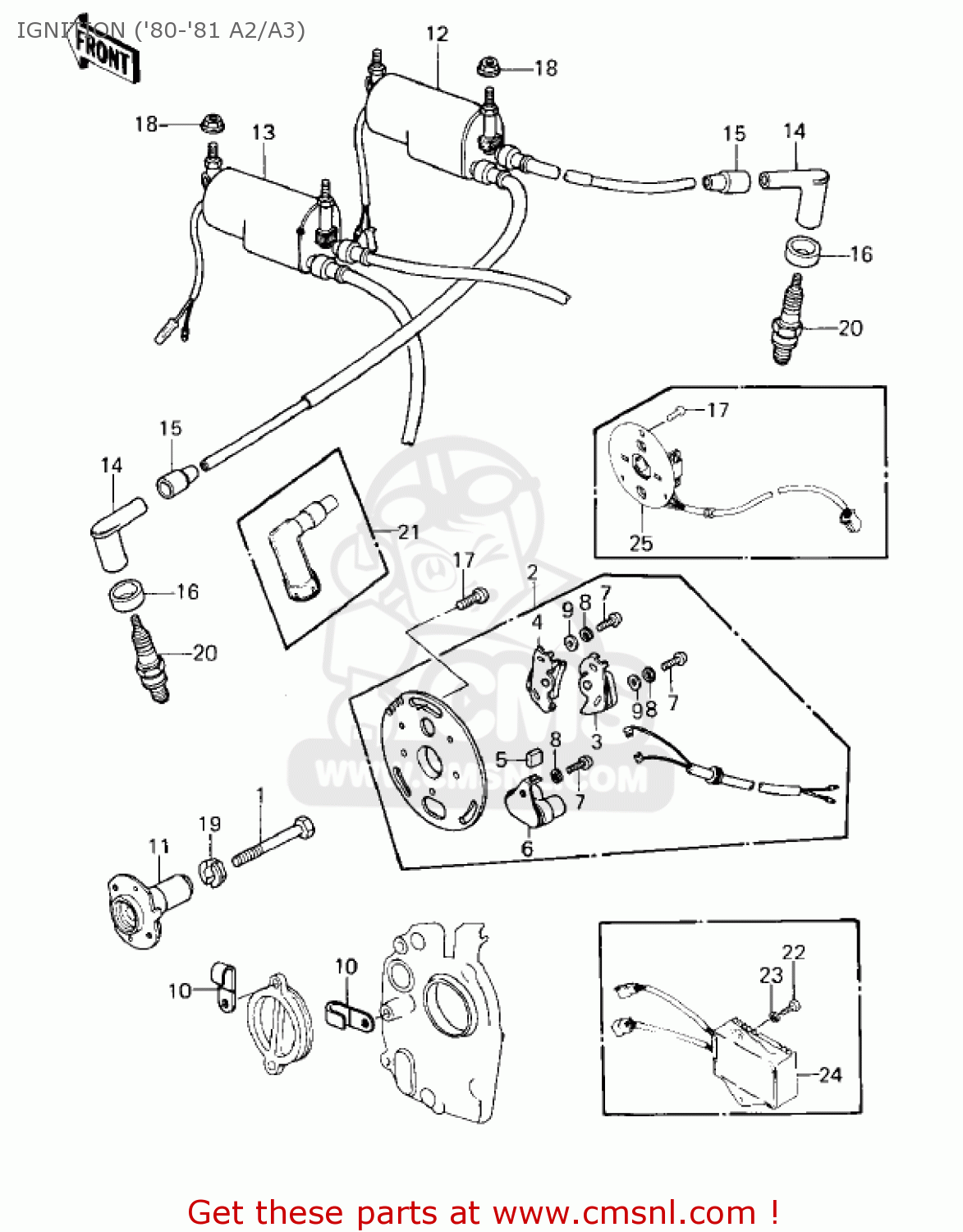

Ignition ('80-'81 a2/a3) diagram KZ550A1 1980 USA CANADA
IGNITION ('80-'81 A2/A3) KZ550A1 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
920011397
ref: 1
KZ550-A1
BOLT,8X63
€ 1.50
1
920011397
ref: 1
KZ550-A2
BOLT,8X63
€ 1.50
2
210081015
ref: 2
KZ550-A1
BREAKER ASSY,CONTACT
€ 64.50
3
21008027
ref: 3
KZ550-A1
BREAKER,CONTACT
€ 43.00
4
21008028
ref: 4
KZ550-A1
BREAKER,CONTACT
€ 43.00
5
21019005
ref: 5
KZ550-A1
BRUSH,OIL
€ 3.00
6
21013037
ref: 6
KZ550-A1
CONDENSER
€ 36.50
7
220B0406
ref: 7
KZ550-A1
SCREW-PAN-CROS,4X6
€ 2.50
8
461F0400
ref: 8
KZ550-A1
WASHER-SPRING,4MM
€ 0.50
9
410B0400
ref: 9
KZ550-A1
WASHER-PLAIN-SMALL,4M
€ 0.50
10
21126008
ref: 10
CLAMP,WIRING HARNESS
€ 3.00
11
211481005
ref: 11
KZ550-A1
GOVERNOR-BREAKER
€ 116.50
11
211481016
ref: 11
KZ550-A2
GOVERNOR-BREAKER
€ 108.00
12
211211010
ref: 12
KZ550-A1
COIL-IGNITION,#1&4
€ 163.00
12
211211035
ref: 12
KZ550-A2
COIL-IGNITON,#1&4
€ 156.50
13
211211011
ref: 13
KZ550-A1
COIL-IGNITION,#2&3
€ 171.50
13
211211036
ref: 13
KZ550-A2
COIL-IGNITON,#2&3
€ 152.00
14
211301003
ref: 14
CAP,SPARK PLUG"LD05F"
€ 20.00
15
21132005
ref: 15
GROMMET,SPARK PLUG CP
€ 2.50
16
920711015
ref: 16
GROMMET,SPARK PLUG CA
€ 2.50
17
220B0512
ref: 17
SCREW-PAN-CROS
€ 0.50
18
920151078
ref: 18
NUT,6M/M
€ 1.50
19
92022244
ref: 19
WASHER,BREAKER GOVERN
€ 9.50
20
D8EAA
ref: 20
SPARK PLUG,D8EA
€ 2.50
21
211601002
ref: 21
USE FOR CANADA MARKE
CAP.ASSY,SPARK PLUG
€ 29.00
22
112G0616
ref: 22
KZ550-A2
BOLT UPSET,6X16
€ 1.00
23
461F0600
ref: 23
KZ550-A2
WASHER-SPRING,6MM
€ 0.50
24
211191040
ref: 24
KZ550-A2
IGNITER
€ 529.00
25
590261009
ref: 25
KZ550-A2
COIL-PULSING
€ 149.00
