CLUTCH ('82-'83 A3/A4)
KZ550A1 1980 USA CANADA

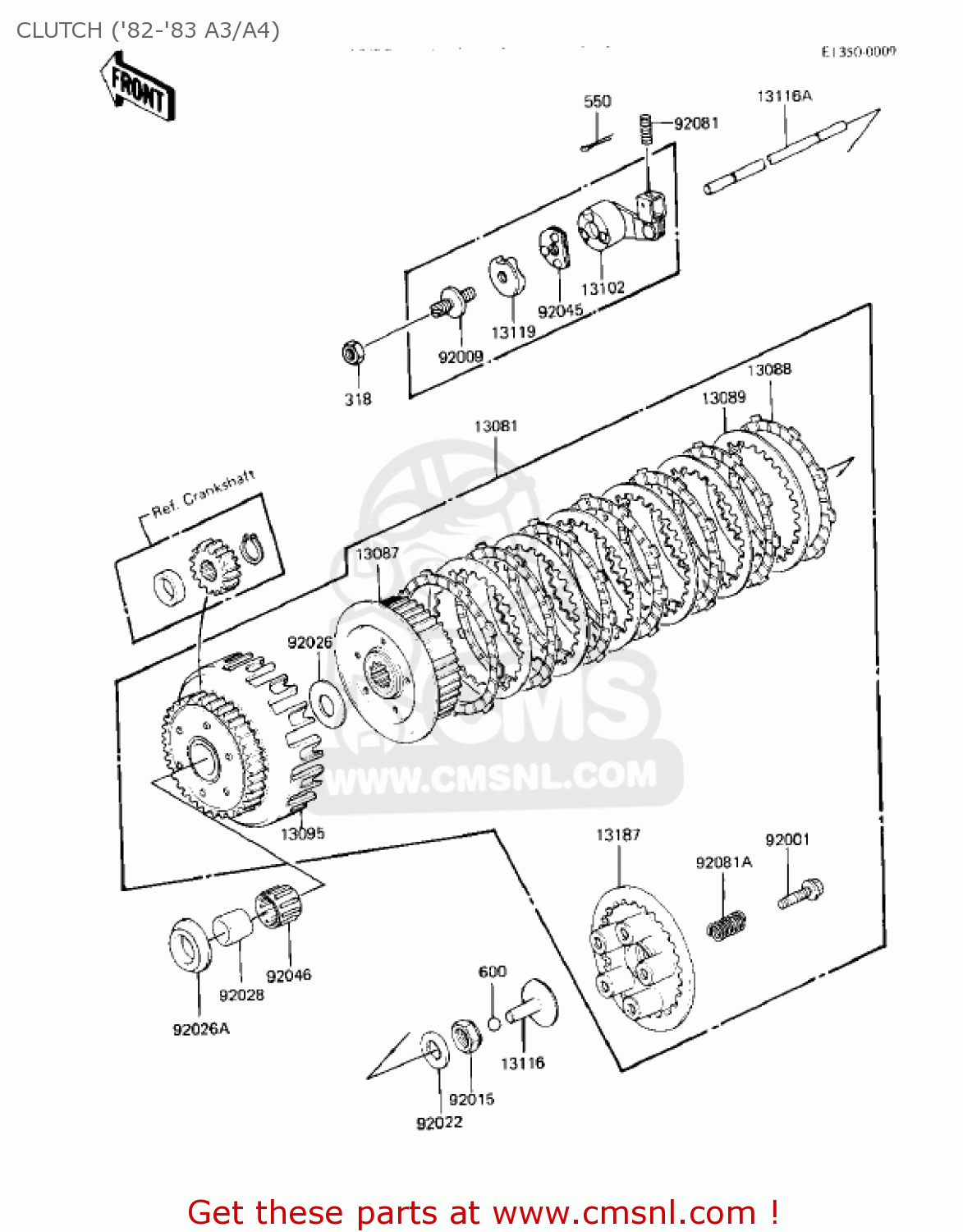

Clutch ('82-'83 a3/a4) diagram KZ550A1 1980 USA CANADA
CLUTCH ('82-'83 A3/A4) KZ550A1 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13081
130811044
ref: 13081
CLUTCH ASSY
€ 568.50
13087
130871052
ref: 13087
HUB-CLUTCH
€ 96.00
13088
13088040
ref: 13088
PLATE,CLUTCH FRICTION (NAS)
€ 12.50
13089
13089026
ref: 13089
PLATE,CLUTCH STEEL (NAS)
€ 6.50
13095
130951030
ref: 13095
HOUSING-COMP-CLUTCH
€ 307.00
13102
131021008
ref: 13102
RELEASE-COMP-CLUTCH
€ 34.50
13116
13116029
ref: 13116
ROD-PUSH,CLUTCH SPRIN
€ 18.00
13116A
131161007
ref: 13116A
ROD-PUSH,CLUTCH,8X270
€ 27.00
13119
131191003
ref: 13119
CAM-RELEASE,CLUTCH
€ 11.50
13187
13187008
ref: 13187
PLATE,CLUTCH SPRING (NAS)
€ 50.00
92001
920011066
ref: 92001
BOLT, CLUTCH SPR FITT
€ 4.00
92009
920091009
ref: 92009
SCREW,SLOTTED,8M/M
€ 2.50
92015
920151555
ref: 92015
NUT,20MM
€ 9.00
92022
920221116
ref: 92022
WASHER,20.3X36X2.3
€ 5.50
92026
92026022
ref: 92026
SPACER,25.5X47X2.5
€ 6.50
92026A
92026116
ref: 92026A
SPACER,THRUST,T=5.5MM
€ 12.00
92028
92028178
ref: 92028
BUSHING,CLUTCH
€ 17.00
92045
920451001
ref: 92045
BEARING,B.CLUTCH
€ 8.00
92046
92046028
ref: 92046
BEARING-NEEDLE,KTV323
€ 20.50
92081
92081069
ref: 92081
SPRING-CLUTCH RELEASE
€ 4.50
92081A
92081139
ref: 92081A
SPRING,CLUTCH
€ 5.50
318
318B0800
ref: 318
NUT,8MM
€ 0.50
550
550D1615
ref: 550
PIN-COTTER,1.6X15
€ 1.50
600
600A1200
ref: 600
BALL-STEEL,3/8
€ 0.50
