HEADLIGHT ('80-'81 A1/A2)
KZ550A1 1980 USA CANADA

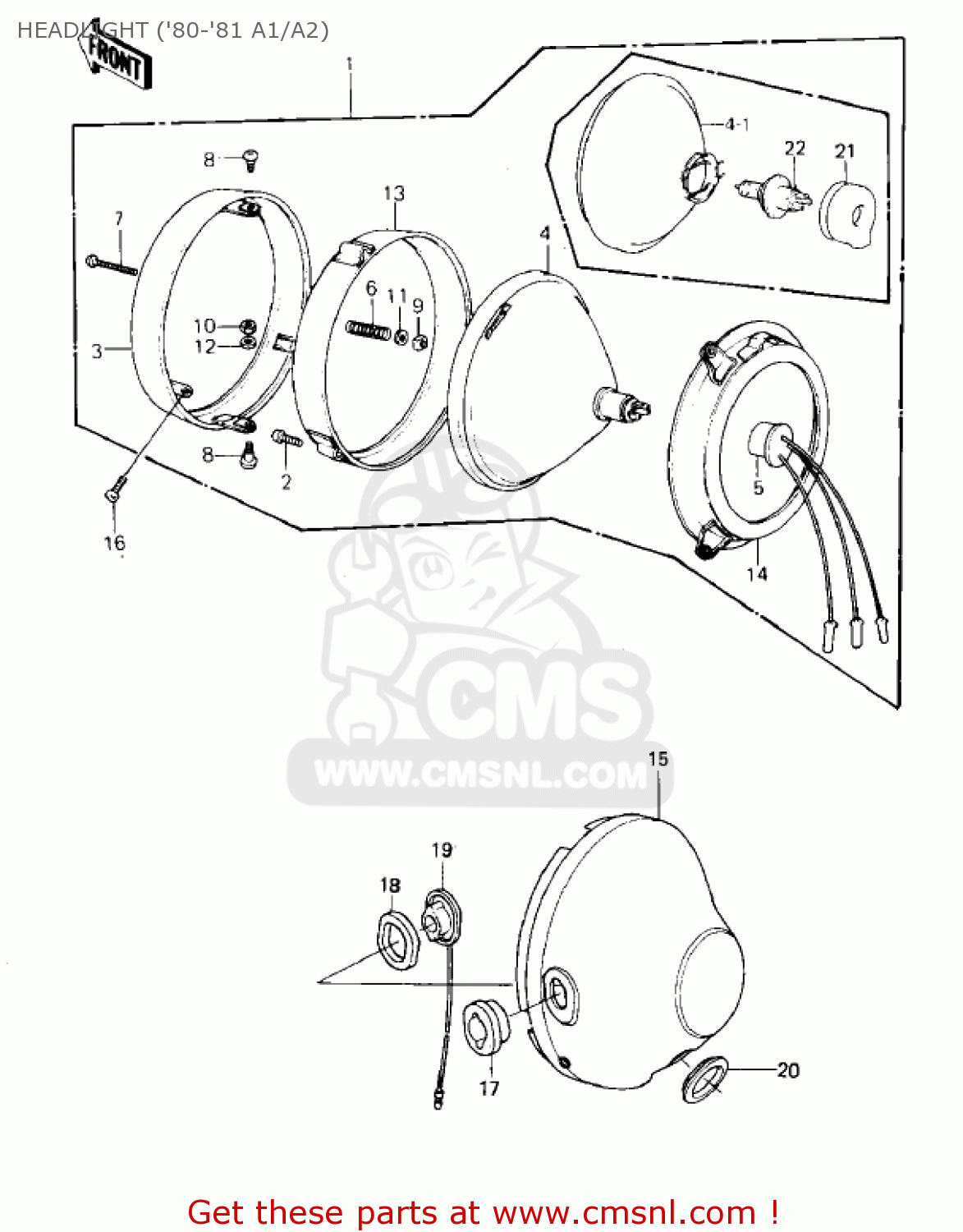

Headlight ('80-'81 a1/a2) diagram KZ550A1 1980 USA CANADA
HEADLIGHT ('80-'81 A1/A2) KZ550A1 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
23003017
ref: 1
KZ550-A1
LAMP UNIT, HEAD
€ 429.00
1
230041040
ref: 1
KZ550-A2
HEADLAMP
€ 331.50
2
220B0312A
ref: 2
SCREW,PAN HEAD,3X12
€ 2.00
3
23006038
ref: 3
RIM-LAMP
€ 56.50
4
23007041
ref: 4
USE FOR 23003-017
LENS-COMP,001-1014 MA
€ 102.00
4.1
230071009
ref: 4.1
USE FOR 23004-1040
LENS UNIT, HEAD LAMP
€ 127.00
5
23008037
ref: 5
USE FOR 23003-017
SOCKET-ASSY,HEAD LAMP
€ 12.50
6
23014005
ref: 6
SPRING-FOCUS ADJUST
€ 2.50
7
23019021
ref: 7
SCREW-FORCUS ADJUST
€ 3.00
8
23019023
ref: 8
SCREW-PAN HEAD,5X12
€ 3.50
9
23020018
ref: 9
NUT,4MM,FOCUS ADJUST
€ 3.00
10
23020023
ref: 10
NUT,5MM
€ 3.00
11
23021004
ref: 11
WASHER,4.1X8X0.8
€ 2.00
12
23021012
ref: 12
WASHER
€ 3.00
13
23072001
ref: 13
RETAINER,HEAD LAMP
€ 26.00
14
23074001
ref: 14
HOLDER,HEAD LAMP
€ 28.00
15
23005101521
ref: 15
KZ550-A1
BODY-COMP-HEAD LAMP,F
€ 136.50
15
23005101521
ref: 15
KZ550-A2
BODY-COMP-HEAD LAMP,F
€ 136.50
16
23019022
ref: 16
SCREW-SPECIAL,5X14
€ 1.50
17
23066015
ref: 17
DAMPER
€ 4.50
18
23066016
ref: 18
DAMPER
€ 4.50
19
23076005
ref: 19
COLLAR
€ 31.00
20
920711008
ref: 20
USE FOR 23005-1011-2
GROMMET
€ 4.00
20
920711008
ref: 20
USE FOR 23005-1015-2
GROMMET
€ 4.00
21
490161016
ref: 21
USE FOR 23004-1040
COVER-SEAL
€ 16.00
22
920691002
ref: 22
USE FOR 23004-1040
BULB,12V-60155W
€ 15.00
