SEAT ('75 S)
KZ400S3 SPECIAL 1977 USA CANADA

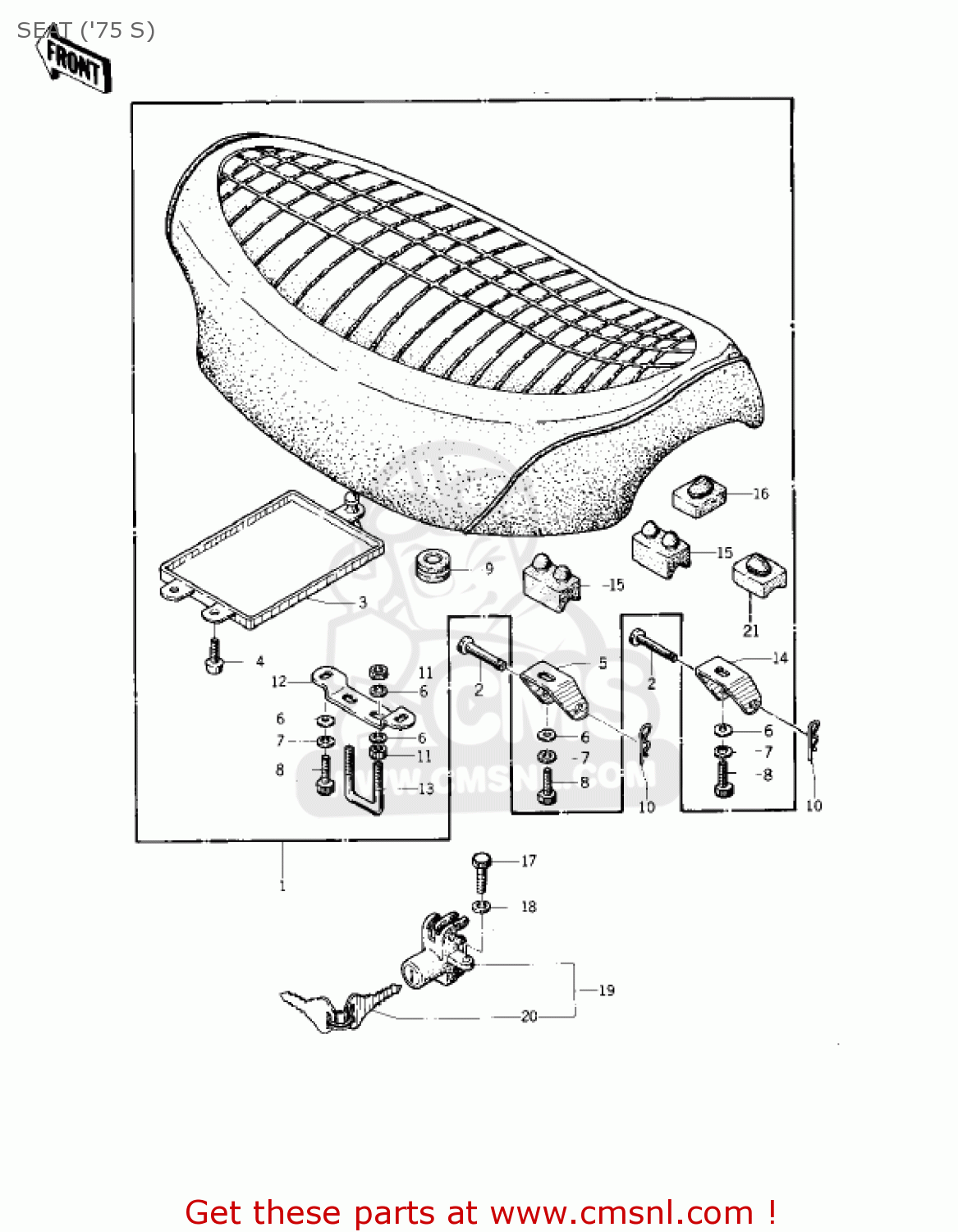

Seat ('75 s) diagram KZ400S3 SPECIAL 1977 USA CANADA
SEAT ('75 S) KZ400S3 SPECIAL 1977 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
53001106
ref: 1
SEAT ASSY,DUAL
€ 253.00
2
53011006
ref: 2
PIN,DUAL SEAT,PIVOT
€ 3.00
3
32099011
ref: 3
CASE,MANUAL
€ 11.50
4
220B0510
ref: 4
SCREW-PAN-CROS,5X10
€ 0.50
5
53009025
ref: 5
HINGE,FRONT
€ 3.50
6
411B0600
ref: 6
WASHER-PLAIN,6MM
€ 0.50
7
461F0600
ref: 7
WASHER-SPRING,6MM
€ 0.50
8
112B0614
ref: 8
BOLT-UPSET 6X14
€ 2.50
9
92071056
ref: 9
GROMMET
€ 2.50
10
92041003
ref: 10
COTTER
€ 0.50
11
311B0600
ref: 11
NUT,6MM
€ 0.50
12
53058001
ref: 12
BRACKET,SEAT CATCH
€ 6.00
13
53056002
ref: 13
HOOK,SEAT
€ 11.50
14
53009026
ref: 14
HINGE,SEAT
€ 8.50
15
92075139
ref: 15
DAMPER,SEAT
€ 7.00
16
92075099
ref: 16
DAMPER RUBBER
€ 3.50
17
112G0612
ref: 17
BOLT-UPSET
€ 2.50
18
461F0600
ref: 18
WASHER-SPRING,6MM
€ 0.50
19
27030002
ref: 19
LOCK ASSY,SEAT
€ 45.00
21
92075156
ref: 21
DAMPER,SEAT
€ 6.50
