CAMSHAFT/CHAIN/TENSIONER ('75 S)

KZ400S3 SPECIAL 1977 USA CANADA

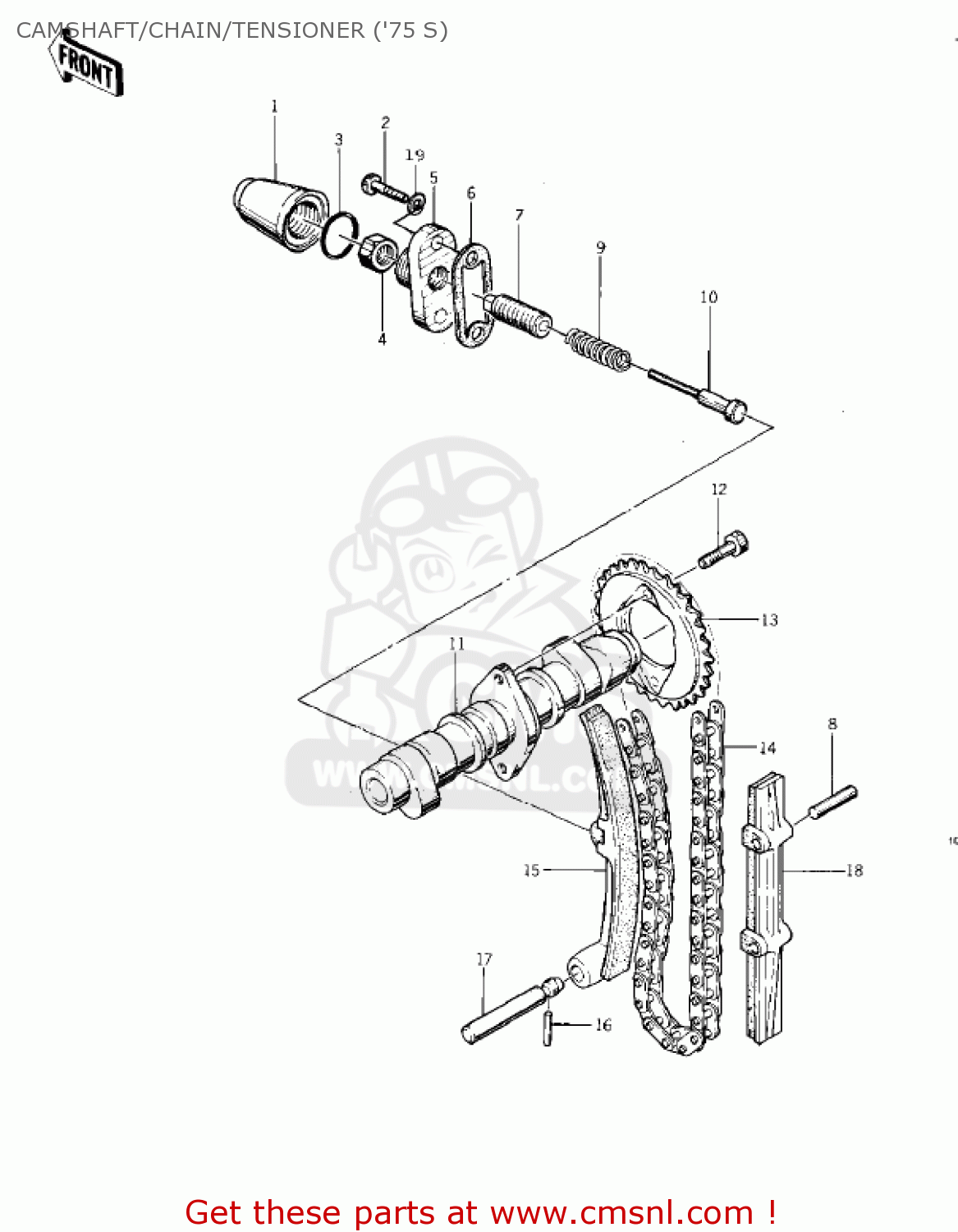

Camshaft/chain/tensioner ('75 s) diagram KZ400S3 SPECIAL 1977 USA CANADA

CAMSHAFT/CHAIN/TENSIONER ('75 S) KZ400S3 SPECIAL 1977 USA CANADA

CAMSHAFT/CHAIN/TENSIONER ('75 S) KZ400S3 SPECIAL 1977 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

12064004
ref: 1

CAP, CHAIN TENSIONER

€ 17.00

2

92001114
ref: 2

BOLT-HEX HEAD,6X16

€ 2.50

3

92055104
ref: 3

RING-O

€ 7.50

4

92016054
ref: 4

NUT,LOCK

€ 7.50

5

12047004
ref: 5

HOLDER,CAM CHAN TENS

€ 23.00

6

110091022
ref: 6

GASKET,CHAIN TENSIONR (MCA)

€ 2.50

7

920011271
ref: 7

GUIDE,PUSH ROD

€ 32.00

8

551A0532
ref: 8

PIN,DOWEL,5X32

€ 2.00

9

92081131
ref: 9

SPRING,CHN TENSIONER

€ 13.50

10

12054002
ref: 10

ROD,PUSH

€ 28.00

11

12044009
ref: 11

SHAFT,CAM

€ 152.00

12

92003208
ref: 12

BOLT,SPROCKET FITTING

€ 2.50

13

12046004
ref: 13

SPROCKET,CAM

€ 44.00

14

21070004
ref: 14

CHAIN,CAM

€ 129.00

15

12053002
ref: 15

GUIDE,CAM CHAIN

€ 123.00

16

551A0425
ref: 16

PIN,DOWEL,4X25

€ 1.50

17

12065001
ref: 17

SHAFT,CHAIN GUIDE

€ 5.50

18

120531042
ref: 18

GUIDE,CAM CHAIN REAR

€ 25.50

19

410B0600
ref: 19

WASHER-PLAIN-SMALL,6M

€ 0.50
