Genuine KZ Kawasaki Parts delivered quickly!


FRAME/FRAME FITTINGS ('76-'77 S2

KZ400S3 SPECIAL 1977 USA CANADA

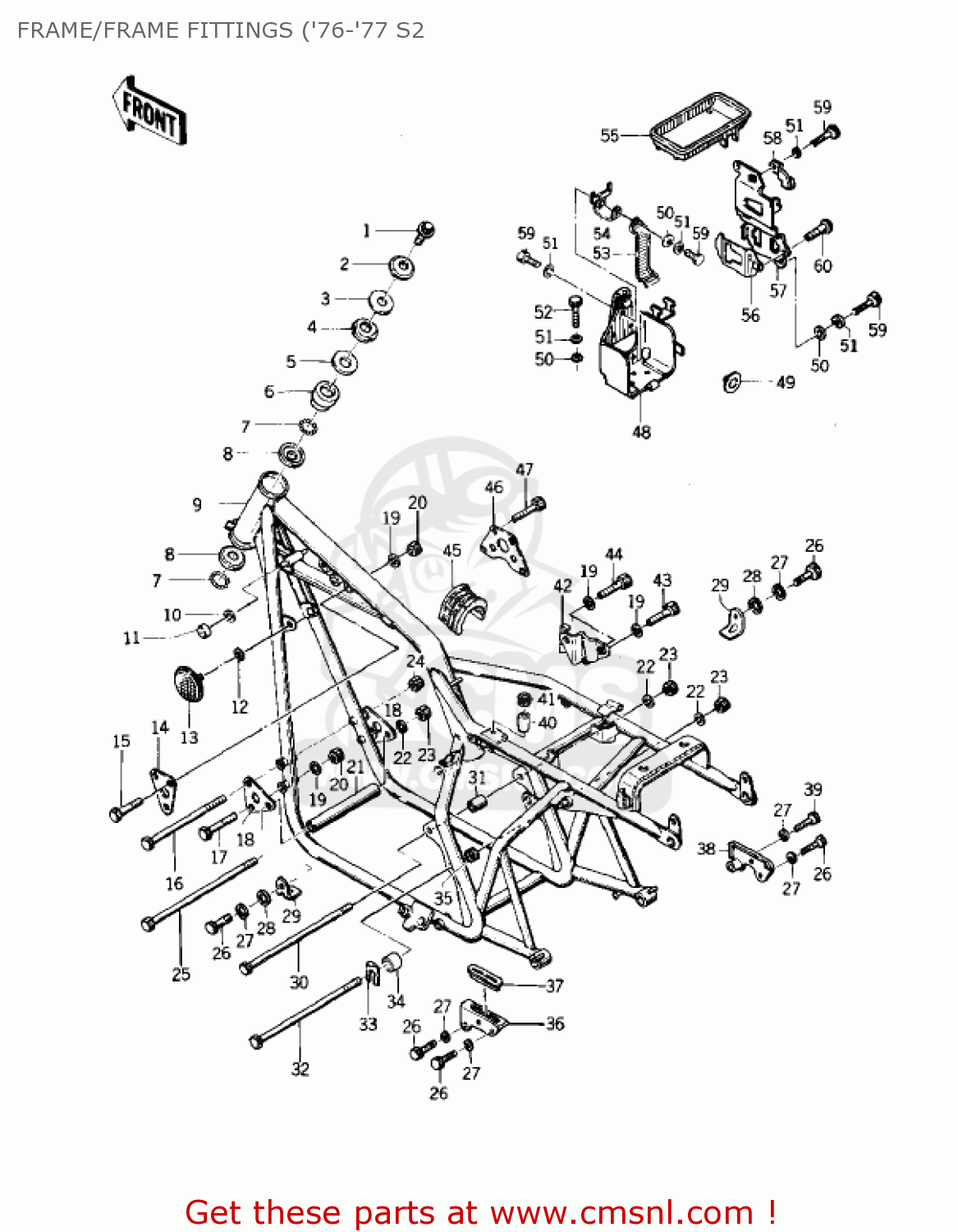

Frame/frame fittings ('76-'77 s2 diagram KZ400S3 SPECIAL 1977 USA CANADA

FRAME/FRAME FITTINGS ('76-'77 S2 KZ400S3 SPECIAL 1977 USA CANADA
FRAME/FRAME FITTINGS ('76-'77 S2 KZ400S3 SPECIAL 1977 USA CANADA
FRAME/FRAME FITTINGS ('76-'77 S2 KZ400S3 SPECIAL 1977 USA CANADA
prices are in EUR
ref
part #
description
quantity
1
92007031
ref: 1
BOLT-STEERG STEM HEAD
92007031
€ 17.50
2
92022230
ref: 2
WASHER-STEERG STM HD
92022230
€ 7.50
3
46100003
ref: 3
WASHER,WAVE
46100003
€ 6.50
4
92090007
ref: 4
NUT-STEERING STEM LCK
92090007
€ 8.00
5
46098016
ref: 5
CAP,STEERING STEM
46098016
€ 4.00
6
92047006
ref: 6
CONE-STRNG STEM
92047006
€ 11.00
7
600A0800
ref: 7
BALL-STEEL,1/4
600A0800
€ 0.50
8
92048006
ref: 8
RACE-STRNG BEARIN-STE
92048006
€ 11.50
9
32002168
ref: 9
KZ400-S2
FRAME
€ 1,018.50
9
32002168
ref: 9
KZ400-S3
FRAME
€ 1,018.50
10
92022044
ref: 10
WASHER,10.5X26X2.3
92022044
€ 2.50
11
92075125
ref: 11
DAMPER RUBBER-FL TANK
92075125
€ 4.00
12
92094011
ref: 12
DAMPER,REFLECTOR
92094011
€ 3.00
13
28012009
ref: 13
REFLECTOR-REFLEX,RR
28012009
€ 17.50
14
32030038
ref: 14
PLATE,ENG MOUNT UPPE
32030038
€ 4.00
15
920011398
ref: 15
KZ400-S2
BOLT,FLANGED 8X55
920011398
€ 2.50
16
920011386
ref: 16
KZ400-S3
BOLT,8X55
920011386
€ 3.00
16
920011386
ref: 16
BOLT,8X55
920011386
€ 3.00
17
110G0859
ref: 17
BOLT,HEX HEAD,8X59
€ 3.50
17
920011581
ref: 17
BOLT,FLANGED,8X60
920011581
€ 3.50
18
32030044
ref: 18
PLATE,ENG MOUNT,FRNT
€ 4.50
19
461F0800
ref: 19
WASHER-SPRING,8MM
461F0800
€ 0.50
20
311B0800
ref: 20
NUT,8MM
311B0800
€ 0.50
21
92027233
ref: 21
COLLAR,ENG PLAT,FRNT
€ 6.00
22
461F1000
ref: 22
WASHER-SPRING,10MM
461F1000
€ 0.50
23
92019021
ref: 23
NUT,LOCK,10M/M
92019021
€ 2.00
24
920151124
ref: 24
NUT,LOCK,8MM
920151124
€ 3.50
25
920011609
ref: 25
BOLT,FLANGED,10X255
920011609
€ 14.00
26
115G0816
ref: 26
BOLT-HEX,HEAD 8X16
115G0816
€ 0.50
27
461F0800
ref: 27
WASHER-SPRING,8MM
461F0800
€ 0.50
28
920221561
ref: 28
8.5 X 20 X 1.6
WASHER,8.5X20X1.6
920221561
€ 2.50
29
32070033
ref: 29
BRACKET,AIR CLEANER
€ 1.00
30
920021197
ref: 30
BOLT,10X220
920021197
€ 14.50
31
92027228
ref: 31
COLLAR,10.5X24X26.5
92027228
€ 11.50
32
92003162
ref: 32
BOLT,HEX HEAD,10X292
€ 12.00
33
92025053
ref: 33
SHIM,T=0.5
92025053
€ 3.00
33
92025054
ref: 33
SHIM-ENG FIT FR,0.8MM
92025054
€ 2.50
33
92025055
ref: 33
SHIM-ENG FIT FR,1.0MM
92025055
€ 1.50
33
92025056
ref: 33
SHIM-ENG FIT FR,1.6MM
92025056
€ 1.00
33
92025057
ref: 33
SHIM,T=2.0
92025057
€ 2.50
33
92025058
ref: 33
SHIM,T=2.3
92025058
€ 2.50
34
92027250
ref: 34
COLLAR
92027250
€ 9.00
35
92027160
ref: 35
COLLAR,L=30.5
92027160
€ 7.00
36
32129008
ref: 36
BRACKET,BASE
€ 3.50
37
92075280
ref: 37
DAMPER
92075280
€ 3.00
38
32129009
ref: 38
BRACKET,BASE
€ 4.50
39
920011578
ref: 39
BOLT,FLANGED,8X40
920011578
€ 4.00
40
92027129
ref: 40
COLLAR,6.8X10X8.5
92027129
€ 3.00
41
92075076
ref: 41
DAMPER
92075076
€ 3.00
42
32030034
ref: 42
PLATE,ENG MOUNT,REAR
€ 7.00
43
115G0820
ref: 43
BOLT,8X20
115G0820
€ 2.00
44
115G0825
ref: 44
BOLT-HEX,HEAD,8X25
115G0825
€ 3.00
45
92075215
ref: 45
DAMPER,FUEL TANK
92075215
€ 9.50
46
32058049
ref: 46
BRACKET,IGNITON COIL
€ 7.50
47
92003208
ref: 47
BOLT,SPROCKET FITTING
92003208
€ 2.50
48
32097041
ref: 48
CASE,BATTERY
€ 27.50
49
92075078
ref: 49
DAMPER,RUBBER
92075078
€ 2.50
50
411B0600
ref: 50
WASHER-PLAIN,6MM
411B0600
€ 0.50
51
461F0600
ref: 51
WASHER-SPRING,6MM
461F0600
€ 0.50
52
112B0622
ref: 52
BOLT, 6X22
€ 2.50
53
92072074
ref: 53
BATTERY BAND
92072074
€ 10.00
54
32093010
ref: 54
BATTERY CASE BRACKET
€ 9.50
55
32098025
ref: 55
CASE,TOOL
€ 10.00
56
32129004
ref: 56
STD FOR S2; OPTIONAL
BRACKET,ELECT BASE
€ 3.00
57
32129010
ref: 57
BRACKET,BASE
32129010
€ 7.50
58
32122047
ref: 58
BRACKET,SIGNAL RELAY
€ 1.50
59
112B0614
ref: 59
BOLT-UPSET 6X14
112B0614
€ 2.50
60
220B0612
ref: 60
SCREW-PAN HEAD,6X12
220B0612
€ 1.00
