GEAR CHANGE MECHANISM ('75 S)

KZ400S3 SPECIAL 1977 USA CANADA

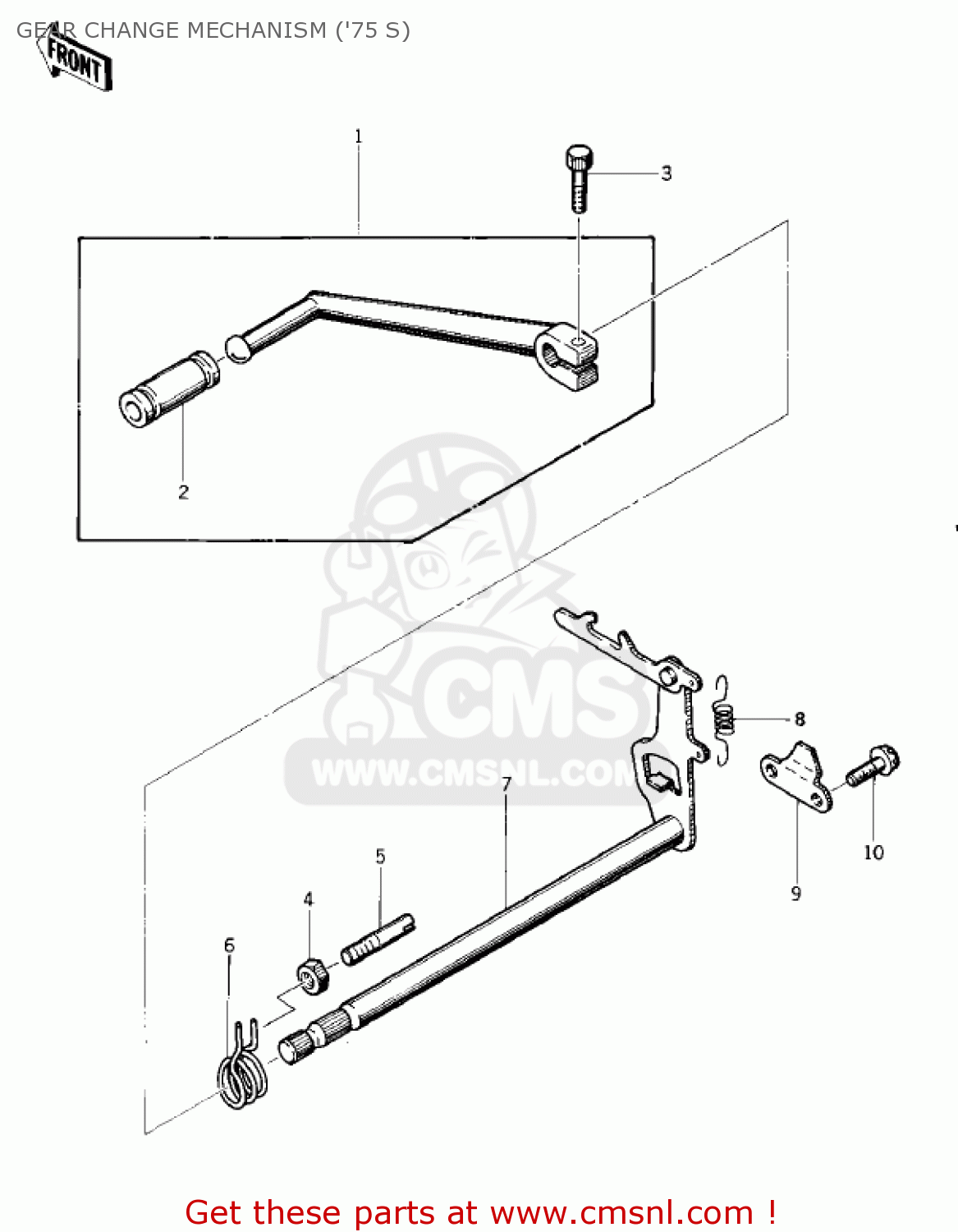

Gear change mechanism ('75 s) diagram KZ400S3 SPECIAL 1977 USA CANADA

prices are in EUR

ref

part #

description

quantity

13242017
ref: 1

LEVER-ASSY-CHANGE,PED

€ 36.00

13157004
ref: 2

RUBBER-CHANGE PEDAL

€ 4.00

112G0620
ref: 3

BOLT 6X20

€ 1.00

312B0800
ref: 4

NUT,8MM

€ 0.50

92043057
ref: 5

PIN-CHANGE PEDAL SPRG

€ 6.00

92083021
ref: 6

SPRING,CHG PEDL RTN

€ 10.00

13161034
ref: 7

LEVER ASY,GEAR SHIFT

€ 46.00

921441720
ref: 8

SPRING,CHANGE LEVER

€ 3.00

13169011
ref: 9

PLATE,SHIFT LEVER

€ 6.00

220B0616
ref: 10

SCREW-PAN HEAD,6X16

€ 2.50
