FENDERS ('76-'77 S2/S3)

KZ400S3 SPECIAL 1977 USA CANADA

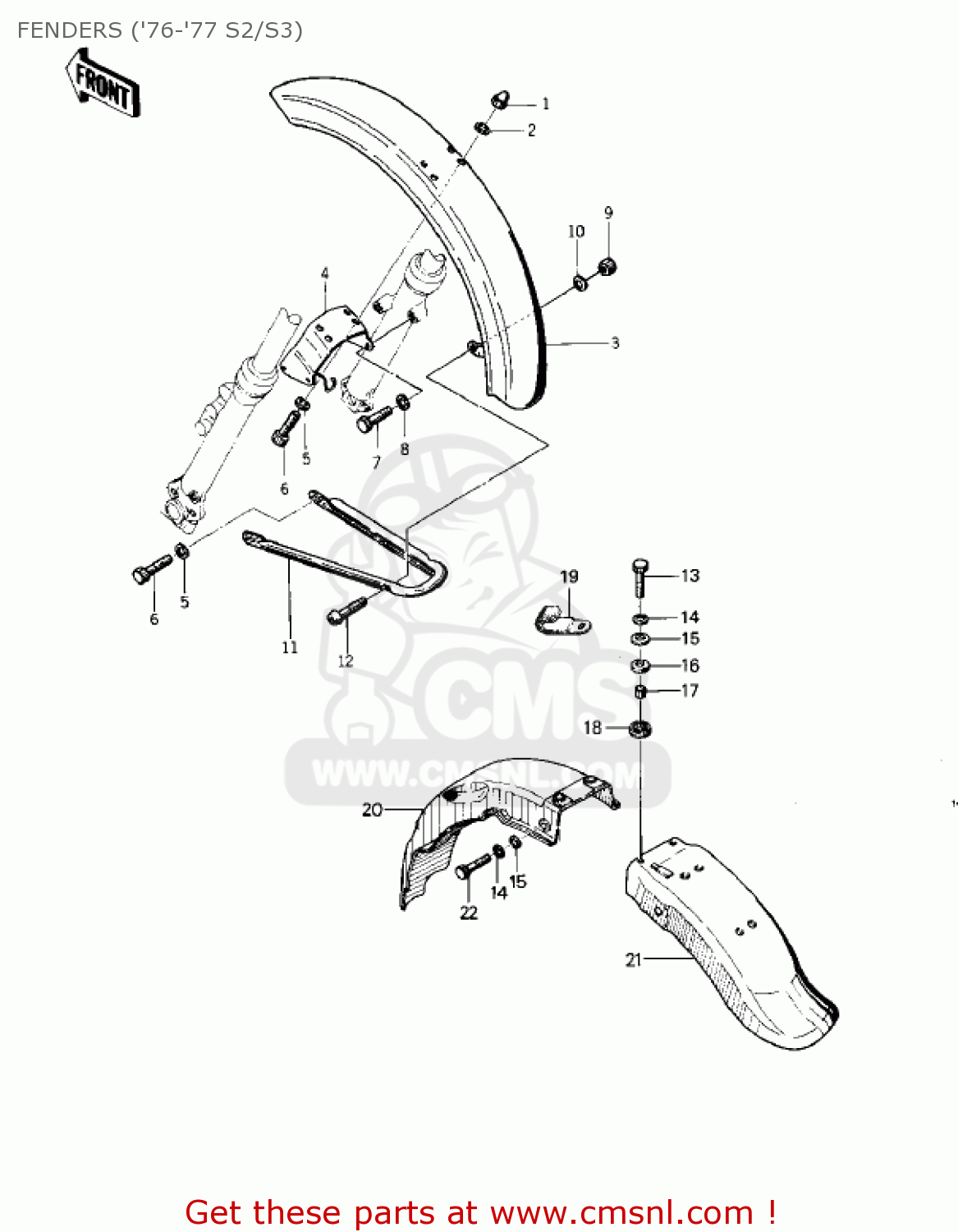

Fenders ('76-'77 s2/s3) diagram KZ400S3 SPECIAL 1977 USA CANADA

FENDERS ('76-'77 S2/S3) KZ400S3 SPECIAL 1977 USA CANADA

FENDERS ('76-'77 S2/S3) KZ400S3 SPECIAL 1977 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

92015009
ref: 1
KZ400-S2

NUT,6MM

€ 2.00

1

322N0600
ref: 1
KZ400-S3

NUT-CAP,6MM

€ 1.00

2

411B0600
ref: 2

WASHER-PLAIN,6MM

€ 0.50

3

350040951W
ref: 3

FRONT FENDER,MOONDUST SILVER

€ 272.00

4

350090351W
ref: 4

FRONT FENDER BRACE,MOONDUST SILVER

€ 67.50

5

461F0600
ref: 5

WASHER-SPRING,6MM

€ 0.50

6

112G0612
ref: 6

BOLT-UPSET

€ 2.50

7

115G0816
ref: 7

BOLT-HEX,HEAD 8X16

€ 0.50

8

461F0800
ref: 8

WASHER-SPRING,8MM

€ 0.50

9

311B0500A
ref: 9

NUT,5MM

€ 0.50

10

461F0500
ref: 10

WASHER-SPRING,5MM

€ 0.50

11

350100271W
ref: 11

FRONT FENDER STAY,MOONDUST SILVER

€ 49.50

12

220E0520
ref: 12

SCREW PAN HEAD 5X20

€ 1.50

13

112G0625
ref: 13

BOLT-UPSET,6X25

€ 4.00

14

461F0600
ref: 14

WASHER-SPRING,6MM

€ 0.50

15

92022228
ref: 15
OD=24

WASHER-PLAIN,7MM

€ 2.50

16

92075174
ref: 16

DAMPER,MALE

€ 3.00

17

92027162
ref: 17

COLLAR-REAR FENDER

€ 4.50

18

92075175
ref: 18

DAMPER,FEMALE

€ 2.50

19

21126008
ref: 19
F/NO. 04601 -

CLAMP,WIRING HARNESS

€ 3.00

20

35022138
ref: 20
FRONT

FENDER,REAR

€ 41.00

21

350221141W
ref: 21
REAR

REAR FENDER,MOONDUST SILVER

€ 208.50

22

112G0618
ref: 22

BOLT-UPSET

€ 0.50
