IGNITION ('75 S)
KZ400S3 SPECIAL 1977 USA CANADA

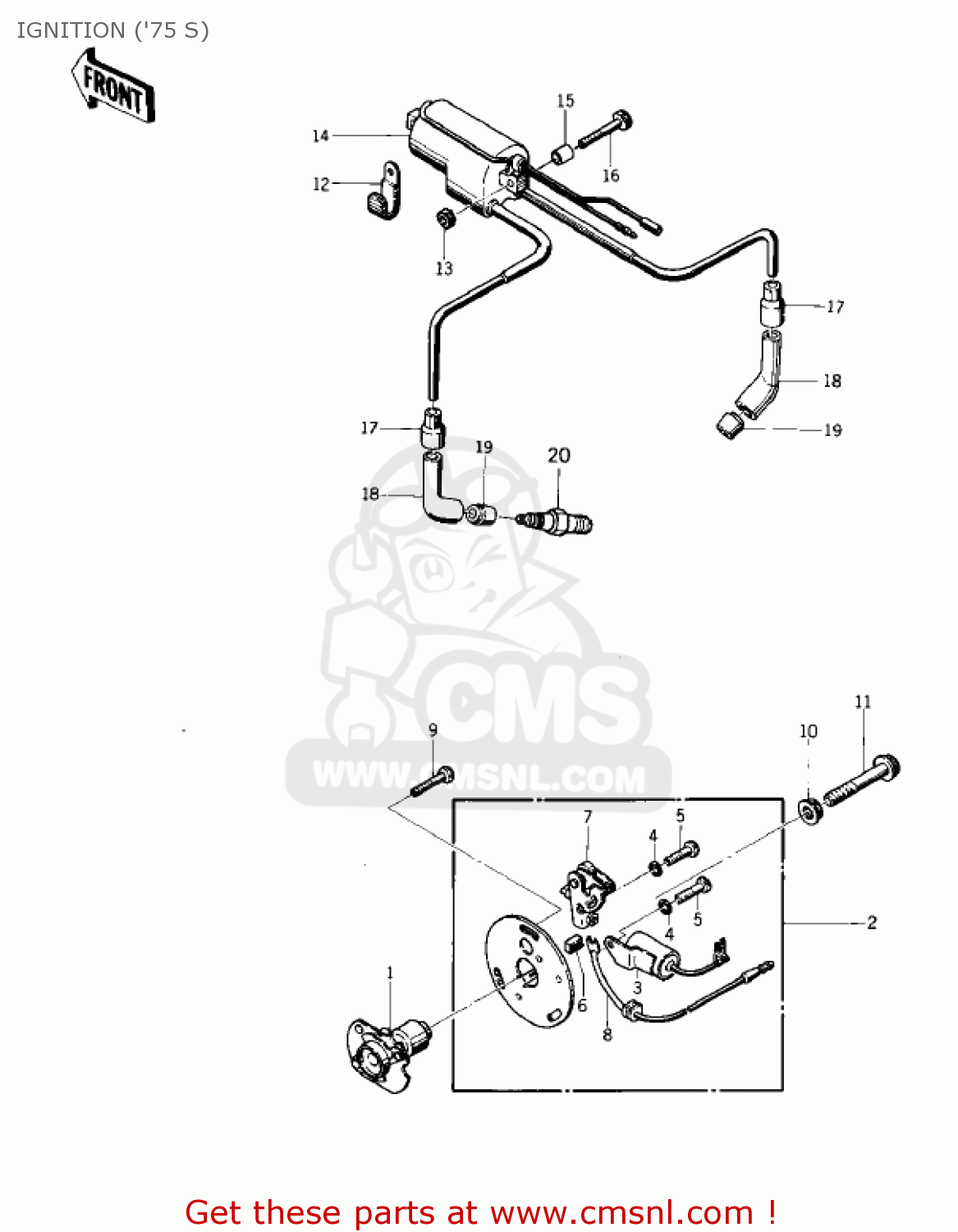

Ignition ('75 s) diagram KZ400S3 SPECIAL 1977 USA CANADA
IGNITION ('75 S) KZ400S3 SPECIAL 1977 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
21148006
ref: 1
ADVANCER,TIMING
€ 129.50
2
21135009
ref: 2
BREAKER ASSY,CONTACT
€ 51.50
3
21013034
ref: 3
CONDENSER
€ 20.00
4
461F0400
ref: 4
WASHER-SPRING,4MM
€ 0.50
5
220B0406
ref: 5
SCREW-PAN-CROS,4X6
€ 2.50
6
21019005
ref: 6
BRUSH,OIL
€ 3.00
7
21008025
ref: 7
BREAKER,CONTACT
€ 41.00
7
21008025
ref: 7
BREAKER,CONTACT
€ 41.00
8
21029029
ref: 8
WIRING HARNESS,BRKER
€ 22.00
9
220B0512
ref: 9
SCREW-PAN-CROS
€ 0.50
10
92022244
ref: 10
WASHER,BREAKER GOVERN
€ 9.50
11
920011397
ref: 11
BOLT,8X63
€ 1.50
11
920011397
ref: 11
BOLT,8X63
€ 1.50
12
21126008
ref: 12
CLAMP,WIRING HARNESS
€ 3.00
12
21126008
ref: 12
CLAMP,WIRING HARNESS
€ 3.00
13
311B0600
ref: 13
NOT REQ'D FOR 21121-
NUT,6MM
€ 0.50
14
211211174
ref: 14
COIL-IGNITION
€ 204.50
14
211211174
ref: 14
COIL-IGNITION
€ 204.50
15
92027276
ref: 15
7.1 X 10.5 X 24
COLLAR,IGNITION COIL
€ 4.00
15
92027276
ref: 15
7 X 10.5 X 24
COLLAR,IGNITION COIL
€ 4.00
16
92003170
ref: 16
BOLT,IGNITION COIL
€ 3.00
17
21132005
ref: 17
GROMMET,SPARK PLUG CP
€ 2.50
18
211301007
ref: 18
CAP-SPARK PLUG,RTFM20
€ 24.00
19
21131004
ref: 19
GROMMET,PLUG CAP
€ 7.00
20
B8ESA
ref: 20
NGK SPARK-PLUG B8ES
€ 3.00
20
B8ESA
ref: 20
NGK SPARK-PLUG B8ES
€ 3.00
20
W24ESUA
ref: 20
SPARK PLUG,W24ES-U
€ 1.50
