CARBURETOR ASSY (KZ400-S3)
KZ400S3 SPECIAL 1977 USA CANADA

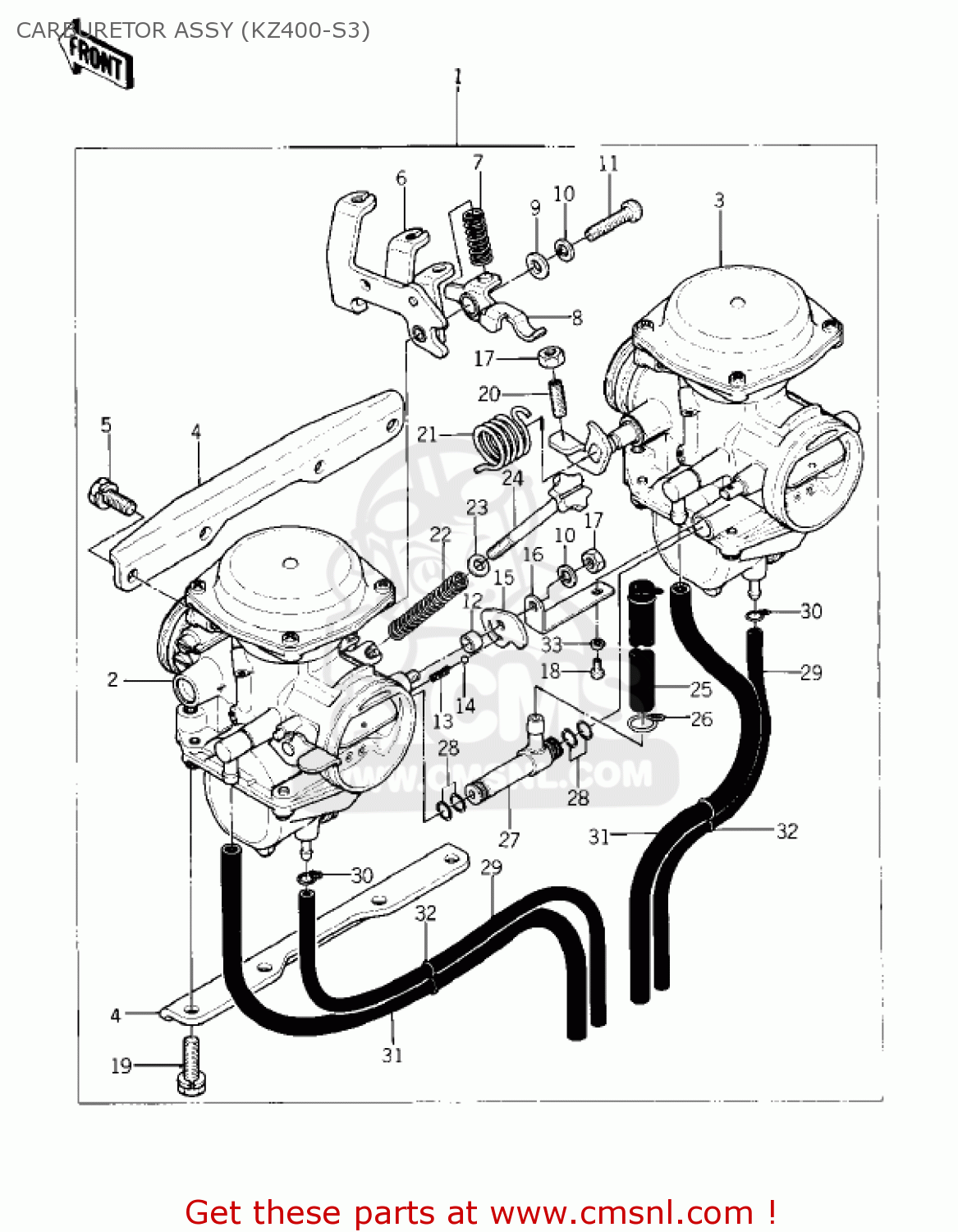

Carburetor assy (kz400-s3) diagram KZ400S3 SPECIAL 1977 USA CANADA
CARBURETOR ASSY (KZ400-S3) KZ400S3 SPECIAL 1977 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
16001300
ref: 1
CARBURETOR ASSY
€ 668.00
2
160011006
ref: 2
CARBURETOR, L.H.
€ 272.50
3
160011007
ref: 3
CARBURETOR, R.H.
€ 269.50
4
160651001
ref: 4
PLATE, STAY
€ 15.00
5
920091129
ref: 5
SCREW,6X16
€ 3.00
6
110341008
ref: 6
BRACKET,THR.CBL PULLY
€ 50.00
7
920811003
ref: 7
SPRING
€ 7.50
8
110341009
ref: 8
ROCKER ARM
€ 7.00
9
16039027
ref: 9
WASHER,PLAIN
€ 1.00
10
461F0500
ref: 10
WASHER-SPRING,5MM
€ 0.50
11
220B0525
ref: 11
SCREW-PAN-CROS,5X25
€ 2.50
12
160731001
ref: 12
COLLAR, CHOKE LEVER
€ 1.50
13
920811004
ref: 13
SPRING
€ 3.00
14
600A0400
ref: 14
BALL-STEEL,1/8
€ 2.00
15
131691007
ref: 15
CAM, CHOKE LINK
€ 2.50
16
110341010
ref: 16
BRACKET, CHOKE LEVER
€ 3.00
17
311B0500
ref: 17
NUT-HEX
€ 0.50
18
220B0306
ref: 18
SCREW-PAN-CROS
€ 0.50
19
920091006
ref: 19
BOLT, HEX HEAD, 6X22
€ 3.00
20
160211002
ref: 20
SCREW, SLOTTED
€ 1.50
21
920811006
ref: 21
SPRING
€ 4.00
22
920811005
ref: 22
SPRING,THR.STOP SCREW
€ 8.50
23
410B0500
ref: 23
WASHER-PLAIN-SMALL,5M
€ 0.50
24
160211001
ref: 24
SCREW, THROTTLE STOP
€ 14.50
25
920591001
ref: 25
HOSE, FUEL INLET
€ 13.50
26
920371040
ref: 26
CLAMP,FUEL HOSE
€ 2.00
27
16046013
ref: 27
NIPPLE, FUEL HOSE
€ 15.00
28
920551004
ref: 28
O RING
€ 2.50
29
92059111
ref: 29
HOSE,FUEL OVERFLOW
€ 17.50
30
920371142
ref: 30
CLAMP,TUBE
€ 2.50
31
92059110
ref: 31
HOSE
€ 11.50
32
16044002
ref: 32
CLAMP,OVERFLOW HOSE
€ 1.00
33
461F0300
ref: 33
WASHER-SPRING,3MM
€ 0.50
