HEADLIGHT ('75 S)
KZ400S3 SPECIAL 1977 USA CANADA

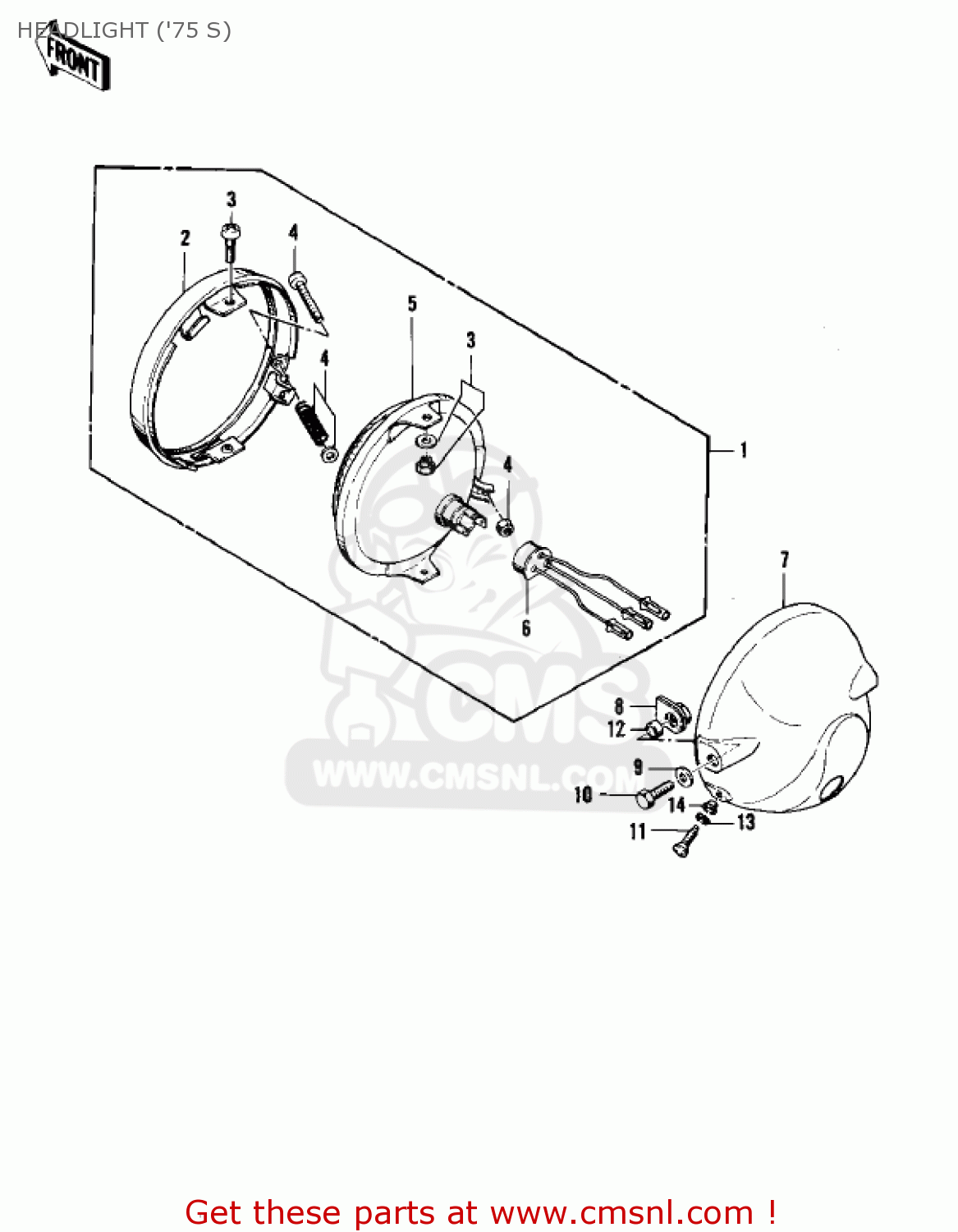

Headlight ('75 s) diagram KZ400S3 SPECIAL 1977 USA CANADA
HEADLIGHT ('75 S) KZ400S3 SPECIAL 1977 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
23003022
ref: 1
LAMP-HEAD
€ 332.50
2
23006044
ref: 2
RIM-LAMP
€ 65.50
3
23013009
ref: 3
LENS UNIT SCREW ASSEMBLY
€ 28.50
4
23013008
ref: 4
FOCUS ADJUSTING SCREW ASSEMBLY
€ 37.50
5
23007059
ref: 5
LENS-COMP,001-1269 MA
€ 75.00
6
23008037
ref: 6
SOCKET-ASSY,HEAD LAMP
€ 12.50
7
230050472K
ref: 7
BODY,HEAD LIGHT,RED
€ 65.50
8
23020021
ref: 8
NUT,10MM
€ 4.00
9
411B1000
ref: 9
WASHER-PLAIN,10MM
€ 0.50
10
92007045
ref: 10
BOLT, HEX HEAD, 10X25
€ 6.00
11
92011024
ref: 11
SCREW-PAN HEAD,5MM
€ 2.00
12
92027231
ref: 12
COLLAR,10.2X13.4X8.1
€ 4.50
13
461F0500
ref: 13
WASHER-SPRING,5MM
€ 0.50
14
23021010
ref: 14
WASHER
€ 2.50
