METERS/IGNITION SWITCH ('75 S)

KZ400S3 SPECIAL 1977 USA CANADA

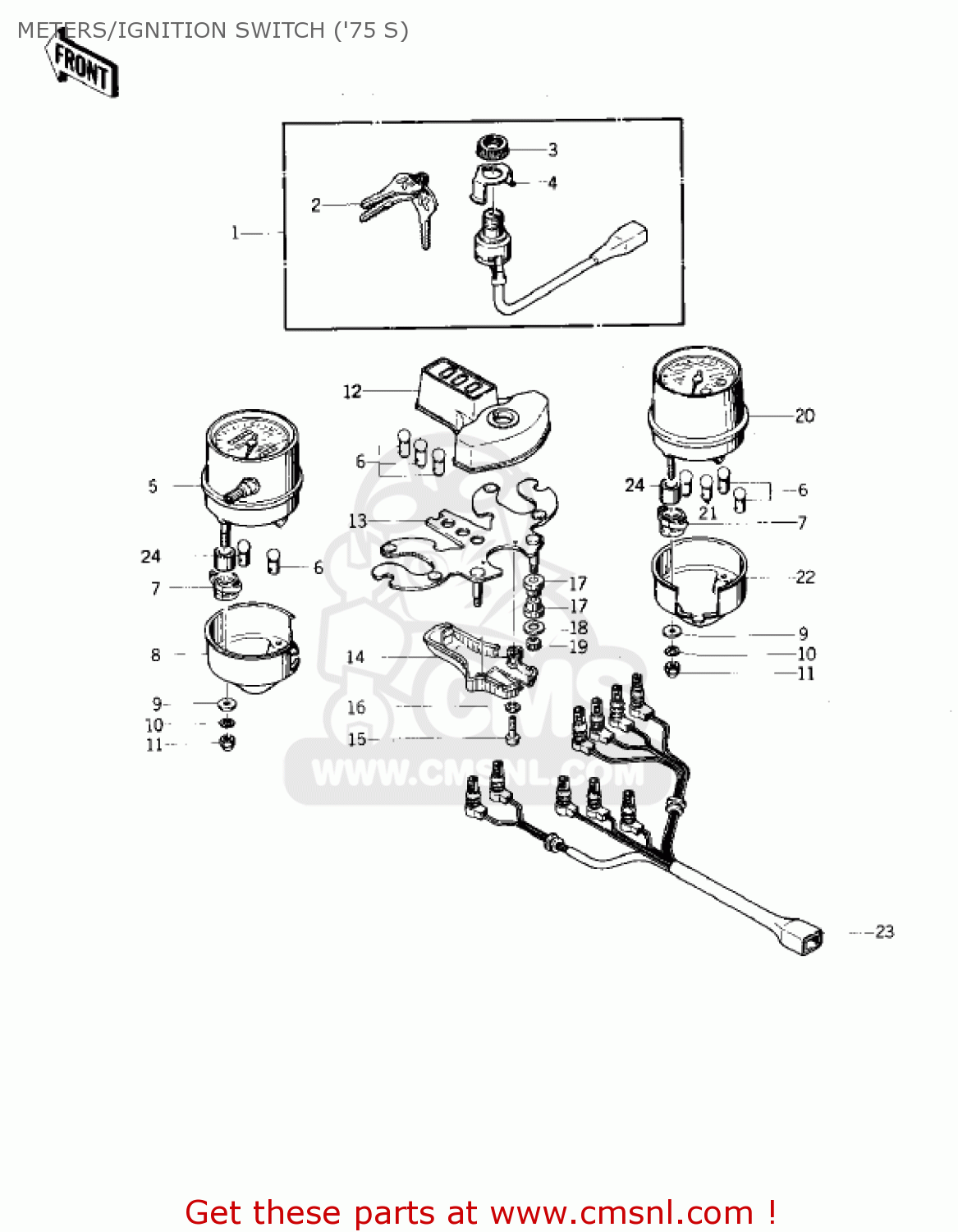

Meters/ignition switch ('75 s) diagram KZ400S3 SPECIAL 1977 USA CANADA

METERS/IGNITION SWITCH ('75 S) KZ400S3 SPECIAL 1977 USA CANADA

METERS/IGNITION SWITCH ('75 S) KZ400S3 SPECIAL 1977 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

27005075
ref: 1

SWITCH ASSY,IGNITION

€ 128.50

2

2700806471
ref: 2

KEY SET,#771

€ 19.50

2

2700806472
ref: 2

KEY SET,#772

€ 8.00

2

2700806473
ref: 2

KEY SET,#773

€ 19.50

2

2700806474
ref: 2

KEY SET,#774

€ 19.50

2

2700806475
ref: 2

KEY SET,#775

€ 21.00

2

2700806476
ref: 2

KEY SET,#776

€ 13.50

2

2700806477
ref: 2

KEY SET,#777

€ 19.50

2

2700806478
ref: 2

KEY SET,#778

€ 8.00

2

2700806479
ref: 2

KEY SET,#779

€ 19.50

2

2700806480
ref: 2

KEY SET,#780

€ 19.50

2

270081013
ref: 2

KEY-LOCK,BLANK

€ 12.00

3

27007004
ref: 3

NUT,IGNITION SWITCH

€ 8.00

4

27019004
ref: 4

HOLDER,IGNITION SW

€ 6.50

5

25005126
ref: 5

SPEEDOMETER ASSY,MPH

€ 114.50

5

25005127
ref: 5

SPEEDOMETER ASSY,KPH

€ 167.50

6

92069018
ref: 6

BULB 12V 3W

€ 4.00

7

92075268
ref: 7

DAMPER RUBBER, METER

€ 2.50

8

25012020
ref: 8

COVER,SPEEDOMETER

€ 40.00

9

411B0500
ref: 9

WASHER-PLAIN,5MM

€ 0.50

10

461F0500
ref: 10

WASHER-SPRING,5MM

€ 0.50

11

322N0500
ref: 11

NUT-CAP,5MM

€ 2.00

12

25023013
ref: 12

COVER,INDCATOR LIGHT

€ 29.50

13

25008037
ref: 13

BRACKET,METER

€ 21.50

14

25024005
ref: 14

COVER,METER BRACKET

€ 6.00

15

220B0412
ref: 15

SCREW-PAN CROS 4X12

€ 0.50

1

461F0400
ref: 1

WASHER-SPRING,4MM

€ 0.50

17

92075257
ref: 17

DAMPER RUBBER

€ 3.00

18

92022284
ref: 18

WASHER,PLAIN,6MM

€ 2.50

19

311B0600
ref: 19

NUT,6MM

€ 0.50

20

25016027
ref: 20

TACHOMETER ASSY

€ 181.00

21

92069017
ref: 21

BULB 12V 1.5W

€ 4.00

22

25012019
ref: 22

COVER,TACHOMETER

€ 27.50

23

25011047
ref: 23

SOCKET,SPEED-TACHO

€ 44.50

24

92027244
ref: 24

COLLAR

€ 2.50
