TRANSMISSION/CHARGE DRUM ('76-'7

KZ400S2 SPECIAL 1976 USA CANADA

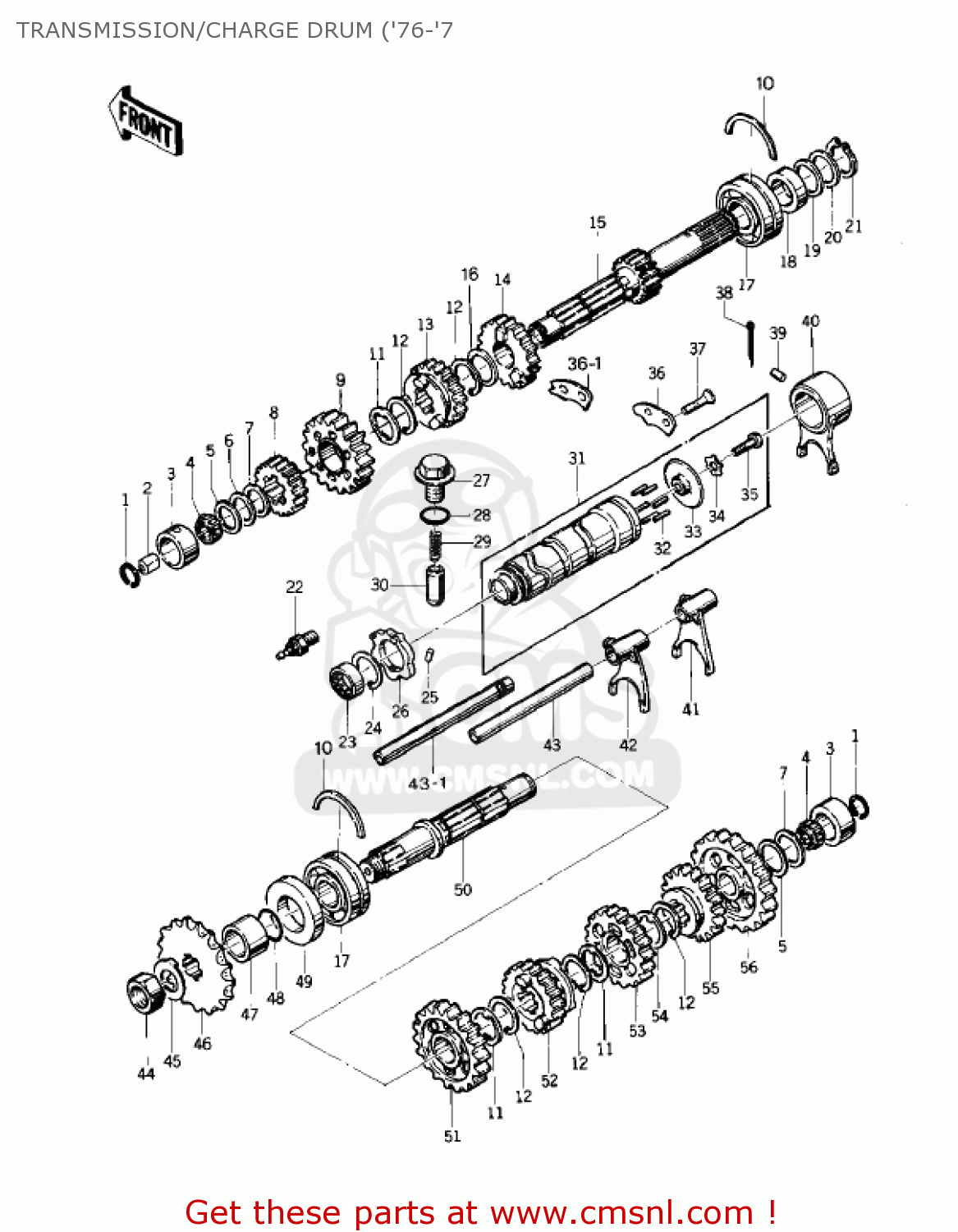

Transmission/charge drum ('76-'7 diagram KZ400S2 SPECIAL 1976 USA CANADA

TRANSMISSION/CHARGE DRUM ('76-'7 KZ400S2 SPECIAL 1976 USA CANADA
TRANSMISSION/CHARGE DRUM ('76-'7 KZ400S2 SPECIAL 1976 USA CANADA
TRANSMISSION/CHARGE DRUM ('76-'7 KZ400S2 SPECIAL 1976 USA CANADA
prices are in EUR
ref
part #
description
quantity
1
92033015
ref: 1
CIRCLIP
92033015
€ 2.50
2
92028155
ref: 2
BUSHING,DRIVE SHAFT
92028155
€ 9.50
3
92028170
ref: 3
BUSHING,OUTPUT-DRIVE
92028170
€ 6.50
4
92046044
ref: 4
BEARING-NEEDLE,20R251
92046044
€ 23.00
5
92022112
ref: 5
STEEL
WASHER,20.5X30X1,STEE
92022112
€ 6.00
6
92022113
ref: 6
PHOSPHOR-BRONZE
WASHER,20.5X30X1
92022113
€ 6.00
7
92022144
ref: 7
STEEL
SHIM-KICK SHAFT
92022144
€ 4.50
8
13130038
ref: 8
2ND GEAR,DRIVE SHAFT
13130038
€ 44.00
9
13136058
ref: 9
INCL BUSHING
UNAVAILABLE IN PRICE BOOK
€ 0.00
10
14013004
ref: 10
RING-BEARING SETTING
14013004
€ 7.00
11
92024038
ref: 11
WASHER-LOCK
92024038
€ 4.00
12
92033026
ref: 12
CIRCLIP
92033026
€ 6.00
13
13132037
ref: 13
3RD GEAR,DRIVE SHAFT
13132037
€ 52.00
14
13134021
ref: 14
4TH GEAR,DRIVE SHAFT
13134021
€ 39.00
15
13127047
ref: 15
SHAFT,DRIVE
13127047
€ 93.00
16
92022225
ref: 16
WASHER-THRUST
92022225
€ 3.50
17
92045031
ref: 17
BEARING-BALL,5205ANX4
92045031
€ 49.50
18
92027289
ref: 18
KZ400-S2
COLLAR
€ 10.00
18
92027289
ref: 18
KZ400-S3
COLLAR
€ 10.00
19
92022225
ref: 19
SELECTIVE USE
WASHER-THRUST
92022225
€ 3.50
20
92022302
ref: 20
SELECTIVE USE
WASHER,CLUTCH THRUST
€ 3.50
21
92033026
ref: 21
CIRCLIP
92033026
€ 6.00
22
131515002
ref: 22
SWITCH,NEUTRAL
131515002
€ 22.50
23
92046039
ref: 23
BRG,N,24BTM3010A
92046039
€ 10.00
24
480J3000
ref: 24
CIRCLIP-TYPE-C,30MM
480J3000
€ 3.50
25
610A0406
ref: 25
ROLLER,4X6
610A0406
€ 2.50
26
131451058
ref: 26
CAM-CHANGE DRUM
131451058
€ 15.00
27
92001147
ref: 27
BOLT,NEUTRAL POSITON
92001147
€ 9.50
28
92055078
ref: 28
RING-O
92055078
€ 4.00
29
92081112
ref: 29
SPRING
92081112
€ 4.00
30
92043076
ref: 30
PIN-NEUTRAL PISTON
92043076
€ 8.00
31
13239014
ref: 31
DRUM ASY,GEAR SHIFT
€ 82.50
32
92042014
ref: 32
PIN-GEAR CHANGE DRUM
92042014
€ 0.50
33
13142016
ref: 33
PLATE,SHIFT DRUM PIN
13142016
€ 26.00
34
464G0600
ref: 34
WASHER-TOOTHED,6MM
464G0600
€ 2.50
35
220B0614
ref: 35
SCREW-PAN HEAD,6X14
220B0614
€ 2.00
36
13169010
ref: 36
KZ400-S2
PLATE,SHIFT DRUM PSTN
13169010
€ 8.50
36-1
140141001
ref: 36-1
KZ400-S3
PLATE,SFT DRUM POSTON
€ 8.50
36-1
131691121
ref: 36-1
0.2 MM OFFSET
PLATE,DRUM POSITION
131691121
€ 4.00
37
212B0616
ref: 37
SCREW-CNTSNK HD,6X16
€ 2.00
38
550D3020
ref: 38
PIN-COTTER,3.0X20
550D3020
€ 2.00
39
92042021
ref: 39
PIN,DOWEL,8X18
92042021
€ 7.00
40
13140068
ref: 40
SHIFT FORK,4TH-TOP
13140068
€ 49.00
41
13140066
ref: 41
SHIFT FORK,LOW
13140066
€ 41.50
42
13140067
ref: 42
SHIFT FORK,2ND-3RD
13140067
€ 38.50
43
13209018
ref: 43
- E/NO. 012410
ROD,SHIFT
13209018
€ 7.00
43-1
13209020
ref: 43-1
E/NO. 012411 - (S2)
ROD, SHIFT
€ 7.00
43-1
13209022
ref: 43-1
KZ400-S3
ROD,SHIFT
13209022
€ 8.00
44
92016028
ref: 44
NUT
92016028
€ 9.50
45
92024044
ref: 45
WASHER,CLAW,20.5X36X1
92024044
€ 8.00
46
131441002
ref: 46
ENGINE SPROCKET 15T
131441002
€ 26.50
47
92027288
ref: 47
KZ400-S2
COLLAR,25X32X23.5
92027288
€ 22.50
47
92027288
ref: 47
KZ400-S3
COLLAR,25X32X23.5
92027288
€ 22.50
48
92055035
ref: 48
O RING
92055035
€ 3.00
49
92050024
ref: 49
OIL SEAL SC325210
92050024
€ 5.00
50
13128042
ref: 50
SHAFT,OUTPUT
€ 77.00
51
13131045
ref: 51
2ND GEAR,OUTPUT SHAFT
13131045
€ 38.50
52
13137031
ref: 52
TOP GEAR,OUTPUT SHFT
€ 52.50
53
13133037
ref: 53
3RD GEAR,OUTPUT SHFT
13133037
€ 41.00
54
92024033
ref: 54
WASHER,TOOTHED,25.5X3
92024033
€ 4.50
55
13135026
ref: 55
4TH GEAR,OUTPUT SHFT
13135026
€ 38.00
56
13129053
ref: 56
LOW GEAR,OUTPUT SHFT
13129053
€ 46.50
