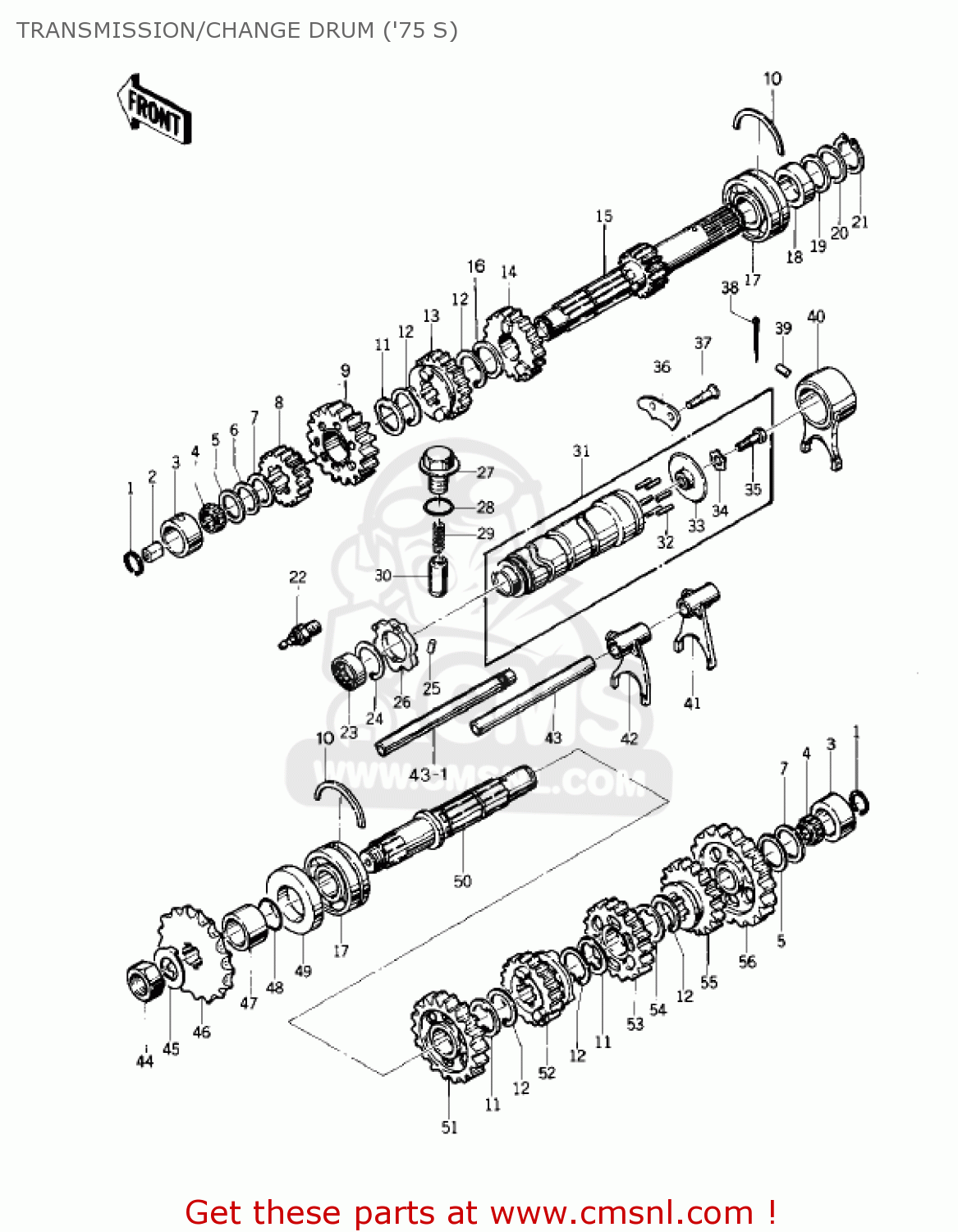

TRANSMISSION/CHANGE DRUM ('75 S)

ref

part #

description

quantity

1

92033015
ref: 1

CIRCLIP

€ 2.50

2

92028155
ref: 2

BUSHING,DRIVE SHAFT

€ 9.50

3

92028170
ref: 3

BUSHING,OUTPUT-DRIVE

€ 6.50

4

92046044
ref: 4

BEARING-NEEDLE,20R251

€ 23.00

5

92022112
ref: 5
STEEL

WASHER,20.5X30X1,STEE

€ 6.00

6

92022113
ref: 6
PHOSPHOR-BRONZE

WASHER,20.5X30X1

€ 6.00

7

92022144
ref: 7
STEEL

SHIM-KICK SHAFT

€ 4.50

8

13130038
ref: 8

2ND GEAR,DRIVE SHAFT

€ 44.00

9

13136056
ref: 9
INCL BUSHING

TOP GEAR,DRIVE SHAFT

€ 44.00

10

14013004
ref: 10

RING-BEARING SETTING

€ 7.00

11

92024038
ref: 11

WASHER-LOCK

€ 4.00

12

92033026
ref: 12

CIRCLIP

€ 6.00

13

13132037
ref: 13

3RD GEAR,DRIVE SHAFT

€ 52.00

14

13134021
ref: 14

4TH GEAR,DRIVE SHAFT

€ 39.00

15

13127047
ref: 15

SHAFT,DRIVE

€ 93.00

16

92022225
ref: 16

WASHER-THRUST

€ 3.50

17

92045031
ref: 17

BEARING-BALL,5205ANX4

€ 49.50

18

92027289
ref: 18

COLLAR

€ 10.00

19

92022225
ref: 19
SELECTIVE USE

WASHER-THRUST

€ 3.50

20

92022302
ref: 20
SELECTIVE USE

WASHER,CLUTCH THRUST

€ 3.50

21

92033026
ref: 21

CIRCLIP

€ 6.00

22

131515002
ref: 22

SWITCH,NEUTRAL

€ 22.50

23

92046039
ref: 23

BRG,N,24BTM3010A

€ 10.00

24

480J3000
ref: 24

CIRCLIP-TYPE-C,30MM

€ 3.50

25

610A0406
ref: 25

ROLLER,4X6

€ 2.50

26

131451058
ref: 26

CAM-CHANGE DRUM

€ 15.00

27

92001147
ref: 27

BOLT,NEUTRAL POSITON

€ 9.50

28

92081112
ref: 28

SPRING

€ 4.00

29

92081112
ref: 29

SPRING

€ 4.00

30

92043076
ref: 30

PIN-NEUTRAL PISTON

€ 8.00

31

13239014
ref: 31

DRUM ASY,GEAR SHIFT

€ 82.50

32

92042014
ref: 32

PIN-GEAR CHANGE DRUM

€ 0.50

33

13142016
ref: 33

PLATE,SHIFT DRUM PIN

€ 26.00

34

464G0600
ref: 34

WASHER-TOOTHED,6MM

€ 2.50

35

220B0614
ref: 35

SCREW-PAN HEAD,6X14

€ 2.00

36

13169010
ref: 36

PLATE,SHIFT DRUM PSTN

€ 8.50

37

212B0616
ref: 37

SCREW-CNTSNK HD,6X16

€ 2.00

38

550D3020
ref: 38

PIN-COTTER,3.0X20

€ 2.00

39

92042021
ref: 39

PIN,DOWEL,8X18

€ 7.00

40

13140068
ref: 40

SHIFT FORK,4TH-TOP

€ 49.00

41

13140066
ref: 41

SHIFT FORK,LOW

€ 41.50

42

13140067
ref: 42

SHIFT FORK,2ND-3RD

€ 38.50

43

13209018
ref: 43
- E/NO. 012410

ROD,SHIFT

€ 7.00

43-1

13209020
ref: 43-1
E/NO 012411 -

ROD, SHIFT

€ 7.00

44

92016028
ref: 44

NUT

€ 9.50

45

92024044
ref: 45

WASHER,CLAW,20.5X36X1

€ 8.00

46

131441002
ref: 46

ENGINE SPROCKET 15T

€ 26.50

47

92027288
ref: 47

COLLAR,25X32X23.5

€ 22.50

48

92055035
ref: 48

O RING

€ 3.00

49

92050024
ref: 49

OIL SEAL SC325210

€ 5.00

50

13128042
ref: 50

SHAFT,OUTPUT

€ 77.00

51

13131045
ref: 51

2ND GEAR,OUTPUT SHAFT

€ 38.50

52

13137031
ref: 52

TOP GEAR,OUTPUT SHFT

€ 52.50

53

13133037
ref: 53

3RD GEAR,OUTPUT SHFT

€ 41.00

54

92024033
ref: 54

WASHER,TOOTHED,25.5X3

€ 4.50

55

13135026
ref: 55

4TH GEAR,OUTPUT SHFT

€ 38.00

56

13129053
ref: 56

LOW GEAR,OUTPUT SHFT

€ 46.50
