REAR HUB/BRAKE/CHAIN ('76-'77 S2

KZ400S2 SPECIAL 1976 USA CANADA

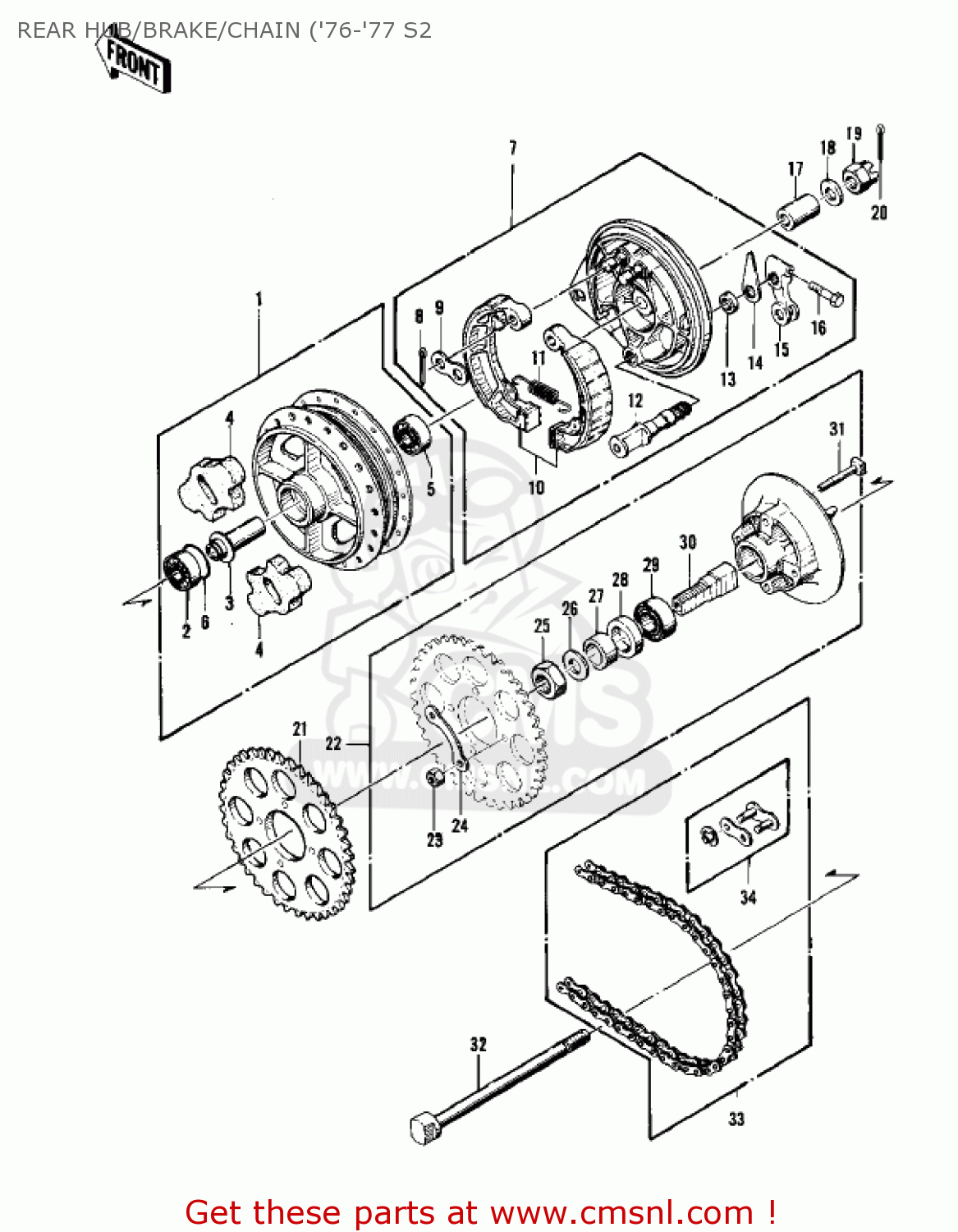

Rear hub/brake/chain ('76-'77 s2 diagram KZ400S2 SPECIAL 1976 USA CANADA

REAR HUB/BRAKE/CHAIN ('76-'77 S2 KZ400S2 SPECIAL 1976 USA CANADA

REAR HUB/BRAKE/CHAIN ('76-'77 S2 KZ400S2 SPECIAL 1976 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

4200504480
ref: 1
BUFF FINISH

DRUM ASY,RR BRK,BUFF

€ 447.00

2

601B6303
ref: 2

BEARING-BALL,#6303C3

€ 24.00

3

42010027
ref: 3

SPACER,RR HUB BEARNG

€ 14.50

4

42014008
ref: 4

DAMPER,RR HUB SHOCK

€ 24.50

5

601B6303Z
ref: 5

BEARING-BALL,#6303ZC3

€ 17.50

6

671B2560
ref: 6

O RING,60MM

€ 1.50

7

4200605580
ref: 7
BUFF FINISH

PANEL ASY,RR BR,BUFF

€ 223.00

8

550D2025
ref: 8

PIN-COTTER,2.0X25

€ 2.00

9

41045007
ref: 9

WASHER,BRAKE SHOE

€ 4.00

10

42019003
ref: 10

SHOE-REAR BRAKE (MCA)

€ 24.50

11

41049003
ref: 11

SPRING-BRAKE SHOE

€ 2.50

12

42026024
ref: 12

CAM SHAFT,REAR BRAKE

€ 15.50

13

41051001
ref: 13

DUST SHIELD-BRAKE CAM

€ 2.50

14

41085016
ref: 14

INDICATOR,RR BK SHOE

€ 3.50

15

42029036
ref: 15

LEVER,REAR BRAKE CAM

€ 38.50

16

115G0825
ref: 16

BOLT-HEX,HEAD,8X25

€ 3.00

17

42032053
ref: 17

COLLAR,REAR AXLE

€ 23.50

18

42046009
ref: 18

WASHER-SLEEVE

€ 5.00

19

92015055
ref: 19

NUT,16MM

€ 8.00

20

550D4035
ref: 20

PIN-COTTER,4.0X35

€ 1.00

21

42041145
ref: 21

REAR SPROCKET,45T

€ 82.00

22

42008024
ref: 22

COUPLING ASSY,RR HUB

€ 114.50

23

314B1000
ref: 23

NUT,10MM

€ 0.50

24

92088005
ref: 24

WASHER,SPROCKET LOCK

€ 4.00

25

42025006
ref: 25

UNAVAILABLE IN PRICE BOOK

€ 0.00

26

92022293
ref: 26

WASHER,PLAIN,24MM

€ 3.00

27

42037026
ref: 27

COLLAR,RR HUB COUPLN

€ 10.00

28

92052006
ref: 28

OIL SEAL WTC35527

€ 6.50

29

601B6205
ref: 29

BEARING-BALL,#6205C3

€ 14.00

30

42036021
ref: 30

SLEEVE,RR HUB COUPLN

€ 30.00

31

92003156
ref: 31

BOLT,RR SPROCKET FIT

€ 6.50

32

42031050
ref: 32

AXLE,REAR

€ 33.50

33

92057092
ref: 33
EK530SSH

CHAIN ASY,DRIVE,100L

€ 45.00

34

92058008
ref: 34

JOINT-CHAIN

€ 4.00
